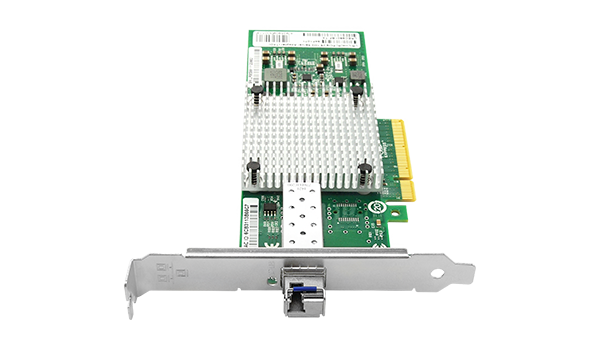

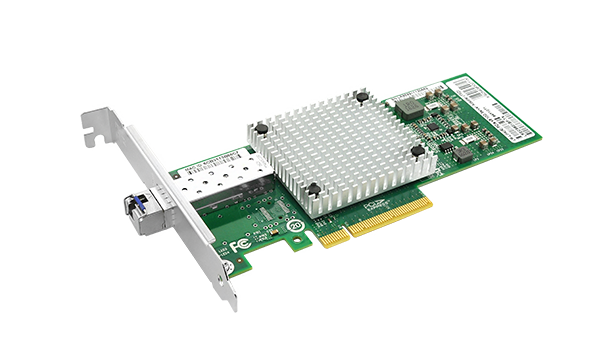

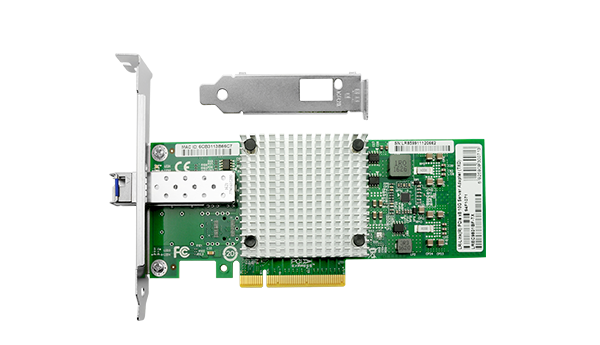

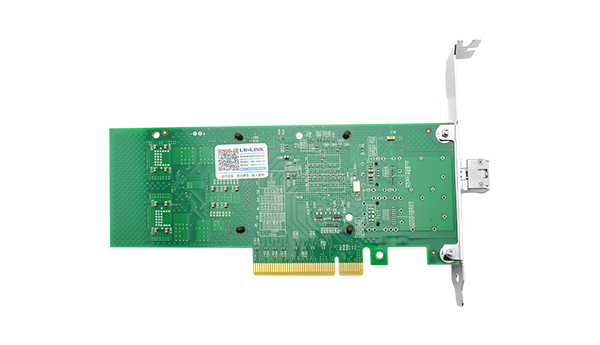

LREC9801BF-TX -RX

PCIe 2.0 x8 | Intel 82599 | 10G | SFP+ | Single-port

LREC9801BF-TX -RX

PCIe x8 10G Uni-directional Fiber Server Adapter ()

One-way 10 Gigabit adapters
PCI Express (PCIe) v2.0, 5 GT/s, x8 lanes
Single LC Connectivity
PXE boot
Network Virtualization
Data Plane Development Kit (DPDK) support
Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
Low profile and full-height bracket
Overview

LREC9801BF-TX/RX 10 Gigabit one-way Transmission Fiber Server Adapters are composed by Transmit network card and receive network card, connecting by one-way LC fiber patch cord. They are the most flexible and scalable Ethernet adapters to meet the demands of data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.


Specifications

Controller

Intel 82599

Transmission Rate Per Port

10G

Network Standard Physical Layer Interfaces

10GBASE-LR 10GbE SFP+ DAC

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 55 °C (32 °F to 131 °F)

Network Virtualization

VXLAN, MACinUDP, NVGRE, IPinGRE

LED Indicators

Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 R2

Linux Stable Kernel version 2.6.32/3.x/4.x or later


<span color:#7030a0;"="" style="font-size: 12px">VMvare ESX/ESXi 4.x/5.x/6.x or later



Driver
File name For OS Version Upload time Downlaod
ix-3.3.38.tar.gz FreeBSD 3.3.38 2024-08-15
ixgbe-5.20.10.tar.gz Linux 5.20.10 2024-08-15
Release_28.2.zip OS Independent v28.2 2024-07-19
