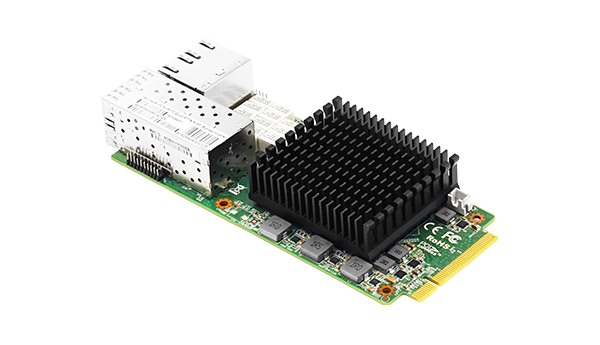

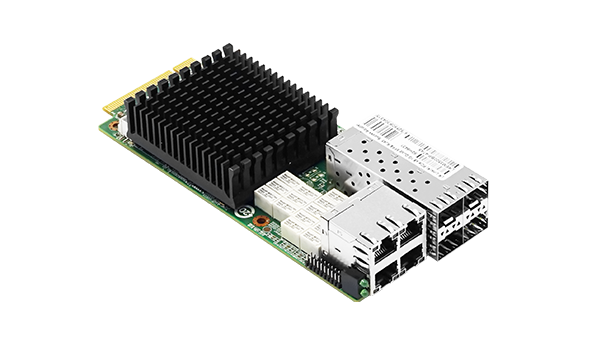

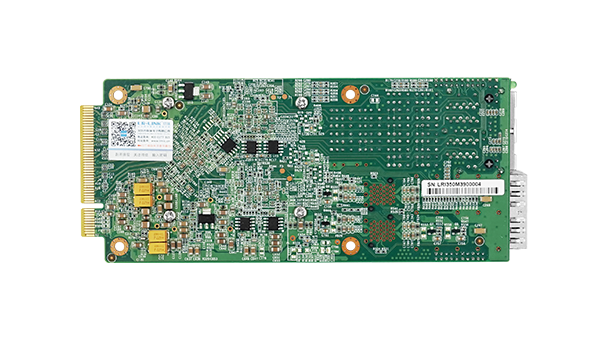

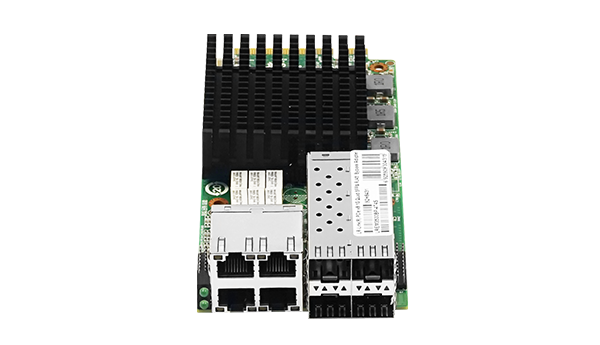

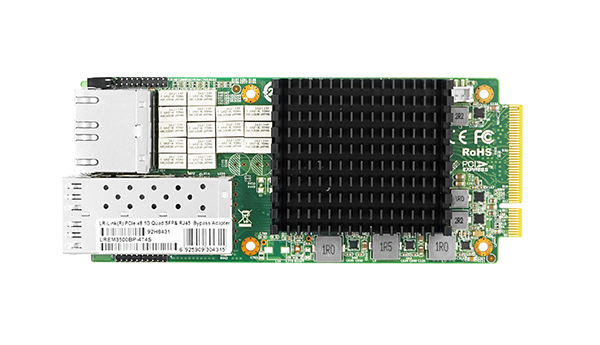

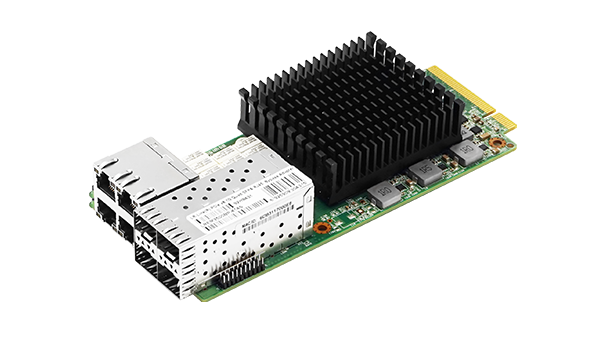

PCIe x8 Quad-port SFP and SFP+ bypass sandwich Ethernet network adapter (based on Intel I350)

LREM3500BP-4S4T is a PCI Express x8 four electric four optical sandwich gigabit bypass Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of Intel I350 master control scheme. It supports four electrical ports at the same time and can also be used by four optical ports on the same board. It can be widely used in data transmission such as firewall, gateway, data monitoring, etc, Adapt to 24x7 non-stop operation.Intel I350 master control chip is adopted, which has a wide range of system compatibility and stability. Each network port has an independent gigabit channel network port, which works independently of each other.

It supports 10/100/1000M speed transmission at the application site. In gigabit Ethernet connection, four gigabit ports can work in full duplex mode at the same time, and four network ports can be converged to increase network traffic bandwidth or any network port can be converged. PCI Express channel resources can be saved in the space of 1U chassis.

Support the safe transmission of gigabit optical fiber on the application site. In gigabit Ethernet connection, eight gigabit optical fiber ports can work in full duplex mode at the same time, and four network ports can be converged to increase network traffic bandwidth or any network port can be converged. PCI Express channel resources can be saved in the space of 1U chassis.
