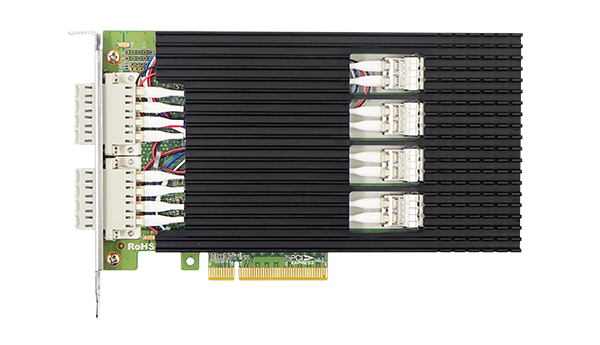

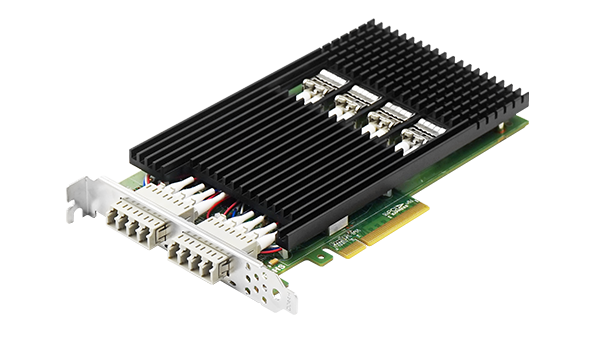

PCIe x8 Quad-port 10G Single mode LR Dual-way Bypass Ethernet network adapter ( Intel XL710)

LRES8003PF-BP-LR is a PCIe v3.0 x8 Quad-port 10G dual-way Bypass ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel XL710. LRES8003PF-BP -LR has four fully integrated 10 Gigabit ethernet media access controller ports. In addition to the function of managing the ethernet MAC and PHY layers, it can also perform traffic management on the passing data packets. The controller can share tasks for the server host through hardware acceleration, such as TCP/UDP/IP verification, offloading, computing tasks, and TCP segmentation.

LRES8003PF-BP-LR adopts Intel's main controller with wide compatibility and performance guarantee, which can realize high-efficiency work and bypass work of conventional quad-port 10G ethernet.

It can be widely used on high-throughput gateways, firewalls and other network devices. In actual operation, it can be used in combination with program queues to reduce application delay and improve throughput.
