PCIe 2.0 x4 | Intel Chipset | 1G | RJ45 | Dual-port

LRES9702ET

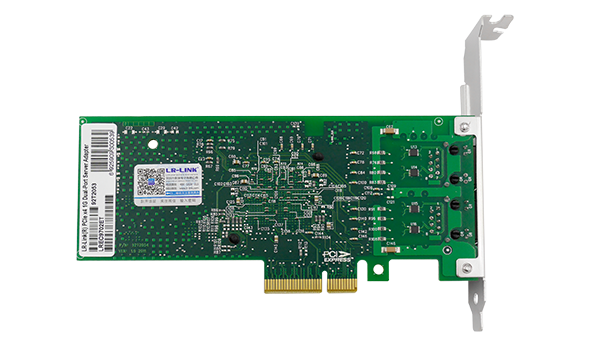

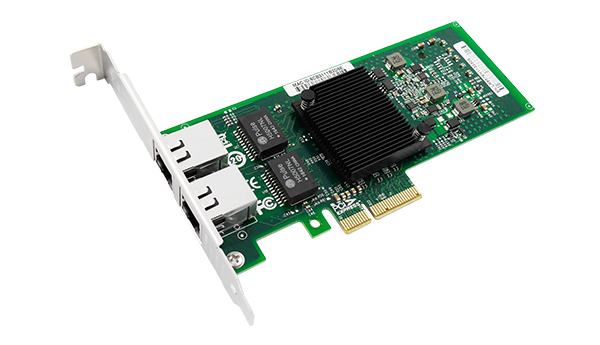

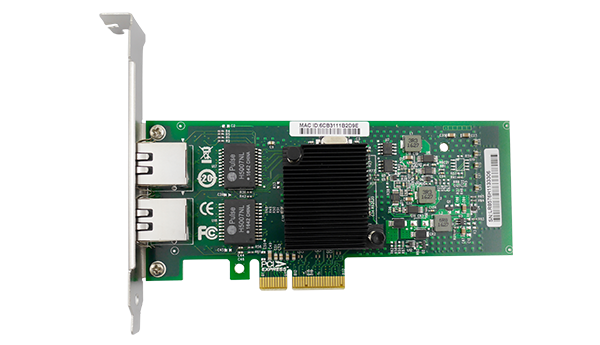

PCIe x4 Dual-port Gigabit Copper Ethernet Network Adapter (Intel Chipset Based)

A Gigabit PCIe x4 Ethernet network adapter with dual port copper ;

This adapter is mainly designed to be applied to servers and their application devices;

Intel 2-port Ethernet MAC+PHY controller with multi-megabit speed;

LRES9702ET

PDF 1.08MB

Download

More Support

Overview Specifications Related products

Overview

LREC9702ET is a Gigabit PCIe x4 Ethernet network adapter with double electric port and double optical fiber hybrid, independently developed by Shenzhen Lingrui Electronics Co., Ltd. on the basis of Intel master control scheme, compatible with PCIe x4\x8\x16 channel at the same time. The adapters are designed primarily for use on servers and their application devices, as well as for common servers.

The LREC9702ET uses Intel's dual-port Ethernet MAC+PHY controller, which uses a fully integrated 10/100/1000Base-T Gigabit Ethernet MAC, allowing both ports to be linked at gigabit rates at the same time.

Specifications

Controller	Intel Chipset
Baffle Height	Half height & full height
Power Consumption	3.8W
Transmission medium	Fiber and Copper
Cable type	1000Base-T：Cat 5e or Higher up to 100m
	100Base-T：Cat 5/5e or Higher up to 100m
	10Base-T：Cat 3/4/5/5e or Higher up to 100m
System Support	Windows XP/Vista/7/8/8.1/10
	Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;
	Linux Stable Kernel version 3.x/4.x or later;
	Linux CentOS/RHEL 7.x or later;
	Ubuntu 16.x or later;
	VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type	PCIe v2.0 x4, compatible with x4/x8/x16
Data rate	10/100/1000MbE

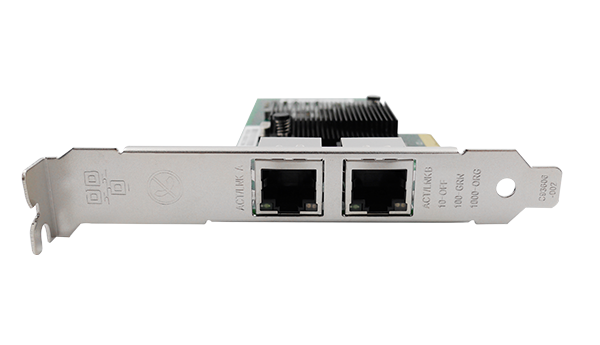

Connector	2*1G RJ45

Protocol Support	IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az
iSCSI	No
WoL	No
Jumbo Frames	YES
DPDK	Yes
PXE	Yes
FCoE	No

Operating Temperature	0 ℃ to 55 ℃ (32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃

Size(mm)	16012021 (±1~2mm)
Weight(g)	*
