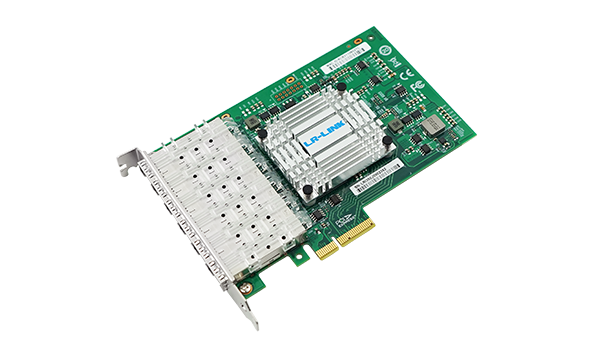

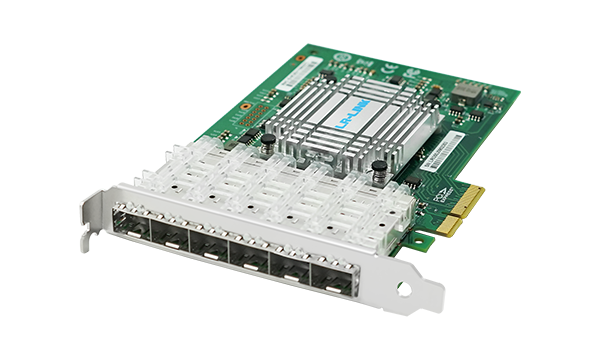

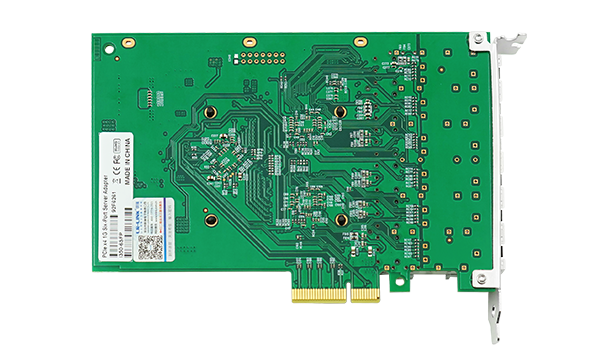

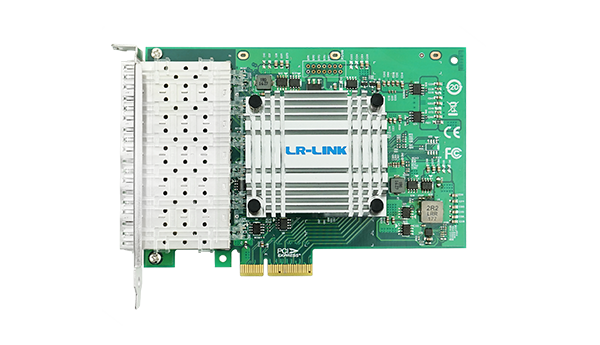

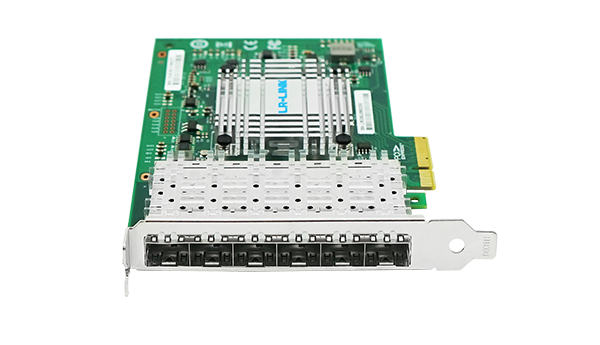

PCIe x4 Six-port 1G SFP Ethernet Network Adapter (Intel I350 Based)

LRES1006PF-6SFP   is   a   PCI   Express   x4   six-port   1G   SFP   ethernet   network   adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 main control solution; this adapter card can be aggregated into groups to achieve fault tolerance , Automatically detect and realize the communication from the faulty port to other members of the same group to continue running to achieve uninterrupted communication. The adapter card has integrated hardware acceleration functions and can perform TCP / UDP / IP checksum offloading and TCP segmentation tasks. The host processing technology can offload the accelerator and free up the CPU resources to free up more CPU resources to process other applications. The adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

LRES1006PF-6SFP This adapter card is used in the Gigabit Ethernet connection of the optical network. The dedicated PCI Express input and output (I / O) bandwidth is equipped to ensure its superior performance, while not occupying the bus bandwidth. There are 4 SFP slots on board, which are compatible with various Gigabit SFP modules. Users can choose the Gigabit fiber module used according to the actual transmission distance without replacing the network card. This adapter card supports PCI-SIG and SR-IOV.

LRES1006PF-6SFP This adapter card is suitable for Gigabit fiber Ethernet, has excellent noise immunity, and also supports long-distance fiber connection. The adapter card supports Intel PRO smart  installation  and  a  new  Intel  PROSet  designed  for  Microsoft  Device  Manager,  which simplifies the installation and management process. The Intel PROSet program simplifies the adapter installation process.
