PCIe 2.0 x8 | BCM57810 | 10G | SFP+ | Dual-port

LREC9812AF-2SFP+

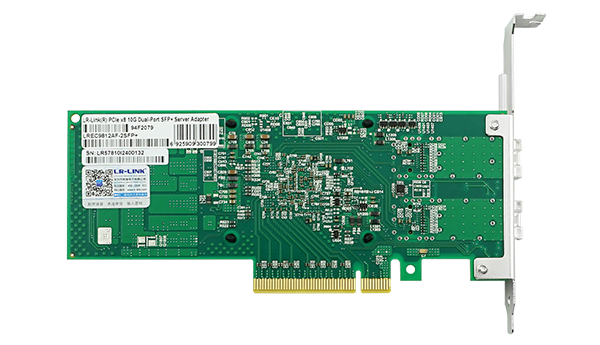

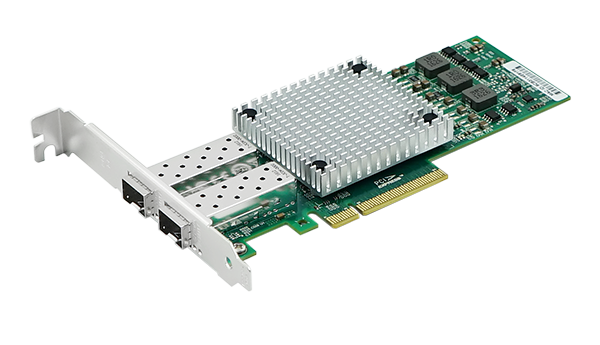

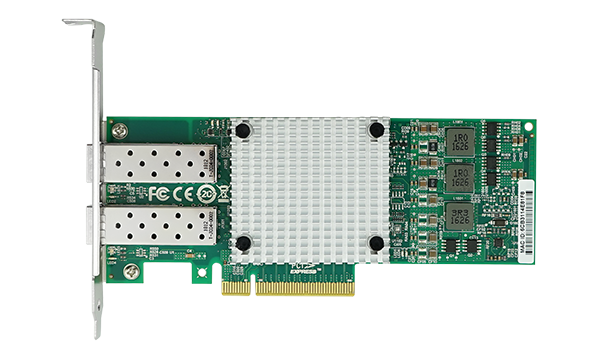

PCIe x8 Dual-port 10G SFP+ Server Network Adapter (BCM57810)

Dual Port 10GbE Adapters

PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes

Industry standard SFP+ fiber port

PXE,iSCSI boot

Network Virtualization

Support IEEE 802.1Q VLAN

Low profile and full-height bracket

LREC9812AF-2SFP+

PDF 395.85KB

Download

More Support

Overview Specifications Driver Related products

Overview

The LREC9812AF-2SFP+ is a dual-port 10Gb Ethernet network adapter featuring the next generation BCM57810 single-chip solution from Broadcom in a PCIe 2.0 compliant form factor.

Leveraging Broadcom market-proven architecture and software, the LREC9812AF-2SFP+ delivers full line-rate performance across all ports with low power consumption.

The LREC9812AF-2SFP+ 10G network adapter supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing,MSI-X, NIC teaming(bonding),Receive Side Scaling (RSS), jumbo frames, PXE boot and virtualization features such as VMware NetQueue and Microsoft VMQ.

LR-LINK PCIe x8 Quad-port 10G SFP+ Ethernet Server Adapter: LREC9804BF-4SFP+

Specifications

Controller	Broadcom BCM57810
Cable medium	Fiber Optics
Cable Type	10GBASE-SR, 10GBASE-LR，1000BASE-SX，1000BASE-LX
Bracket Height	Low Profile & Full Height
Power (min)	6.084 W
Power (max)	7.776 W
System Support	Windows 8 /8.1 /10 /11
	Windows Server 2012 /2016 /2019 /2022
	Deepin 15.11 /20 /20.6 /20.9
	VMware ESXi 6.5 /6.7 /7.0
	Galaxy Unicorn v10
	NeoKylin 7.6
	RHEL/CentOS 7.9 /8.2 /8.3
	Ubuntu 16.04.3 /18.04.5
	Ubuntu 20.04.1 /22.04.2
	SUSE 12 SP5
	SUSE 15 SP4
	FreeBSD 12.2 /13.2
	ZTE New Fulcrum 5.0.5 /3.2.2
	Asianux Server v7.0
	Zhongke Fangde server operating system
	Emind OS
	iKuai router
Bus Interface	PCIe v2.0 (5.0GT/s) x8; compatible with x16
Data rate per port	1/10 Gbps
Connector	2*10G SFP+
Power Supply	PCIe
Ethernet Power Management	Yes
Protocol Support	IEEE 802.3ae IEEE 802.3ad IEEE 802.3q IEEE 802.3az IEEE 802.3 IEEE 802.1 Qau
PXE	Yes
DPDK	No
Wol	No
iSCSI	Yes
Jumbo Frame	Yes
UEFI	Yes
SCAN CHAIN	No
FCoE	Yes
VMDq, SR-IOV	No
1588 PTP	No
Jumbo Data Frame Max	15KB
ESD_Contact discharge	±4KV
