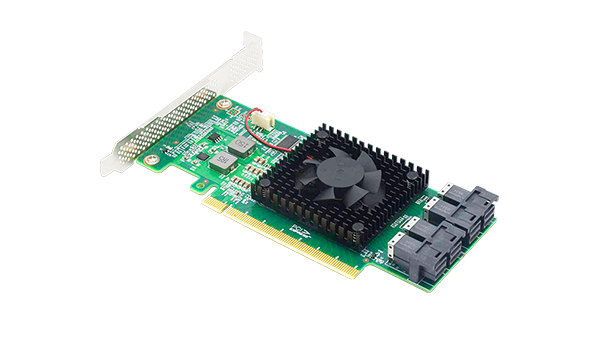

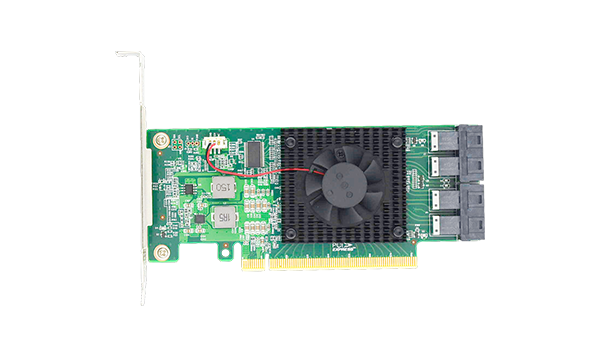

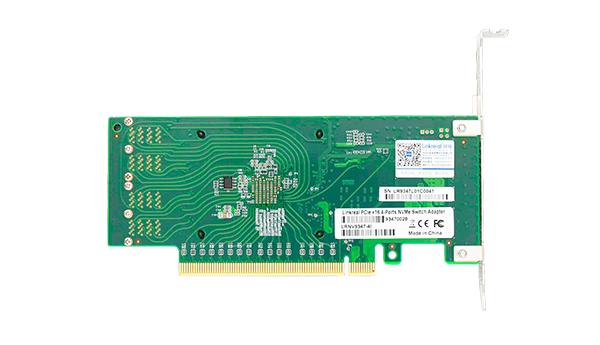

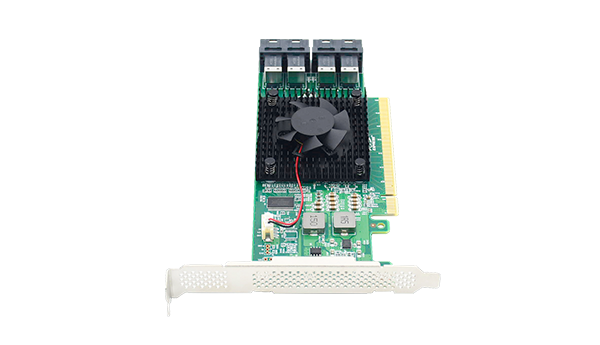

Quad PCIe 3.0 x16 to SFF-8643 NVMe Adapter

Product Description

LRNV9347 NVMe Adapter is PCI Express x16 Gen3 PCIe switch Card. It  allows us to connect 4x U.2 device at full speed to a host system, and it expands the maximum storage of the 4 U.2 SSD via scalable, high-bandwidth, non-blocking interconnection to a wide variety of graphics applications including servers, storage, communications, and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for maximum performance.

LR-LINK Expansion Solution PCIe x16 4-port NVMe Switch Adapter: LRNV9F48

Functional Characteristics

·         Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0).

·         Compliant with PCI Power Management Spec, r1.2.

·         Microsoft Vista Compliant.

·         Supports Access Control Services.

·         High Performance. Non-blocking switch fabric, Full line rate on all ports.

·         Quality of Service. Eight traffic classes per port.

·         Reliability, Availability, Serviceability.

·         Supports PCIe NVME ports.

·         The PCIe transfer rate up to 128Gb/s and the SSD transfer rate up to 32Gb/s.

Applications

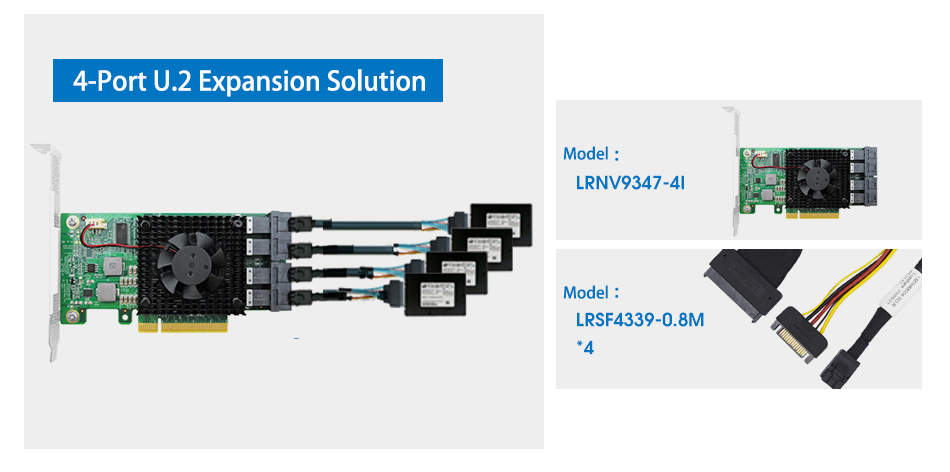

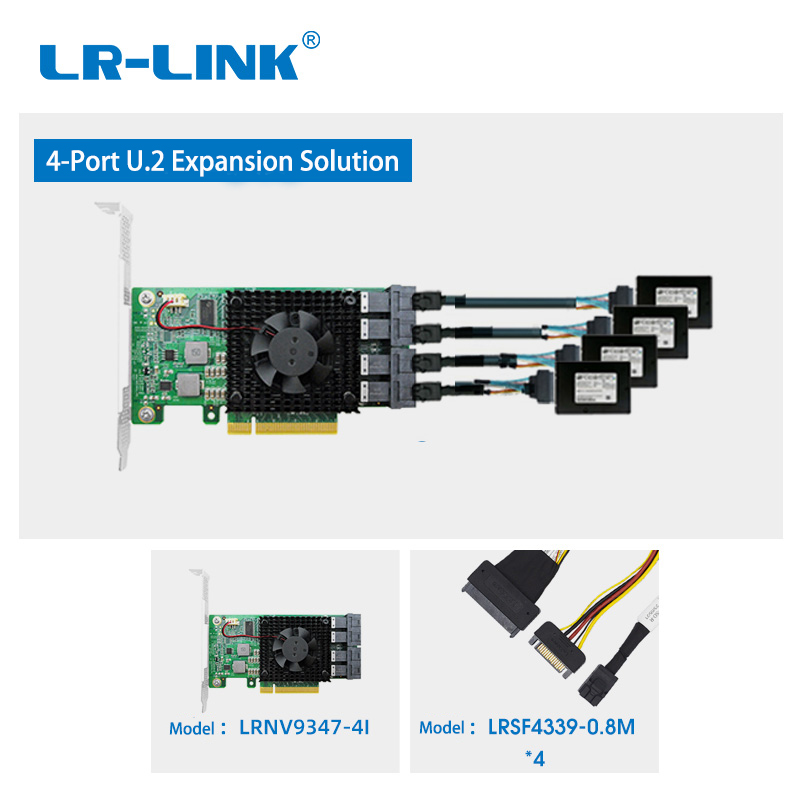

Suitable for NVMe SSD support PCI Express, it can get the maximum bandwidth and transfer rate while the 4 U.2 NVMe SSD running at the same time.
