LRNV93NF

PCIe 3.0 x16 | SFF-8643 | Quad-port

LRNV93NF

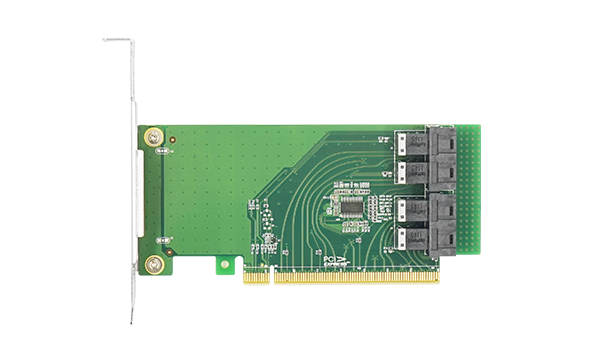

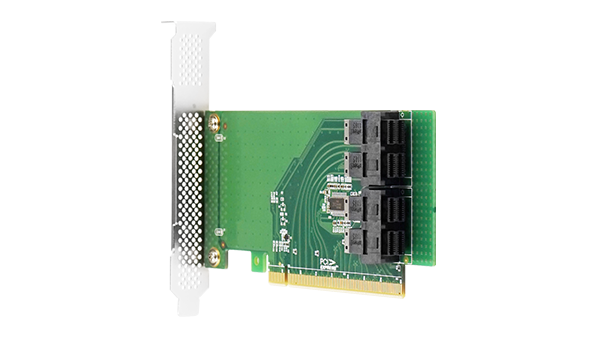

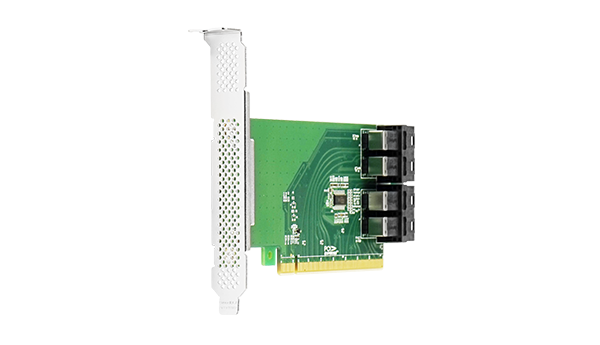

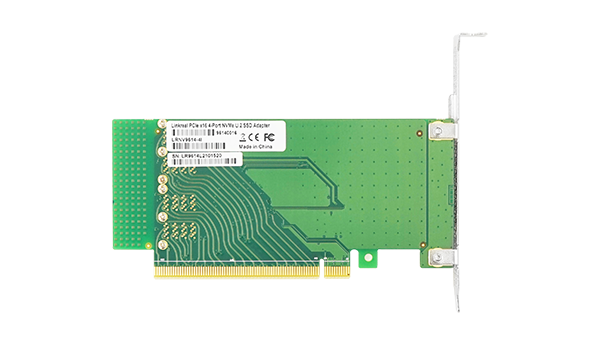

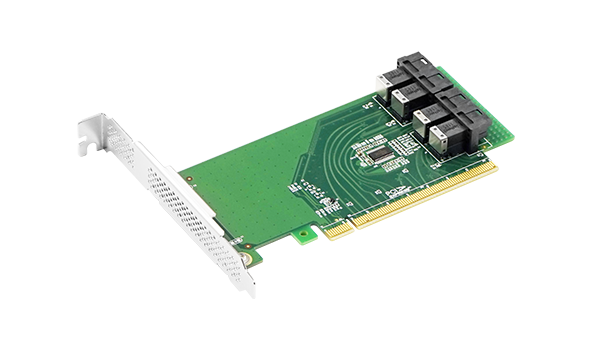

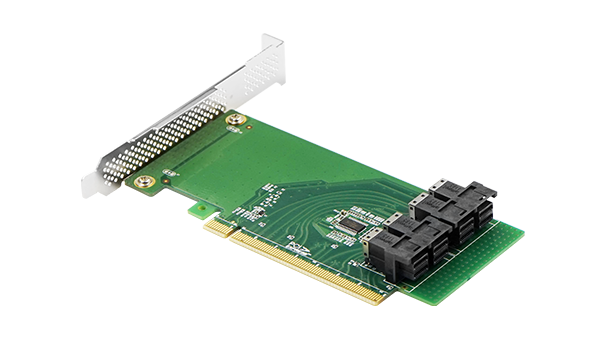

LRNV93NF 4 Ports U.2 to PCIe x16 Bifurcation Controller Card

Product Model:LRNV93NF
Product Name:4 Port PCIe 3.0 x16 to U.2(SFF-8643) NVMe SSD Adapter
Interface Type:4*SFF-8643 Connectors
Support Equipment:4*NVMe SSD
Host Bus Type:PCIe 3.0 x16
Ps. Motherboards BIOS needs to have PCIe Bifurcation Mode Support
Overview

LRNV93NF is a PCI Express x16 Bifurcation Riser Card for PCIe 3.0 to SFF-8643 connector. It connects to NVMe SSD or PCIe connectors via SFF-8643 connector and Cables. This card requires SPLIT PCIE on the motherboard to support Four U.2 NVMe hard drives, and BIOS supports PCIe Slot bifurcation.




Features:


Comes with a full-profile bracket (preinstalled), and also includes a low-profile bracket for a small form-factor computer.


Computer with PCI Express Slot (x16) support PCIe bifurcation mode.


Please kindly verify with your mainboard manufacturer (such as Intel, Supermicro, Tyan, ASRock, Gigabyte...) to make sure the motherboard BIOS support Bifurcation for the PCI Express you are using.




Advantages


Upgrade your data center or enterprise-level applications with U.2 NVMe SSD capability


Utilize the advanced performance of a PCIe NVMe 2.5 in. SSD for intensive data workloads - ideal for numerous professionals from architects to medical professionals


Work with large files more efficiently for audio/video production and editing


LR-LINK 4 xU.2 to PCIe x16 Adapter for 2.5: LRNV94NF


Specifications

HARDWARE

Model

LRNV93NF

Number of Device

4 internal

Bus Type

PCI Express

Compatible Device

U.2 (PCIe_NVMe SSD, SFF-8639)

Interface

SFF-8643

CONNECTOR(S)

Drive Connectors

4*SFF-8643 (36 Pin,x4 PCIe Gen 3)

Host Connectors

PCI Express x16

ENVIRONMENTAL

Humidity

15% ~ 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Product Dimension

69mm x 147mm

Product Weight

76g

WARRANTY INFORMATION

Warranty

2 Years

PACKAGING INFORMATION

Shipping (Package) Weight

4.5 oz [128 g]

WHAT'S IN THE BOX

Included in Package

1 - U.2 Ports to PCIe x16 Bifurcation Controller

1 - low-profile bracket

1 - full-profile bracket (installed)
