PCIe 2.0 x1 | Intel 82576 | 1G | SFP | | LC

LREC9260PF-SFP

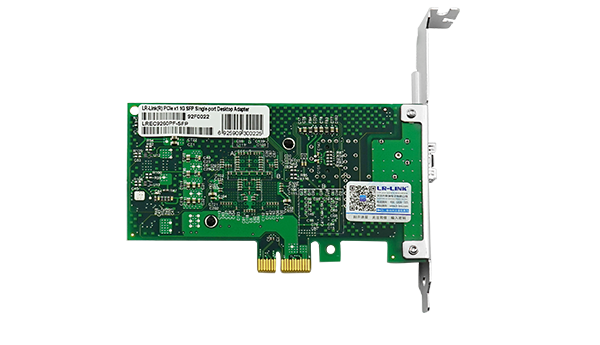

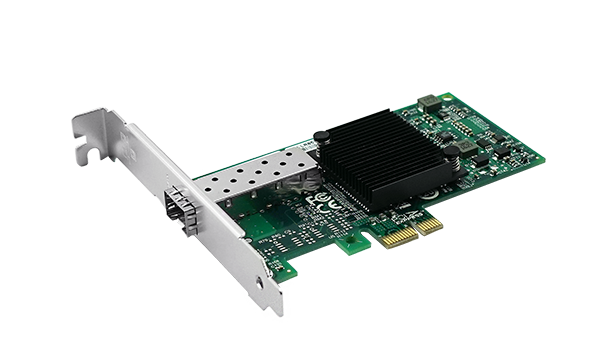

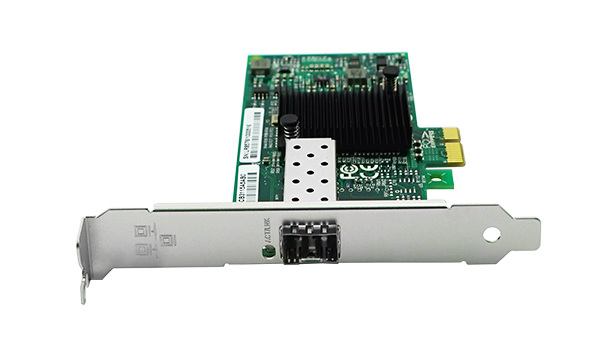

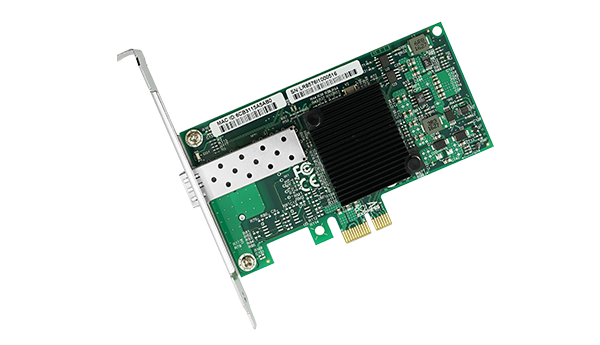

PCIe x1 Gigabit SFP Fiber Ethernet Adapter (Intel 82576 Based)

Single-port 1000Mbps adapter

PCI Express (PCIe) 2.0, 2.5 GT/s, x1 lane

SFP LC Connectivity

Network Virtualization

ISCSI remote boot support

Load balancing on multiple CPUs

Support for most network operating systems(NOS)

Simple Network Management Protocol(SNMP) and Remote Network Monitoring(RMON) Statistic Counters

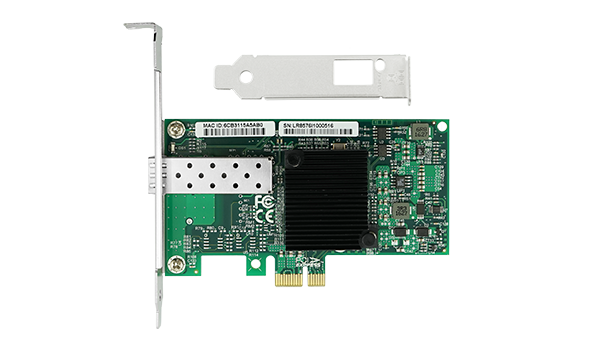

Low profile and full -height Bracket

LREC9260PF-SFP

PDF 0B

Download

More Support

Overview Specifications

Overview

LREC9260PF/PF-BD/PF-SFP is a PCIe x1 1Gbps Single-Port Ethernet Fiber Desktop Adapter based on Intel 82576EB chipset, It is compatible with PCIe x8 and x16 slot and low-profile PCI Express slots.

The adapter performance has been optimized while being designed to make system I/O no longer the bottleneck of network application. It can be grouped up together by other adapters to achieve fault tolerance as well as combine the communicating routing from the faulted port with others in the same group to guarantee its non-stop network communications. The Fiber Network Adapter with excellent noise immunity is applicable for Gigabit Ethernet Network. Its power supply has been changed into American TI high-efficiency supply management controller with low heat release, high efficiency and high stability.

Specifications

Controller	Intel82576EB
Transmission rate per port	1000Mbps
Network Standard Physical Layer Interfaces	1000BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm
Network Standard Physical Layer Interfaces	1000BASE-LX:20Km at 9µm
Jumbo Frame Support	Up to 9.5 KB
Operating Temperature	0 °C to 55 °C (32 °F to 131 °F)
Network Virtualization	VXLAN, MACinUDP, NVGRE, IPinGRE
LED Indicators OPERATION	1000Mbps/s:Link Green constant, ATC Yellow blink
Power supply	PCI Express +12V±8% /+3.3V±9%
OperatingSystem Support	Windows Server2016/ 2012 R2/2008 R2/2008/2003
	Windows2000/XP/Vista/7/8/8.1/10
	Linux Stable Kernel version 2.6.30
	Vmware ESXi 5.x/6.x
