SP670

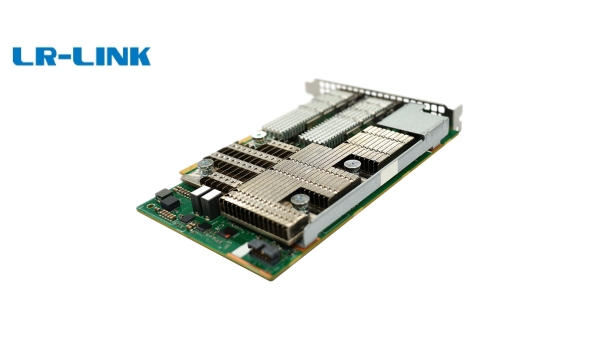

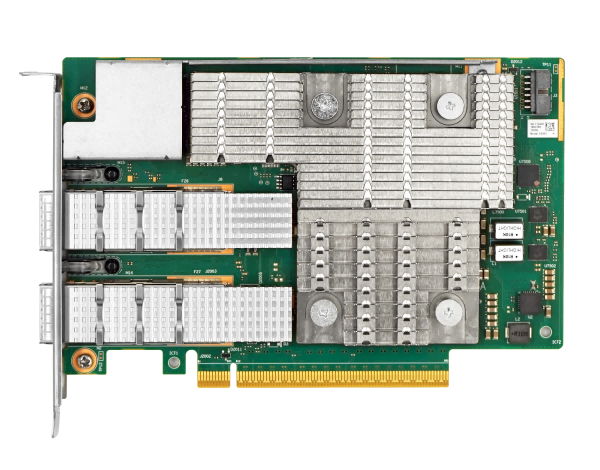

PCIe x16 Dual-Port 100G QSFP28 Ethernet network Adapter

SP670 is a PCIe4.0 x16 dual-port 100Gbps QSFP28 Ethernet network adapter based on Huawei HiSilicon Hi1822 chip

Overview

SP670 is a PCIe4.0 x16 dual-port 100Gbps QSFP28 Ethernet network adapter based on Huawei HiSilicon Hi1822 chip. It provides an extended external service interface for the server.

SP670 supports MCTP (Management Component Transport Protocol) out-of-band management, which can achieve more efficient remote management and control in server management; Supports RDMA (RoCEv2), which does not require kernel intervention through the operating system, reduces data copying and CPU load; Supports GPU Direct, which allows data to bypass the CPU and directly transmit to the GPU, reducing CPU load and improving processing efficiency; supports DPDK, which can greatly improve data processing performance and throughput, and improve the work efficiency of data plane applications.

SP670 can be widely used in application scenarios such as AI/ML, high-performance computing, and cloud computing.

Specifications

Model	SP670
Main Control Chip	Huawei HiSilicon Hi1822
Bus Type	PCIe4.0 x16
Connector	2 * QSFP28
Link Speed	100G/40Gbps
Cable Medium	Fiber
Bracket Height	Full Height/Half Height
Min Power(w)	29W
Max Power(w)	35.5W
Power Supply	PCIe
Protocol Support	IEEE 802.3ap based auto-negotiation and KR startup IEEE 802.3ad (LACP) IEEE 802. 1Q/802. 1P IEEE 802. 1Qaz (ETS) IEEE 802. 1Qbb (PFC) IEEE 802. 1Qbg IEEE 802. 1BR
OS Support	Linux
RDMA	RoCEv2
PXE	Yes
UEFI	Yes
DPDK	Yes
SR-IOV	Yes
VXLAN	Yes
DPDK	Yes
MCTP	Yes
NCSI	Yes
Jumbo Frame	Yes

LED Type	Color/Behavior	Note
Activity	Off	No Activity
Green	Link up
Green Blinking	Link up(data transmission)
Link	Off	No Link
Yellow	Linked at 40Gbps
Green	Linked at 100Gbps

Environment Features

Operating Temperature	5 °C to 45 °C
Storage Temperature	-40 °C to 65 °C
Operating Humidity	8% RH to 90% RH (non-condensing)
Storage Humidity	8% RH to 90% RH (non-condensing)
Dimension	18.71mm * 111. 15mm * 167.65mm
Weight	950g
Certification	FCC ，CE ，RoHS

Packing List

Bracket	Full Height
Internet Network Adapter	*1
Product Warranty Card	*1
Packaging	Carton + Blister Box + Anti-static Bag
