LRNV9F96-10I

PCIe4.0 x16;Expandable to 20 SSD; Broadcom PEX88096;Switch Adapter

LRNV9F96-10I

PCIe4.0 x16 10*SFF-8654 8i NVMe Switch Adapter Expandable to 20 SSD

PCIe Gen4.0 x16;
Expandable to 20 SSDs;
Comes with switch function;
Support three splitting modes of 20 * X4 / 10 *X8 / 5 * X16;
Integrated NVMe Hot-Plug & Hot-Swap Capability.
Overview

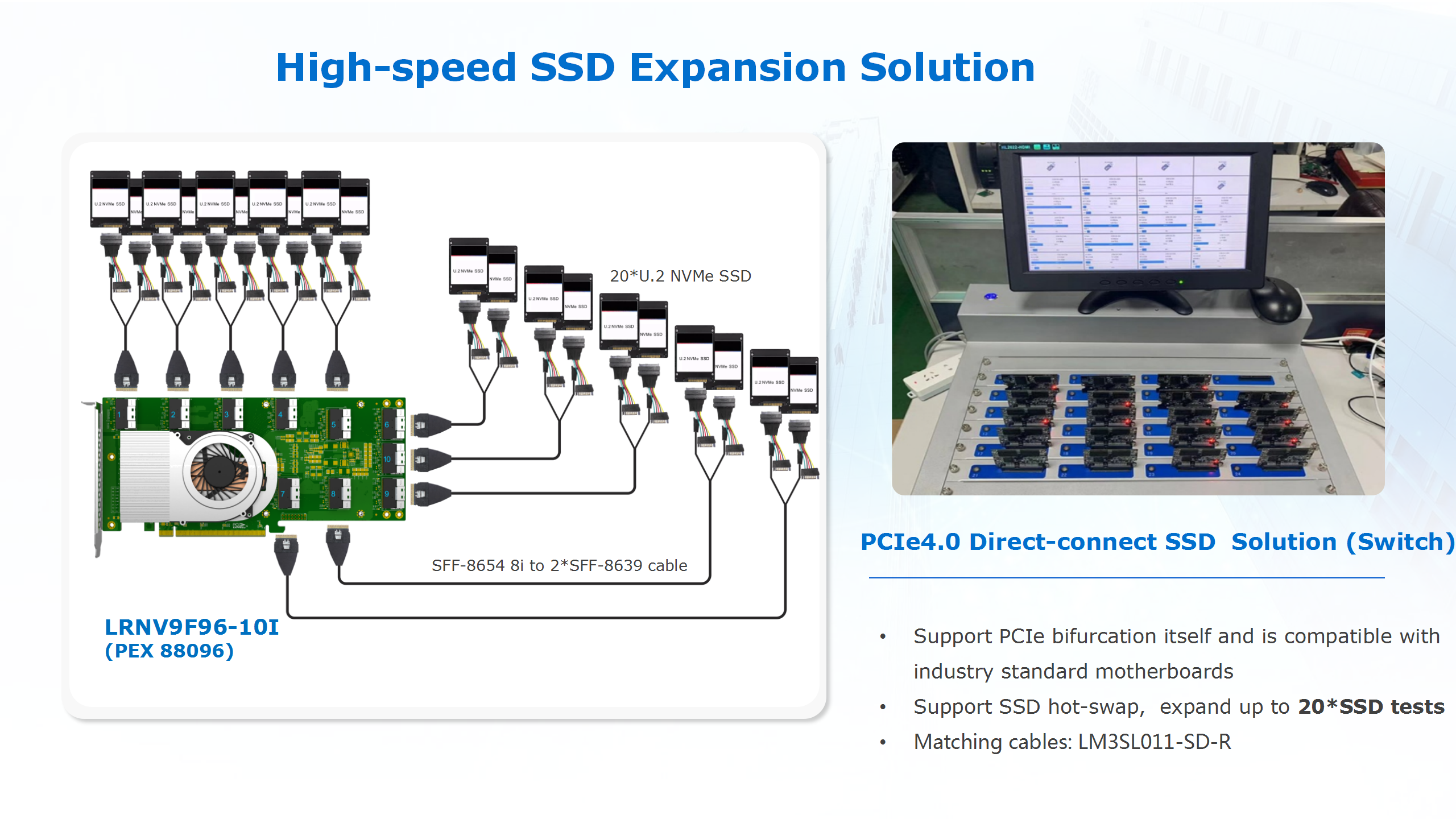

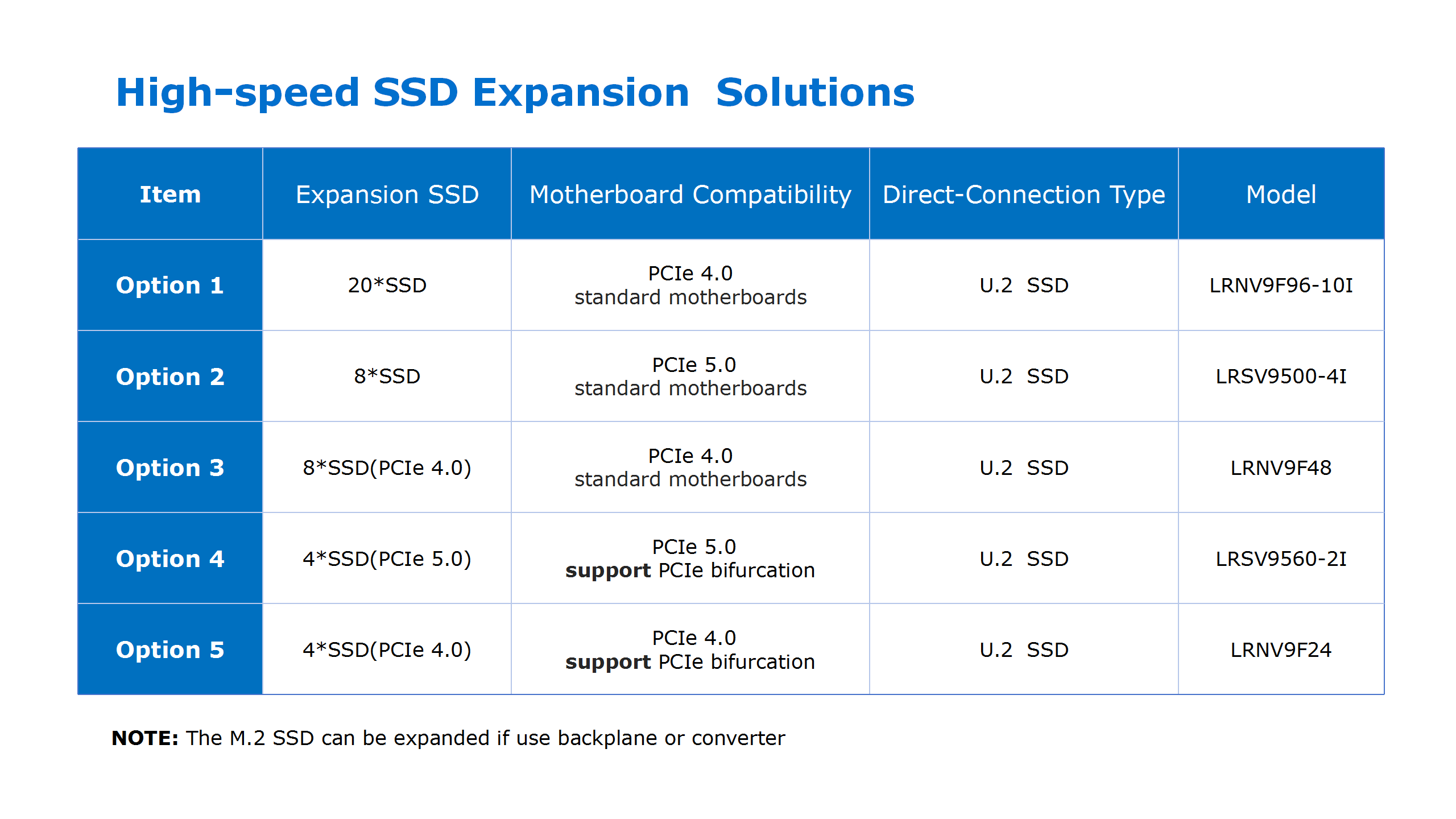

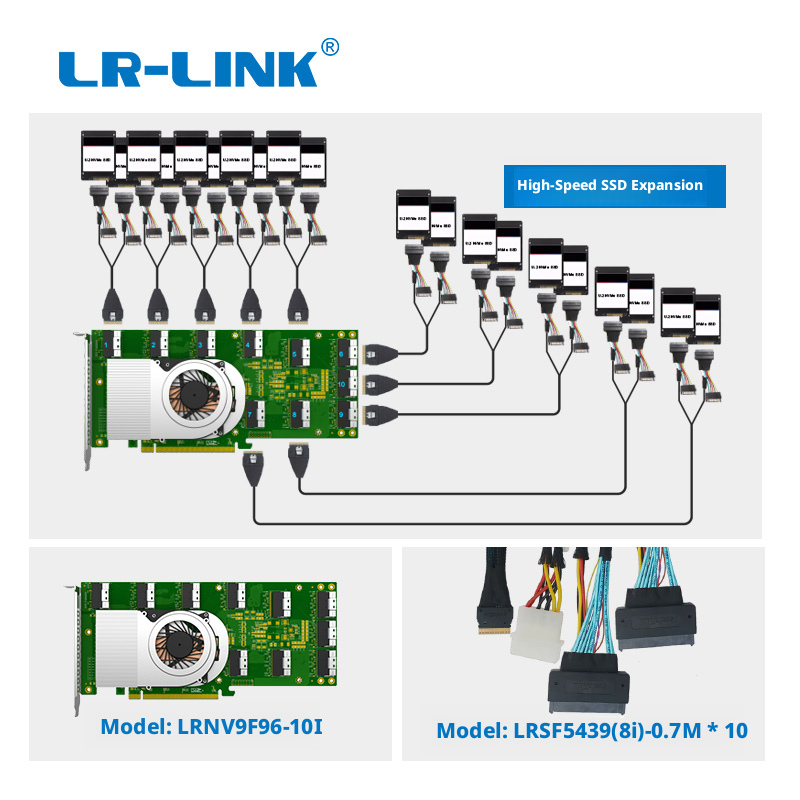

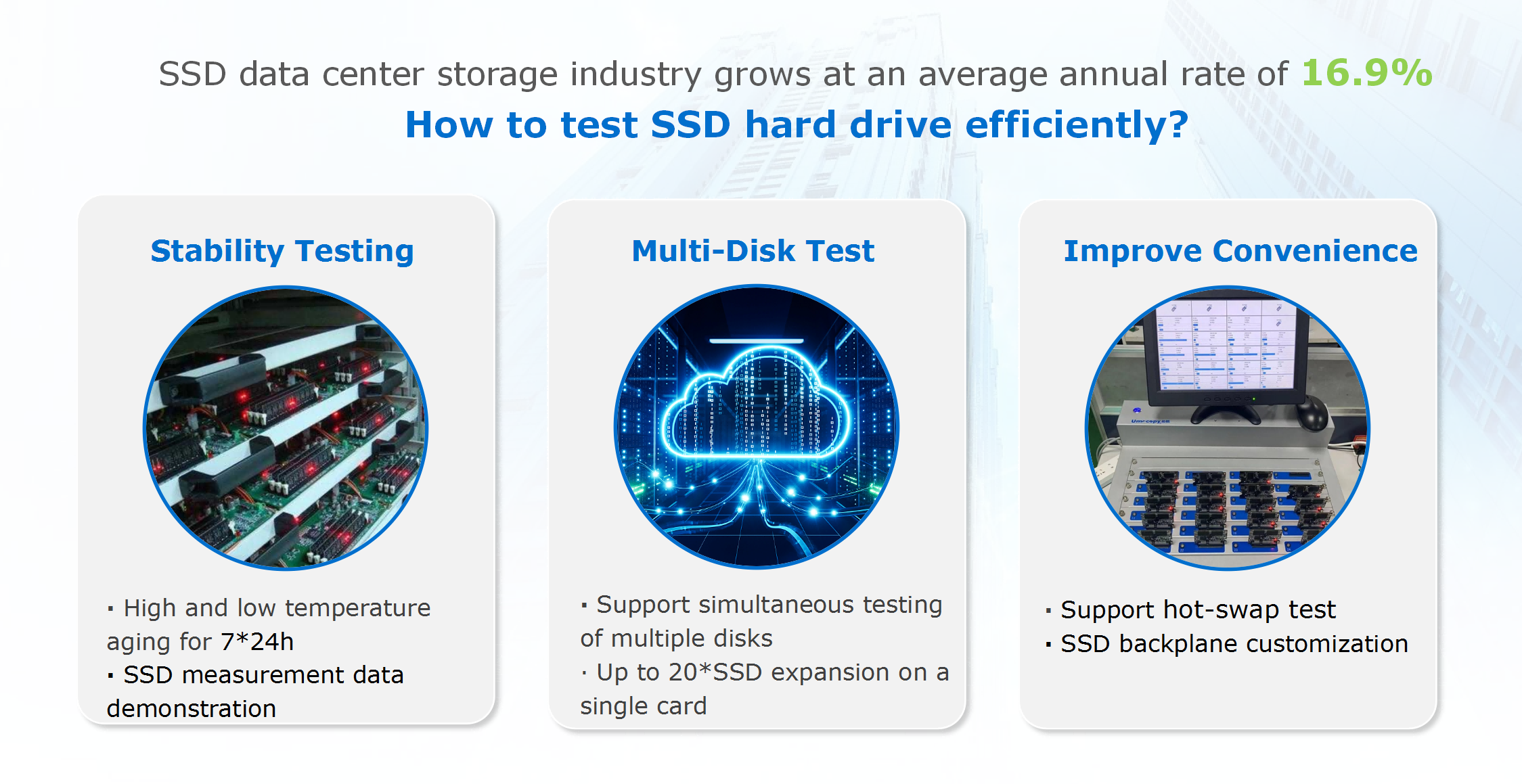

LRNV9F96-10I is a PCIe4.0X16 to 10-port built-in 8654 8I NVMe switching adapter developed by Linkreal Co., Ltd. based on Broadcom PEX88096. With its own switch function, the adapter supports multiple PCIe channel split modes, including 20 X4, 10 x8, or 5 x16 configurations, allowing users to easily adjust and optimize the data transmission architecture and save PCIe resources according to actual application requirements. With a transfer  rate of up to 256Gb/s, the LRNV9F96-10I can directly support up to 20 U.2 SSDS, designed for high-end applications such as SSD performance testing and GPU expansion testing, and provides enterprise-class NVMe storage connectivity for a variety of industry-standard x86 server and workstation platforms. Large capacity expansion solution for flash server. With high-bandwidth, low-latency PCIe 4.0 connectivity, test data is accurate and real-time, accelerating product development and validation processes.


Specifications

Model

LRNV9F96-10I


Controller

Broadcom PEX88096


PCIe bus

PCIe4.0(16 GT/s) x16


Transmission rate

256Gb/s


Bracket Height

Full Height


Connector Type

SFF-8654 8I


Number of devices

10


SSD Hot-Plug

Yes


Sider Fusion

20 * PCIe 4.0 X4 / 10 * PCIe 4.0 X8 / 5 * PCIe 4.0 X16














Operating System Support

* Windows 8.1/ 10 / 11

* Windows Server 2012/2016

* Windows Server 2019 /2022

*  RHEL/Centos7.6 /7.9 /8.2 /8.3/9.0

*  Deepin 15.11 /20 /20.6 /20.9

*  Ubuntu 16.04.3/18.04.5 /20.04.1 /22.04

*  SUSE 15 SP2

*  FreeBSD 12.2 / 13.2

*  NewStart Desktop OS 4.5.2

*  FusionOS 22.06/23.06

*  Galaxy Kirin OS v10

*  NeoKirin OS 7.6

*  OpenKirin OS 2.0

*  OpenEuler 24.03

*  Rocky 9.4

*  Fangde Server OS 4.0

*  UOS 20

*  Emind OS

*  Debian 12.5.0


Working parameters



Operating Temperature

5℃ - 50℃ (41℉ - 122℉)

Storage Temperature

-25℃ - 70℃ (-13℉ - 158℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35  ℃

Certification

FCC, CE, RoHS


Physical properties



PCB size(unit:mm)

267 * 110.38


Packing list



Baffle specifications

Full bracket(installed)

Expansion Card

*1

Product warranty card

*1

Packing

Carton and Anti-static Bag



* Product appearance and specifications are subject to change without nonce.
