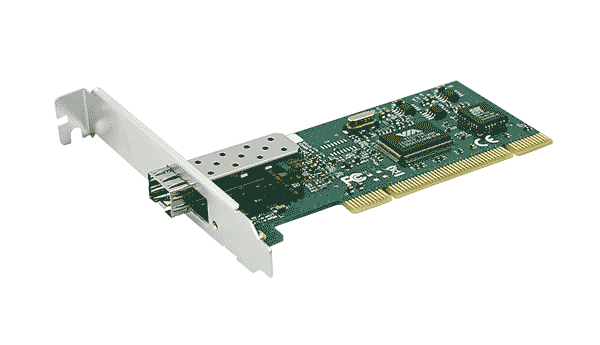

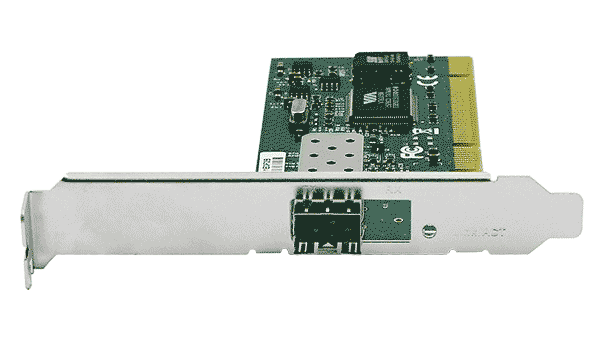

LREC7020PF-SFP

PCI 100Mbps SFP Fiber Network Interface Card Adapter(VT6105 Based)

Advantages:
Use the double copper thickness,5OZ heavy gold plate to ensure the good reflect and heat dispersion
optimize designation, improved the distribution line and integral network arrangement
Use the high power control,improved the high temperature of IC problem
Add the PXE BootRom controller and PXE
Applications:
10/100Mbps FTTDB/FTTH Network
10/100Mbps Industry Ethernet
POF Digital Home Network
Other fiber applications AS
Overview

LREC7020PF-SFP are a PCI 2.2 100Mbps Single Port Ethernet Fiber Desktop Adapter based on VT6105 Chipset. This optical fiber Ethernet adapter is widely applied on various occasions of Fiber To The Desktop(FTTP).n

The Adapter with high data security, high reliability, stability and compatibility, has been widely used in the secret industries, such as prosecution, courts, police and military industrial enterprises etc. It can completely replace the Ethernet card external photoelectric conversion of the network structure of the commonly used RJ-45, to provide users with reliable fiber-to-the-home and fiber-to-the-desktop solutions. Users can select the optical interface parameters (including connectors, single / multi-mode fiber, working distance) according to the distance.


Specifications

Controller

VIA VT6105

Connector

SFP LC (Fiber)

Transmission rate per port

100Mbps

Network Standard Physical Layer Interfaces

100BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm

100BASE-LX: 10Km at 9µm

Operating Temperature

0°C to55 °C (32 °F to 131°F)

LED Indicators OPERATION

Link/Activity  LED: off = No Link;  on = Link; Blinking = Activity

Operating System Support

Windows Server2000/2003 64-bit /XP/ Vista/7/8/10/

DOS /Ubuntu pre 8.04/9.04/ 9.10/10.04 /SuSE Linux Enterprise 11 /Kernel 2.6.19.X/

Fedora Core 1.0 Linux /2.0/3.0/4.0/5.0/6.0/7.0/8.0/11.0 /Red Flag Linux, Red Hat Linux

OpenUNIX 8.0 (Caldera)/openSuSE Linux 10.3 & earlier versions, /FreeBSD versions 4.x, 5.x, 6.x and 7.0./Mandrake/Mandriva pre-2006/2006/2007/2007.1/2008 Linux
