LREC6230PF-SFP

1000Base-SX-LX PCIe X1 SFP Port Network Interface Card (1 x SFP)

Single Port 1GBE adapters
PCI Express (PCIe) v2.1, 2.5 GT/s, x1 lanes
PXE,SCSI boot
IEEE 802.3az 1GEthernet Specification Compliance
Data Plane Development Kit (DPDK) support
Low profile and full-height bracket
Overview

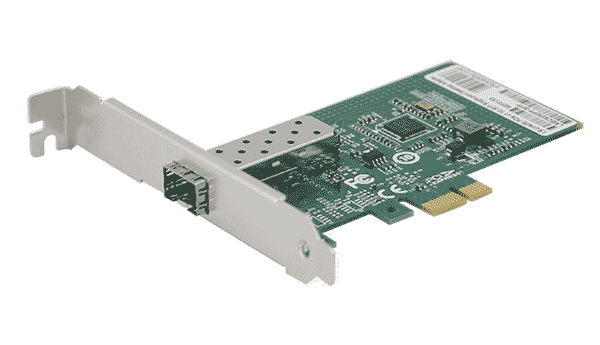

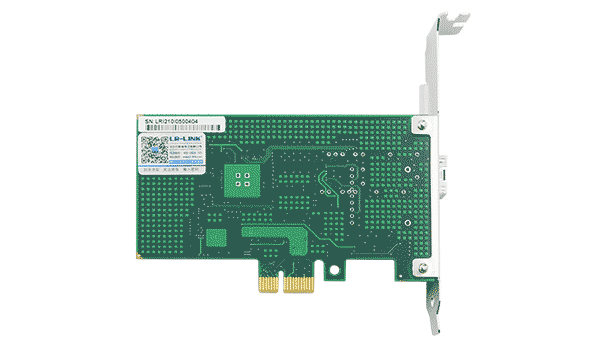

LREC6230PF/ LREC6230PF-LX /LREC6230PF-BD /LREC6230PF-SFP/6230PF-LC is a PCIe x1 2.1 1Gbps Single Port Ethernet Fiber Desktop Adapter based on Intel I210 chipset, and is compatible with PCIe x4,x8,x16 slot. System I/O is no longer the bottleneck of network applications. In the networking connections, PCI Express dedicated input /output (I / O) bandwidth to ensure the network card to use the superior performance without taking up bus bandwidth.

The Desktop Adapter has high performance, high stability, high quality and very good compatibility, compatible with all brands of computers and fiber switches. This adapter is the ideal solution for deploying high-performance fiber-to-the-desktop (FTTD) applications and network security industry.


Specifications

Controller

Intel I210

Transmission rate per port

1GbE

Network Standard Physical Layer Interfaces

1000Base-LX (1310nm)

1000Base-SX (850nm)

Jumbo Frame Support

Up to9.5 KB

Operating Temperature

-5°C to40 °C (23 °F to 104°F)

LED Indicators OPERATION

Link Orange,1000Mbps:Orange blinking

OperatingSystem Support

Windows Server2016/2016/R2/2012/2012R2/2008/2008 R2/ 2003 /2000/7/8/8.1/10

WindowsCE/5.0 /Vista 32-bit (64-bit)

NetWare NetWare 5.0/5.1/6.0/ DOS/ Novell ODI

Linux 2.4 series kernel and 2.6.x/3.x /FreeBSD with the 9.x kernel

OpenUNIX 8.0 (Caldera), UnixWare 7.x /Sun Solaris x86
