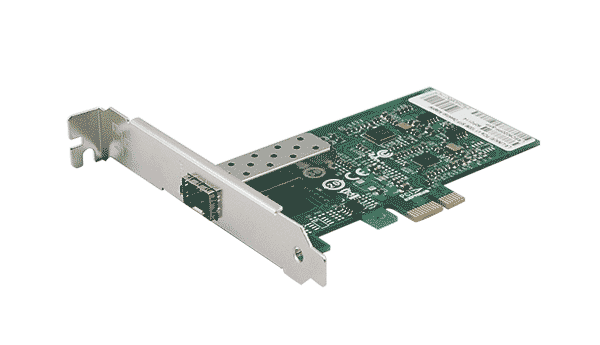

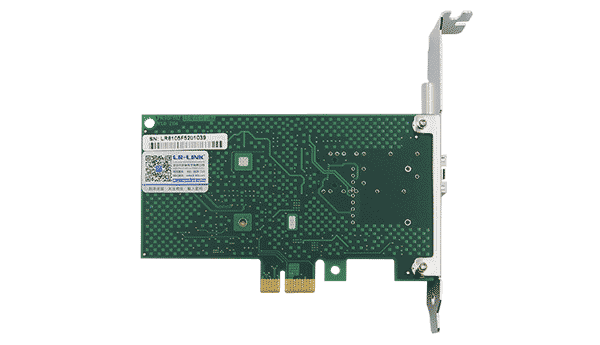

PCI-E 100Mbps LC Connector SFP Fiber Card(RTL8105E Based)

Single-port 100M adapters

PCI Express (PCIe) v1.1, 2.5 GT/s, x1 lanes

SSFP LC Connectivity

Low profile and full-height bracket

Overview

LREC9020PF-SFP is 100Mbps PCIe fiber optic NIC card, it is ideal for government, education or other networks with high security requirements, Designed for fiber-to-desktop networks that need secure and reliable systems. Users can select the optical interface parameters (including connectors,single-mode/multi-mode fiber, working distance, etc) according to occasion. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems.

The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption.

Specifications

Controller	RTL 8105
Transmission rate per port	100M
Network Standard Physical Layer Interfaces	100BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm
Network Standard Physical Layer Interfaces	100BASE-LX: 10Km at 9µm
Jumbo Frame Support	Up to 9.5 KB
Operating Temperature	0 °C to 55 °C (32 °F to131 °F)
Network Virtualization	VXLAN, MACinUDP, NVGRE, IPinGRE
LED Indicators OPERATION	Link/ACT Green Blinking:100M
OperatingSystem Support	Windows Server 2016 R2/2012 R2/2012/2008 R2
	Windows 7 x64/8/8.1/10
	Linux Stable Kernel version 2.6.32/3.x/4.x or newer
	MAC OS 10.4/10.5/10.6/10.7/10.13
