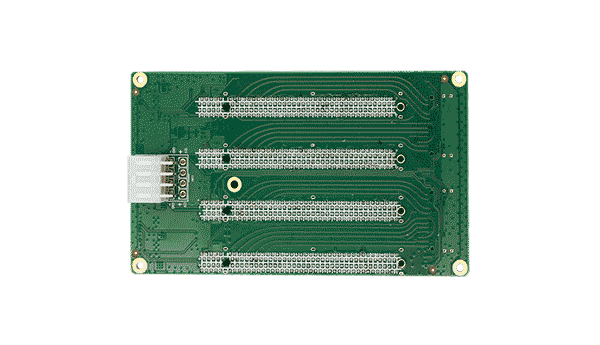

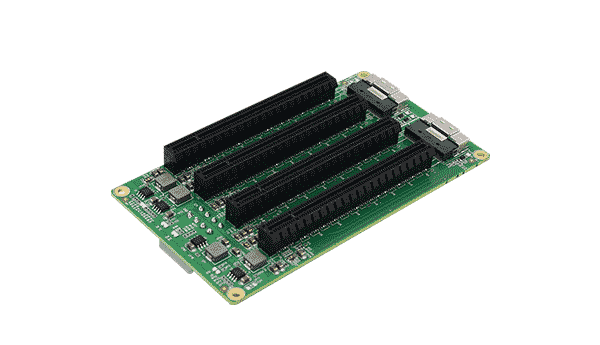

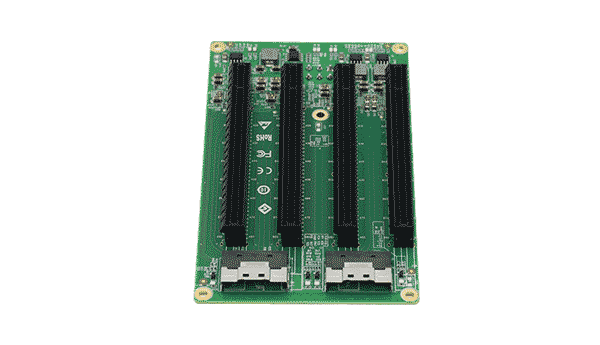

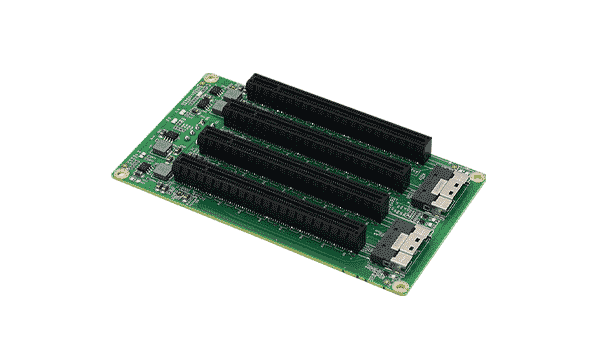

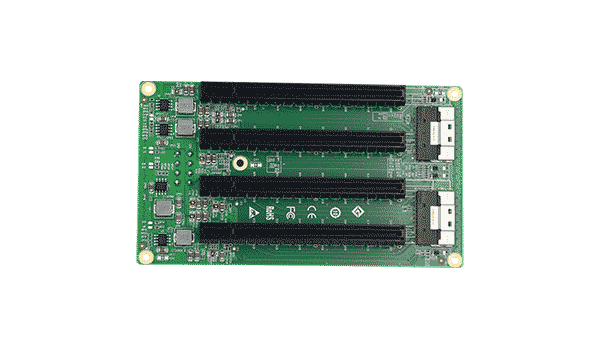

LRFCF944 2 Port SFF-8654 to 4 PCIe x16 Slot Adapter

Product Model:LRFCF944

Product Name:2 Port SFF-8654 to 4 PCIe x16 Slot Adapter

Interface Type：2*SFF-8654+8 PIN Power Socket+4 PCIe x16 Slot

Interface Bus Type：PCIe x16 slot (x4 for each slot)

LRFCF944

PDF 372.94KB

Download

More Support

Overview

The LRFCF944 connects two SFF-8654 expansion cards to provide four PCIe X16 slot(x4 for each slot). So it supports more PCIe devices and supports flexible server & terminal expansion. With standard 8 PIN SATA Power Socket for stable expansion and output.

LR-LINK

Specifications

Technical specifications
Model	LRFCF944
Interface	SFF8654
CONNECTORS(S)
Connector	2*SFF-8654(74 Pin, x8 PCIe Gen 4)
PHYSICAL CHARACTERISTICS
Dimension	142mm*80mm
Product Weight	86.5g
PACKAGING INFORMATION
Shipping (Package)Weight	4.83 [137 g]
<span color:#3b3b3b;background:white;"="" style="font-size: 10px">WHAT'S IN THE BOX
Included in Package	2– SFF-8654 to PCIe x16 Slot Adapter
