Dual-port Slimsas(SFF-8654 8I)to PCIe x16 converter

LRFCF921

Main PCle Connectors: 2 SlimSAS 8i socket connectors (SFF-8654)

Auxiliary PCle connector: PCle x16 slot with support for single-slot x16 signals

Power interface: ATX 2x3 GPU power interface, 12V

Dual-port Slimsas(SFF-8654 8I)to PCIe x16 converter

PDF 538.99KB

Download

More Support

Overview

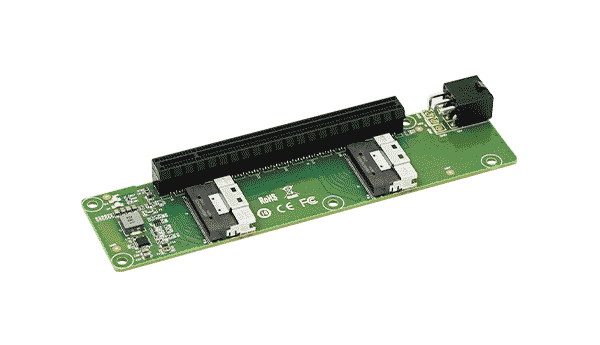

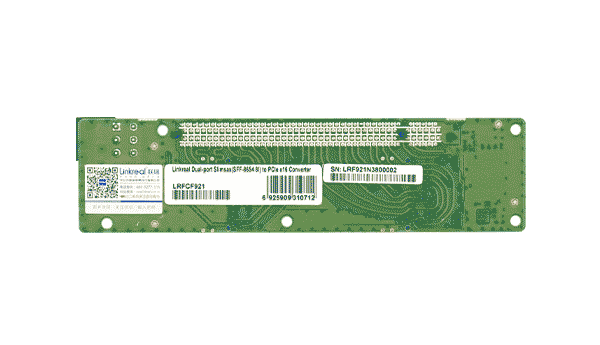

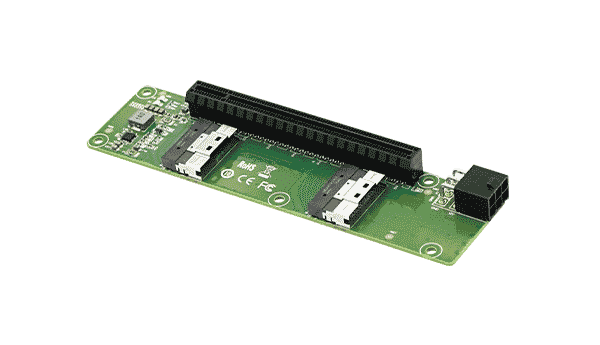

LRFCF921 is a SlimSAS (SFF-8654 8I) to PCIe x16 slot riser that allows you to expand a PCIe x16 slot by inserting a PCIe expansion card with 2 SFF-8654 connectors. This provides greater bandwidth and faster transfer speeds. It can be easily connected to graphics cards, accelerator cards, and other devices to improve computing efficiency.

LR-LINK

Specifications

HARDWARE
Model	LRFCF921
Bus Type	PCI Express
Interface Type	2*SFF-8654(PCle Gen 4）
Number of ports	2 built-in interfaces
Device Connector	1*PCIe x16
Power supply interface	ATX 2x3 GPU power connector

ENVIRONMENTAL
Humidity	15%-90%
Operating Temperature	0℃-80℃(32℉-176℉)
Storage Temperature	-25℃-80℃(-13℉-1176℉)
