LRNVE511
PCIe x4 | EDSFF | Single-port
LRNVE511

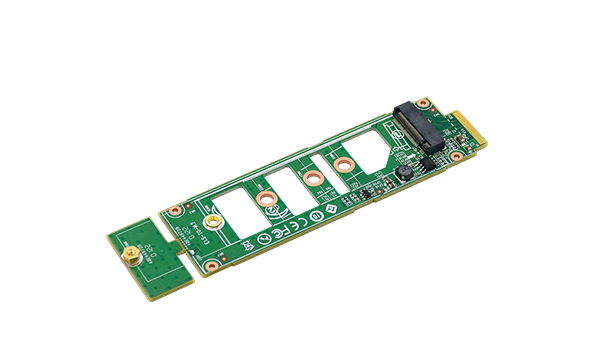

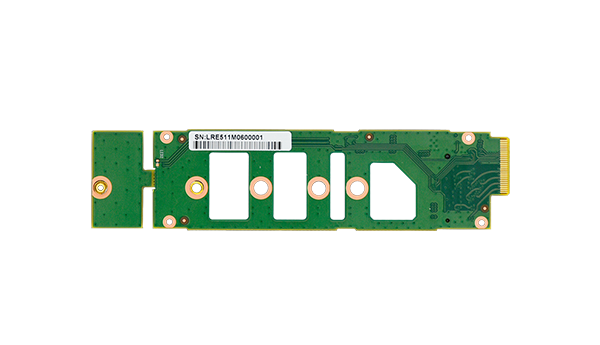

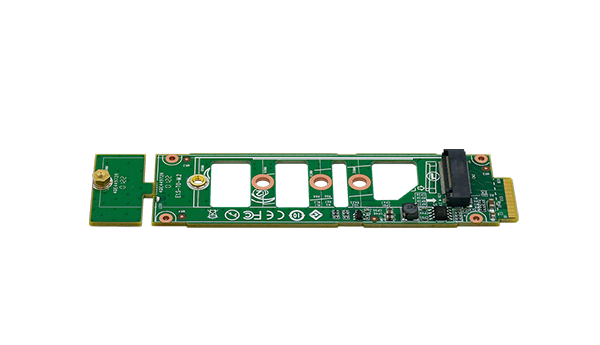

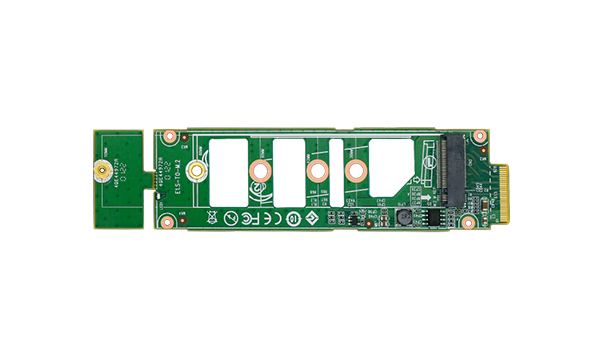

EDSFF to M.2 M Key NVMe SSD Adapter
Product Model： LRNVE511
Product Name： EDSFF to M.2 NVMe SSD Adapter
Interface： 1*EDSFF
Support： 1*NVMe SSD Support 22110mm
Host Bus Type： PCIe x4
Supports M.2 2280,22110 size NVMe SSDs
Supports E1.S size specification or non-standard size
Overview
LRNVE511 can convert EDSFF interface to M.2 M-KEY interface for connecting M.2 NVMe Supports M.2 2280,22110 NVMe SSDs. uses Oculink to U.2 cable.
Specifications
HARDWARE | |
Model | LRNVE511 |
Interface | EDSFF |
Built-in Port | 1 * M.2 |
Supported Devices | 4 * NVMe SSD |
Adaptable Hard Disk Types | 1 * M.2 M-kry |
CONNECTOR | |
Device Connector | 1*M.2 M-KEY |
Host Bus | PCIe x4 |
ENVIRONMENTAL | |
Humidity | 15%-90% |
Operating Temperature | 0°C -70°C (32°F - 176°F) |
Storage Temperature | -25°C-80°C (-13°F - 158°F) |
PHYSICAL CHARACTERISTICS | |
PCB size(unit:mm) | 31.5*130.5*1.6 |
Product Weight(unit:g) | * |
PACKAGING INFORMATION | |
Package size (unit: mm) | * |
WHAT'S IN THE BOX | |
Included in Package | 1 - EDSFF adapter card |
