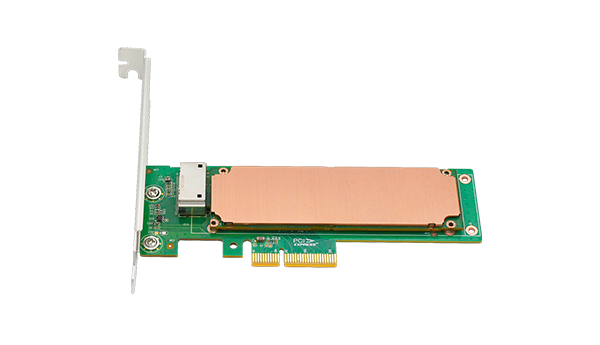

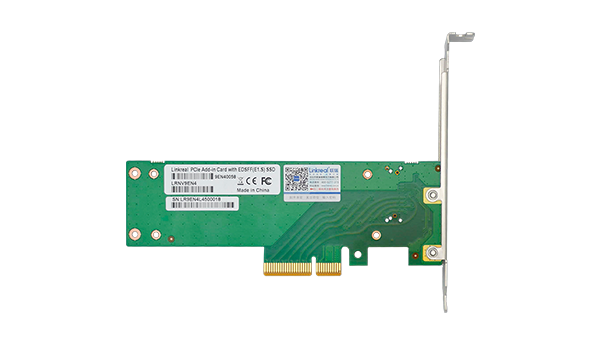

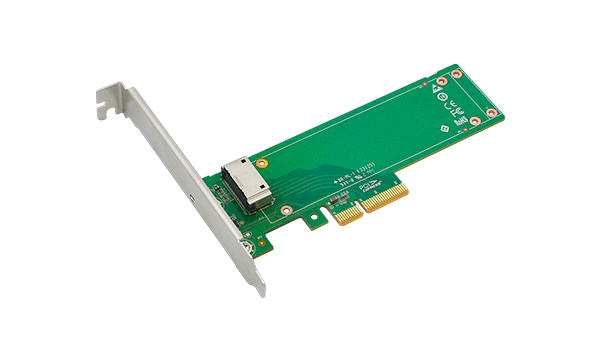

PCIe 4.0 x4 to NVMe EDSFF 1U short E1.S Adapter

Product Model： LRNV9EN4

Product Name： PCIe 4.0 x4 to NVMe EDSFF 1U short E1.S Adapter

Interface： 1*EDSFF

Support： 1*NVMe SSD

Host Bus Type： PCIe 4.0 x4

Overview

Allows a latest generation EDSFF E1.S PCIe 4.0 SSD to be mounted on a PCIe port.
PCIe gen 4.0 x4 controller card (compatible ports 4x, 8x, 16x)
Support PCIe GEN3/4 mainboard, compatible with PCIE Gen2 and Gen1 backwards.
It is recommended to install this adapter card in PCIE Gen3 or higher motherboard slot for better transmission performance.
The mainboard can be used as a system disk or data disk. If you use the mainboard as a system disk, select a mainboard that supports NVMe startup.
Socket EDSFF E1.S 110mm on the board, with fixing screws

Card supplied with High profile and Low profile brackets

Specifications

Model	LRNV9EN4
Drives	1 Internal
Host Bus Type	PCI Express
Interface	EDSFF
Connectors	1*EDSFF
Host Bus Type	PCI Express 4.0 x4
Humidity	15% ~ 90%
Operating Temperature	0°C to 70°C (32°F to 176°F)
Storage Temperature	-25°C to 80°C (-13°F to 158°F)
Dimension	140mm * 50mm
Weight	89.5g
Warranty	2 Years
Shipping weight	137.5g
Packing List	1 -PCI Express EDSFF NVMe Adapter
	1 - Low Profile Bracket
	1 - Full Height Bracket（installed)
