PCIe 3.0 x8 | Mucse N10G | 10G | SFP+ | Quad-port

LRES1030PF-4SFP+

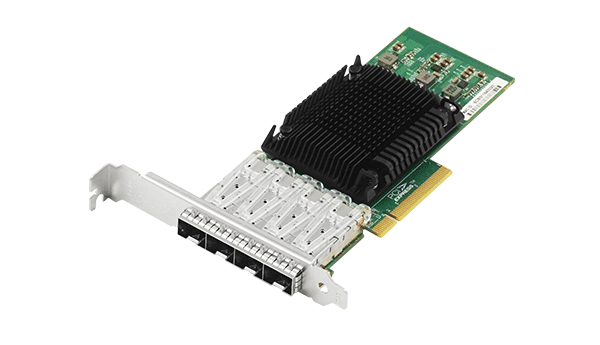

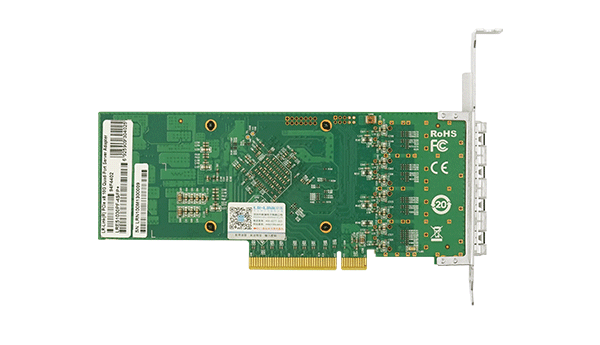

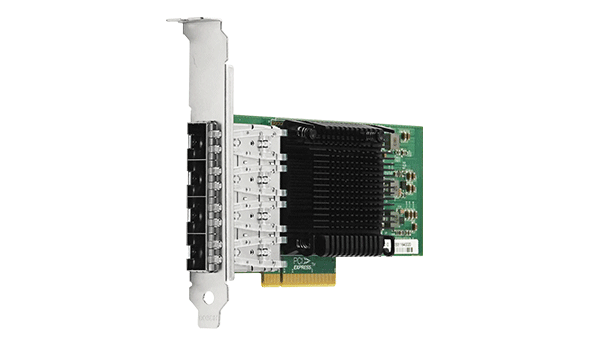

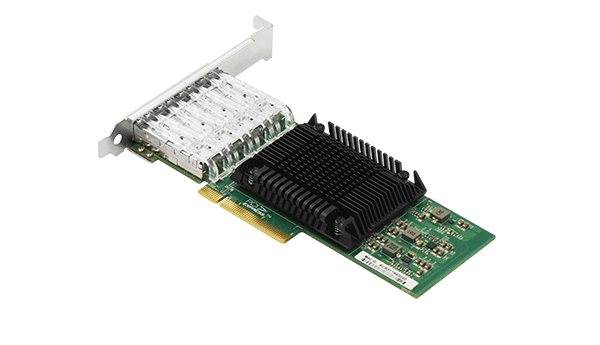

PCIe x8 Quad-port 10G SFP+ Ethernet Network Adapter (Mucse N10G)

10 Gigabit PCIe3.0 x8 optical ethernet network adapter with quad port ;

This adapter is mainly designed to be applied to servers,network security and their application devices;

Intel quad-port Ethernet MAC+PHY controller with 10Gb/s speed;

LRES1030PF-4SFP+

PDF 398.55KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES1030PF-4SFP+ is a PCI Express v3.0 x8 Quad-port 10G SFP+ ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on Mucse RNP N10. This adapter can be compatible with PCIe x16 and PCIe v2.1 .

The ethernet network card (LRES1030PF-4SFP+) with Mucse 's independent intellectual property rights launched by Shenzhen Lianrui Electronics Co., Ltd. has a fully integrated gigabit ethernet media access control (MAC) module and physical layer(PHY) module. It is widely used in network communication, and can also be used on PC servers,network security,embedded and other network devices.

The main controller used by Mucse's independent intellectual property rights and independent controllability, which is of great significance for breaking the monopoly of certain enterprises and ensuring information security.

The controller used by LRES1030PF-4SFP+ is autonomous and controllable. The indicators including data transmission, data network bandwidth, average transmission delay, and actual small packet transmission rate have

Specifications

Controller	Mucse RNP N10
Baffle Height	Half height & full height
Power Consumption	9.5W
Media	Fiber
Fiber type	10GBASE-SR、10GBASE-LR、10GBASE-Cu、1GBASE-SR、1GBASE-LR、1GBASE-Cu
System Support	CentOS / RHRL 7.1~8.5
	Ubuntu 18.04.5 LTS / 20.01.3
	Kylin V10 / Kylin V4.0.2
	UOS V20
Bus Type	PCIe v3.0 x8, compatible with PCIe x16
Data rate	10 Gigabit
Connector	4*10G SFP+

Technical Features

Power over Ethernet management	YES
Protocol Support	IEEE 802.3ae 10 Gigabit Ethernet over fiber IEEE 802.3z Gigabit Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.1AS、IEEE 802.1Q VLAN IEEE 802.3AD、IEEE 802.3ad IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.1P、IEEE 802.3ac
PXE	NO
DPDK	NO
WoL	NO
iSCSI	NO
Jumbo Frames	YES
IPsec\MACSec	YES
Jumbo DataFrame Max	9.6KB
Virtualization function	VEB\VLAN\QinQ\VxLAN\NVRGE

Environment Features

Operating Temperature	0 ℃ to 70 ℃ (32 ℉ to 158 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC , CE , RoHS

Physical Features

PCB Size(mm)	162.368.51.6 (±1~2mm)
Weight(g)	*

Order Information

P/N	Description
LRES1030PF-4SFP+	PCIe x8 Quad-port 10G SFP+ Ethernet Network Adapter (Mucse RNP N10 Chip Based)

Driver

File name	For OS	Version	Upload time	Downlaod
rnpm-0.3.1.tar.gz.zip	Linux	0.3.1	2024-08-14
DPDK driver	Linux	19.11.6	2024-07-19
