LRES2003PT

PCIe 2.1 x4 | Intel I350 | 1G | RJ45 | Dual-port

LRES2003PT

PCIe x4 Dual-port Copper Gigabit Industry Ethernet Adapter (Intel I350)

Dual Port 100/1000Mbps Industry Adapter
PCI Express (PCIe) v2.1(5.0 GT/s) x4 lanes

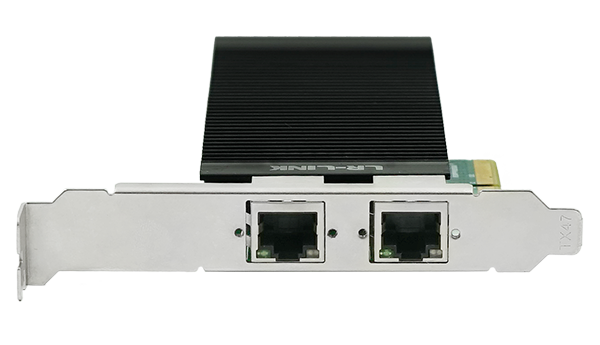

RJ45 Connectivity
Network Virtualization
Data Plane Development Kit (DPDK) support
RJ45 connector with the thickening and sinking of gold

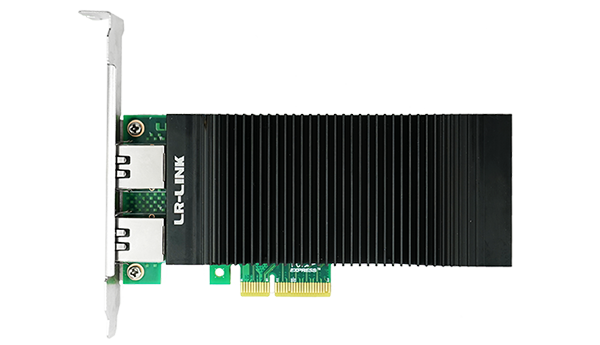

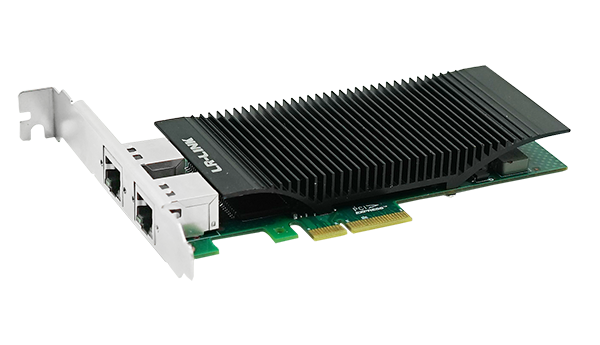

Larger radiator ensures good heat dissipation.
PXE boot
Overview

LRES2003PT is a PCIe v2.1 x4 Gigabit Dual Port Copper Industry Ethernet Adapter based on Intel I350 chipset, and is compatible with PCIe x8 and x16 slot. The adapter is designed mainly used on Machine Vision and Industrial Control, its separate network ports make more convenient to connect industry network cables. The adapter performance has been optimized while being designed to make system I/O no longer the bottleneck of high-end network application. The adapter can be grouped up together through its four ports to expand network bandwidth and ensure network performance. It can also real-time detect automatically and combine the communication route from the faulty port with others to achieve high-performance communications incessantly.




LRES2003PT is developed on the basis of Intel I350 Dual-Port Ethernet MAC+PHY controller, which can allow four ports to work in full-duplex work mode to adapt high-performance network communication in Gigabit Ethernet connection.




LR-LINK Dual-port Gigabit Frame Grabber: LRES2024PT


Specifications

Controller

Intel I350

Transmission Rate Per Port

10/100/1000 Mbps

Network Standard Physical Layer Interfaces

1000BASE-T:Cat 5eor higherup to 100m

100BASE-Tx:Cat5e/6or higherup to 100m

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 55°C (32 °F to 131°F)

Boot Option and Virtualization

PXE support, Intel® VT-c

LED Indicators

1000Mbps/s:Yellow Link and Green Ack

100Mbps/s:Green Link and Green Ack

Operating System Support

Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2

WindowsXP / Vista /7 / 8 / 8.1 / 10

Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later

Linux SLES 9 / 10 / 11or later

VMwareESX/ESXi4.x/5.x/6.xor later

Driver
File name For OS Version Upload time Downlaod
Release_28.2.zip OS Independent v28.2 2024-07-19
