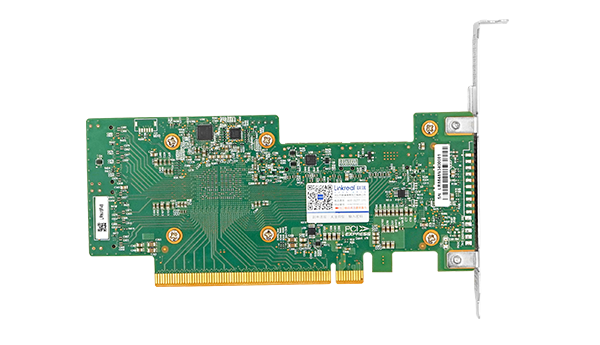

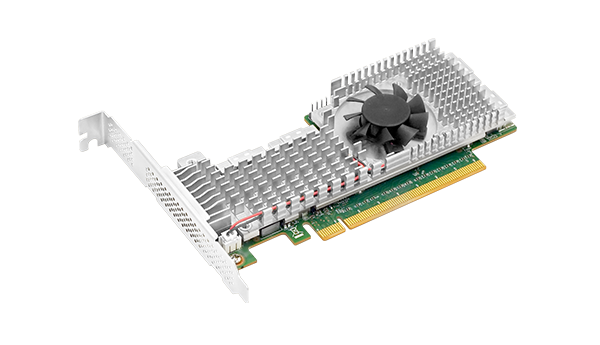

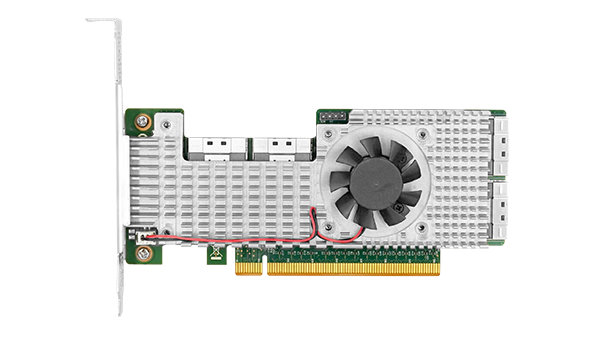

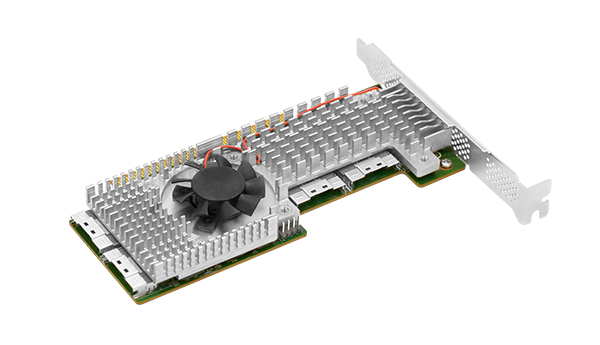

PCIe 4.0 x16 4-port NVMe Switch Adapter

LRNV9F48 is a PCIe 4.0 x16 to 4-port built-in 8654 8I NVMe switch adapter developed by Linkreal CO.,LTD. based on Broadcom PEX88048. LRNV9F48 has 4 built-in 8654 8I ports to connect SSD drives according to different usage scenarios and supports up to 8 PCIe 4.0 SSD connections. The design, combined with large packet memory, flexible common buffer/FC credit pools, and non-blocking internal switch architecture, provides full wire speed on all ports for performance-critical applications such as servers and switch fabrics; up to 6.9GB data transfer rate per port under full load.

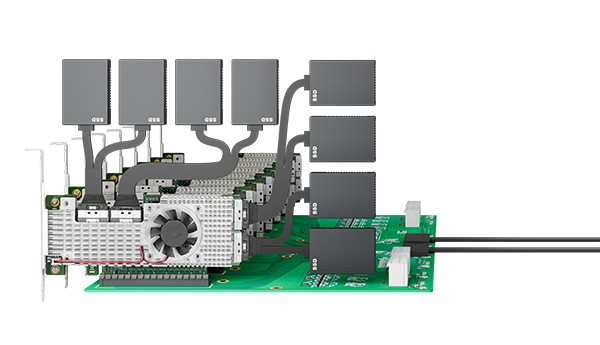

SSD Expansion Solution

SSD Testing Expansion Solution

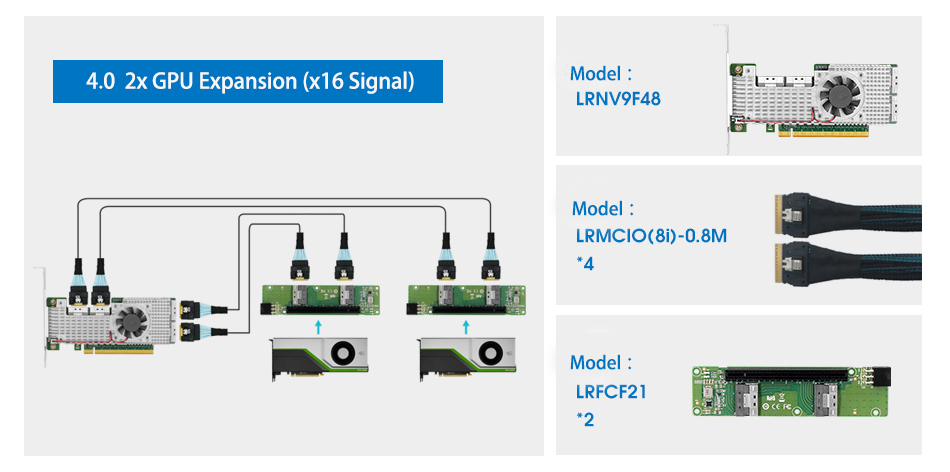

GPU High-speed Expansion Solution

NVMe Expansion Solution
