PCIe 2.0 x4 | mucse N400L-X4 | 10G | SFP+ | Single-port

LRES1050PF-SFP+

PCIe x4 10G Single-port Ethernet Network Adapter (mucse N400L-X4 Based)

Support PCIe Gen 2.0x4;

Equipped with 1 10G SFP+ interface, supporting 1Gbps and 10Gbps data transmission rates;

Working temperature: 0°C~50°C (commercial grade);40°C~85°C (industrial grade)

LRES1050PF-SFP+

PDF 325.97KB

Download

More Support

Overview Specifications

Overview

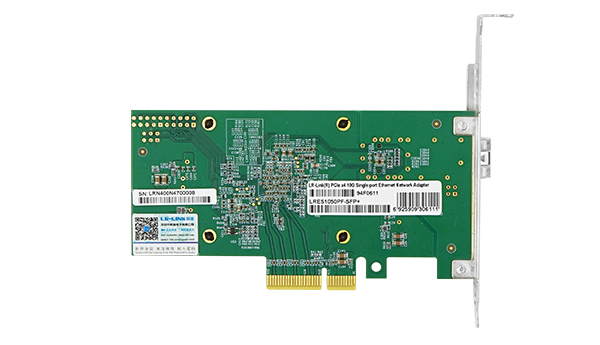

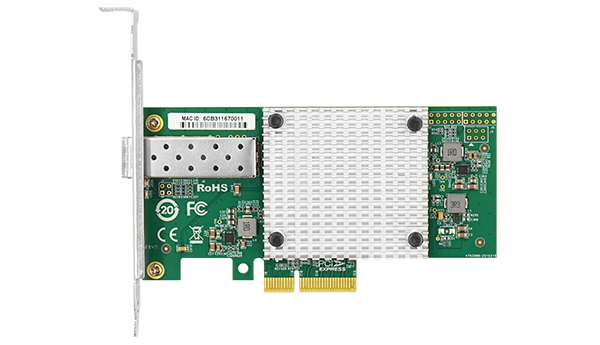

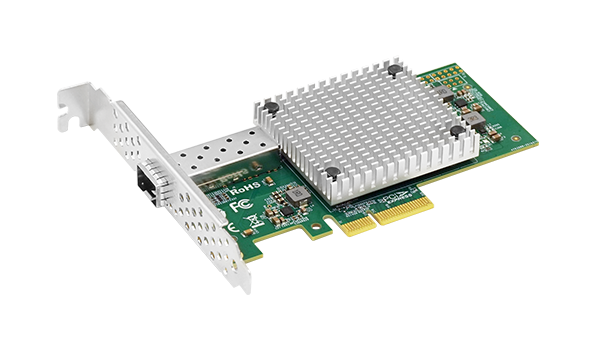

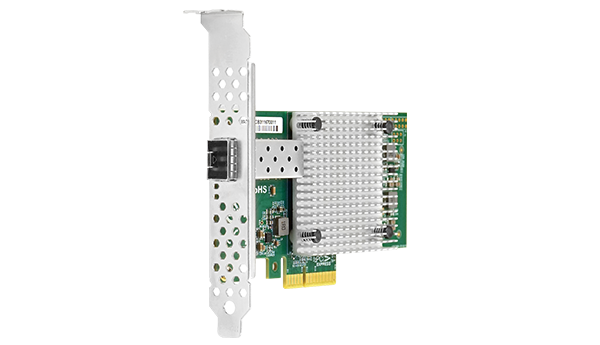

LRES1050PF-SFP+ is a PCIe2.0 x4 10G SFP+ single-port Ethernet network adapter developed by Linkreal Co., Ltd. based on the N400L-X4 master control scheme. It supports 1Gbps and 10Gbps data transmission rates, and is compatible with PCIe x8 and PCIe x16 slots. This adapter realizes 100% localization of materials and chips, improves the independent controllability of the product, and ensures the security and reliability of the product, in line with the national information security strategy requirements.It has rich and diverse functions, including network packet offloading, virtual SR-IOV application and PXE remote network start-up, etc., which meets the network needs in different scenarios.Whether in network security equipment, industrial application host, or in servers, desktops and embedded network devices and other fields, LRES1050PF-SFP+ can show its efficient, stable and reliable performance, providing users with excellent network connection experience.

Specifications

Model	LRES1050PF-SFP+
Controller	mucse N400L-X4
Cable medium	Optical fiber
Fiber Type	10G Base-SR、10G Base-LR
Bracket Height	Full height & half height
Min Power(w)	4.152W
Max Power(w)	4.908W
Connector	1 * 10G SFP+
Bus Type	PCIe v2.0 (5.0GT/s) x4; x8, x16 compatible
Data rate per port	1G/10Gbps
Power Supply	PCIe
Protocol Support	IEEE 802.1P IEEE 802.1Q IEEE 802.2 IEEE 802.3ac IEEE 802.3az IEEE 802.3x IEEE 802.3z IEEE 802.3ad
PXE	Yes
DPDK	No
WoL	No
UEFI	Yes
SR-IOV	Yes
1588 PTP	Yes
Jumbo Frames	9.5KB
RSS	8
System Support	* RHEL/Centos7.6/7.9/8.2/8.3 * Deepin 20/ 20.6/ 20.9(deepin) * Ubuntu 18.04.5/20.04.1 * Ubuntu 22.04.2/22.04.3 * ZTE New Fulcrum 3.2.2/5.0.5 * Galaxy Unicorn v10 * NeoKylin 7.6	* Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Tongxin UOS 20 * Emind OS * OpenKylin 0.7.5

10G	Connection Status	Green Link + Green Link
10G	Transfer status	Green Link + Green Blink
1G	Connection Status	Orange Link + Green Link
1G	Transfer status	Orange Link + Green Blink

Operating Temperature	0℃ to 50℃ (32 ℉ to 122 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC，CE，RoHS
