LRNV9511

PCIe 4.0 x4 | M.2 M Key & M.2 B Key | Quad-port

LRNV9511

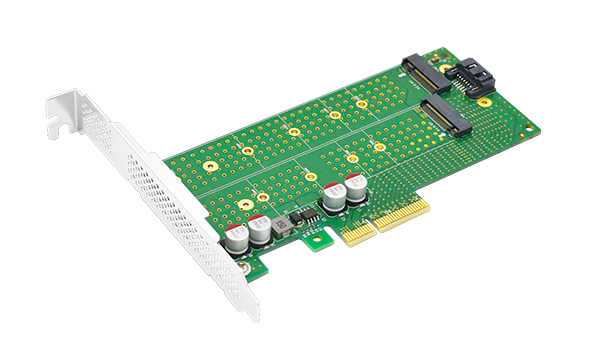

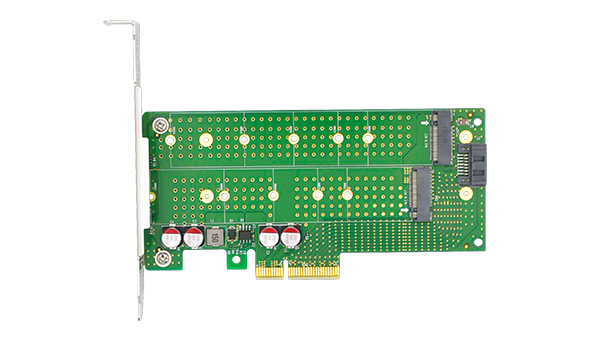

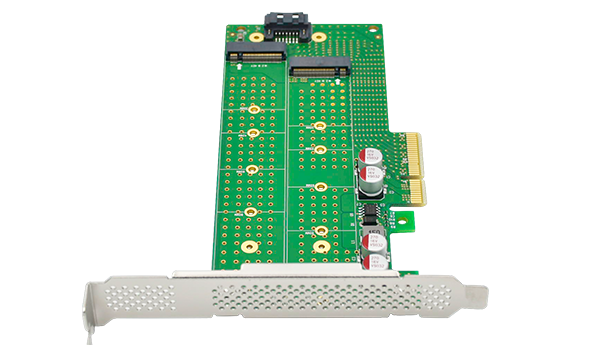

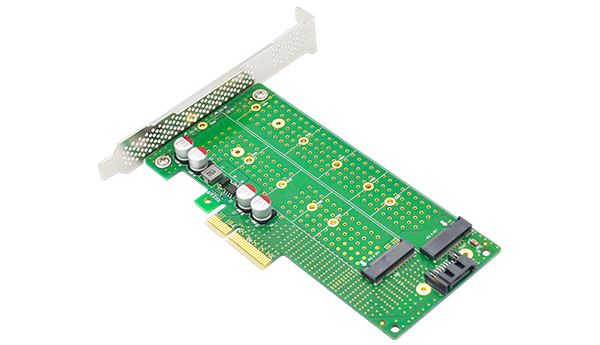

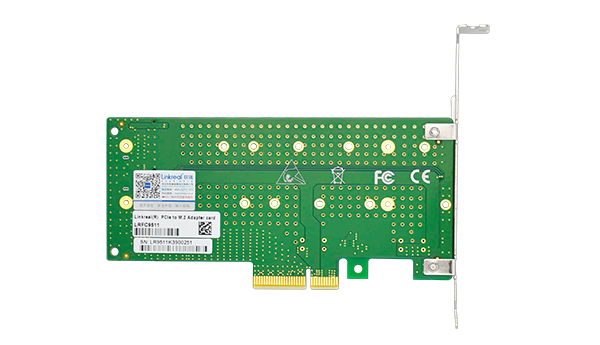

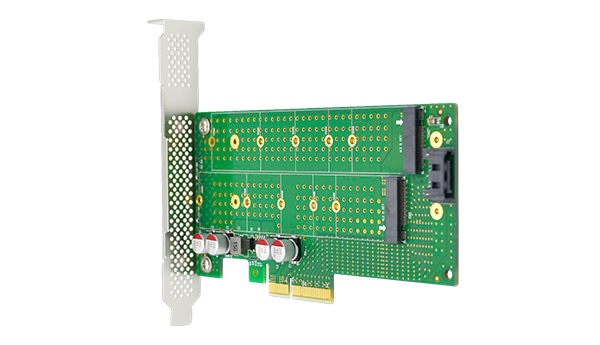

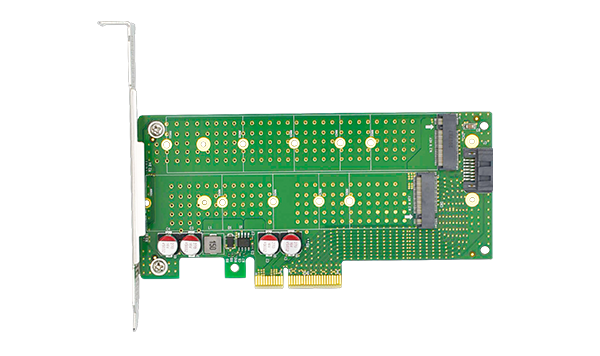

LRNV9511 PCIe x4 M.2 Nvme SSD Adapter

Product Model:LRNV9511
Product Name:2 Port PCIe x4 to M.2 NVMe SSD NGFF Adapter
Interface Type:1*M.2 M Key&1*M.2 B Key(SATA) Connectors
Support Equipment:1*M.2 NVMe SSD&1*M.2 SATA SSD for 2230,2242,2260, 2280 and 22110mm
Host Bus Type:PCIe 4.0 x4&SATA
Overview

LRNV9511 connects PCIe 4.0 to M.2 M key connector, It connects a PCIe M.2 SSD to your computer through an available x4 PCI Express expansion slot to boost system speed and increase internal data storage




Get ultra-fast data access, ideal for gaming or high-performance workstations, Install your operating system on an M.2 PCIe based drive for fast access, while keeping larger platter drives available for bulk storage




LR-LINK PCI Express x16 to Quad M.2 NVMe SSD Switch Adapter: LRNV9547L-4I




Boost your system speed and performance


The expansion card connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 3.0 and PCIe 2.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.




Supports PCIe M.2 SSDs


The adapter supports PCIe 4.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2230, 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm, 42 mm and 30mm.




Easy to install


The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.




Applications


Increase the internal storage capacity of your standard or small form-factor computer.


Access and recover data from almost any M.2 SSD, such as drives pulled from laptops and other computers.


Optimize your system for I/O intensive applications such as office suites, photo and video editing, and media players.


Specifications

HARDWARE

Model

LRNV9511

Number of Drives

2 internal

Host Bus Type

PCI Express

Compatible Device

M.2 (M-Key + B-Key)

Interface

PCI Express

CONNECTOR(S)

Device Connector

 M.2 (M-Key + B-Key)

Host Connector

PCI Express 4.0 x4

ENVIRONMENTAL

Humidity

20% ~ 80%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Product Dimension

69mm*139mm

Product Weight

65g

WARRANTY INFORMATION

Warranty

2 Years

PACKAGING INFORMATION

Shipping Weight

4.5 oz [127 g]

WHAT'S IN THE BOX

Included in Package

1 - M.2 PCIe SSD Adapter

1 - low-profile bracket

1 - full-profile bracket (installed)

2- Screw & Nut for SSD
