In today's era of rapid advancement in industrial automation, machine vision, and intelligent surveillance, stable, high-speed data transmission solutions with integrated power supply have become an essential requirement. Traditional network connections often face multiple challenges, including complex cabling, the need for separate power supplies, and bandwidth bottlenecks. The LRES2680PT-PoE from LR-LINK, a high-performance network adapter integrating 5G network card high-speed transmission with PoE network card power supply functionality, is gaining significant attention in industrial vision and edge computing due to its outstanding real-world performance. This article will delve into the core advantages of this industrial camera network card, which approaches 10 Gigabit Ethernet performance levels, based on detailed official test reports.

I. Core Product Positioning: High-Performance PoE Network Adapter Designed for Visual and Automation Applications

The LRES2680PT-PoE is a PCIe Gen3 quad-port Frame Grabber card based on the Realtek RTL8126 controller. Its core value lies in deeply integrating single-port data transmission capabilities up to 5Gbps (equivalent to a 5000Mbps network card) with the IEEE 802.3at PoE+ power supply standard. With a maximum PoE output of 30W per port and a combined total of 90W across all four ports, it can directly power multiple high-power industrial cameras, smart cameras, and various sensors. This perfectly embodies the design philosophy of integrating a vision network card with power delivery (PoE).

II. Real-World Performance Revealed: Approaching 10 Gigabit 5G Speed with Industrial-Grade Reliability

According to the LRES2680PT-PoE test report, this poe nic card demonstrated outstanding performance that comprehensively surpasses commercial-grade standards under rigorous testing conditions.

1. Ultimate Bandwidth and Ultra-Low Latency:

Bandwidth Throughput: In professional testing, its TCP bandwidth reached 4.95Gbps and UDP bandwidth hit 4.96Gbps, fully unleashing the potential of 5G network cards. Performance approaches half the bandwidth of 10G network cards, easily handling concurrent data streams from multiple high-definition/4K industrial cameras.

Network Latency: Using the qperf tool, TCP latency dropped to 74 microseconds, while UDP latency was only 68.2 microseconds. This provides critical assurance for applications demanding extreme real-time responsiveness, such as machine vision inspection and robotic guidance.

2. Industrial-Grade Stability and Compatibility:

Environmental Adaptability: Passed rigorous testing including 24-hour full-load operation at -10°C and 60°C, plus 72-hour continuous full-load stability at ambient temperatures. No connection drops or performance anomalies occurred, demonstrating robust wide-temperature operation.

Broad Compatibility: Tested across major Windows and Linux distributions, showcasing strong ecosystem adaptability.

Electrical Protection: ESD contact discharge protection rated at ±8KV (Class A) and surge protection up to 4KV provide robust shielding against complex electromagnetic environments in industrial setting

III. In-Depth Analysis of POE Functionality: Secure, Flexible, and Manageable

As a core selling point, its poe nic card functionality extends far beyond basic power delivery:

High-Power Flexible Power Supply: Single-port 30W output effortlessly supports high-end industrial cameras with heating, zoom, or high frame rate capabilities.

Dual Safety Protection: Features a “recoverable electronic fuse” design to prevent overcurrent damage; Software switches and redundant physical hardware switches ensure remote management convenience while guaranteeing physical power disconnection safety in emergencies.

Intelligent Management Tools: Equipped with dedicated PoE management software, it supports real-time monitoring of each port's power status, current, voltage, and power consumption. Remote individual power control significantly reduces operational complexity.

IV. Professional Features: Jumbo Frames and Advanced Network Management

Jumbo Frame Support: As a qualified Jumbo Frame network card, it supports frames up to 16KB. Testing confirmed successful transmission of 16,128-byte Jumbo Frames. This feature effectively reduces protocol overhead, enhances transmission efficiency for large data blocks (e.g., image streams), and further maximizes the bandwidth potential of 5000Mbps network cards.

VLAN and Advanced Features: Supports VLAN tagging, traffic shaping, and multi-queue processing. This facilitates traffic isolation and priority management in complex network environments, meeting the multi-tiered architecture requirements of industrial networks.

V. Core Application Scenarios: Empowering Smart Manufacturing and Intelligent Sensing

The LRES2680PT-PoE is undoubtedly the ideal choice for the following scenarios:

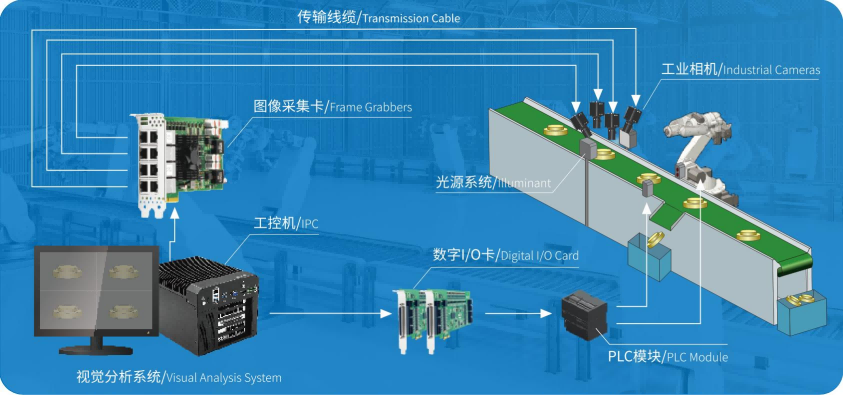

1. Machine Vision and Industrial Inspection: As a high-performance industrial video frame grabber card, it can simultaneously connect multiple high-resolution cameras for high-speed, real-time component defect detection and product dimensional measurement. Direct power supply via PoE simplifies system integration.

2. Smart Security and Traffic Monitoring: In smart city and campus safety applications, it drives multiple high-bitrate network cameras, enabling uncompressed, low-latency transmission of HD video streams while resolving power acquisition challenges.

3. Automated Production Lines and Robotics: Provides stable, high-speed data links and power supply for vision guidance systems on AGVs and robotic arms, ensuring production cycle times.

4. Edge Computing Gateway: Within edge servers, it aggregates data from various front-end sensing devices. Its high bandwidth and PoE capabilities are key to enabling “one card, multiple functions” at edge nodes.

Summary

Through comprehensive testing, the LRES2680PT-PoE from Lianrui Electronics demonstrates it is more than a standard 5G or PoE network card. It is a highly integrated data and power transmission solution engineered for demanding industrial environments. It achieves an exceptional balance between near-10GbE performance, industrial-grade reliability, intelligent PoE management, and professional jumbo frame support. For engineers and system integrators seeking to enhance vision system performance, simplify cabling architecture, and ensure system stability, this vision network card represents a reliable, future-proof, domestically produced high-end option.
