In AI servers and high-performance storage systems, reliable transmission of high-speed signals is fundamental to stable system operation. The LRSV9501-2E is a PCIe 5.0 x16 dual-port MCIO Retimer expansion card launched by  Linkreal  Co., Ltd. (LR-LINK). Based on the  BCM85657 controller, it delivers high-performance signal expansion capabilities for data centers and AI infrastructure. This article provides an in-depth analysis of the product from technical specifications, functional features, application scenarios and other dimensions.

Product Overview & Core Specifications

The LRSV9501-2E（Go to purchase） features a low-profile, half-length design (170mm × 68.9mm), compatible with standard servers and compact AI workstations. It comes with both 3U and 2U brackets to fit different chassis.

Core Specifications

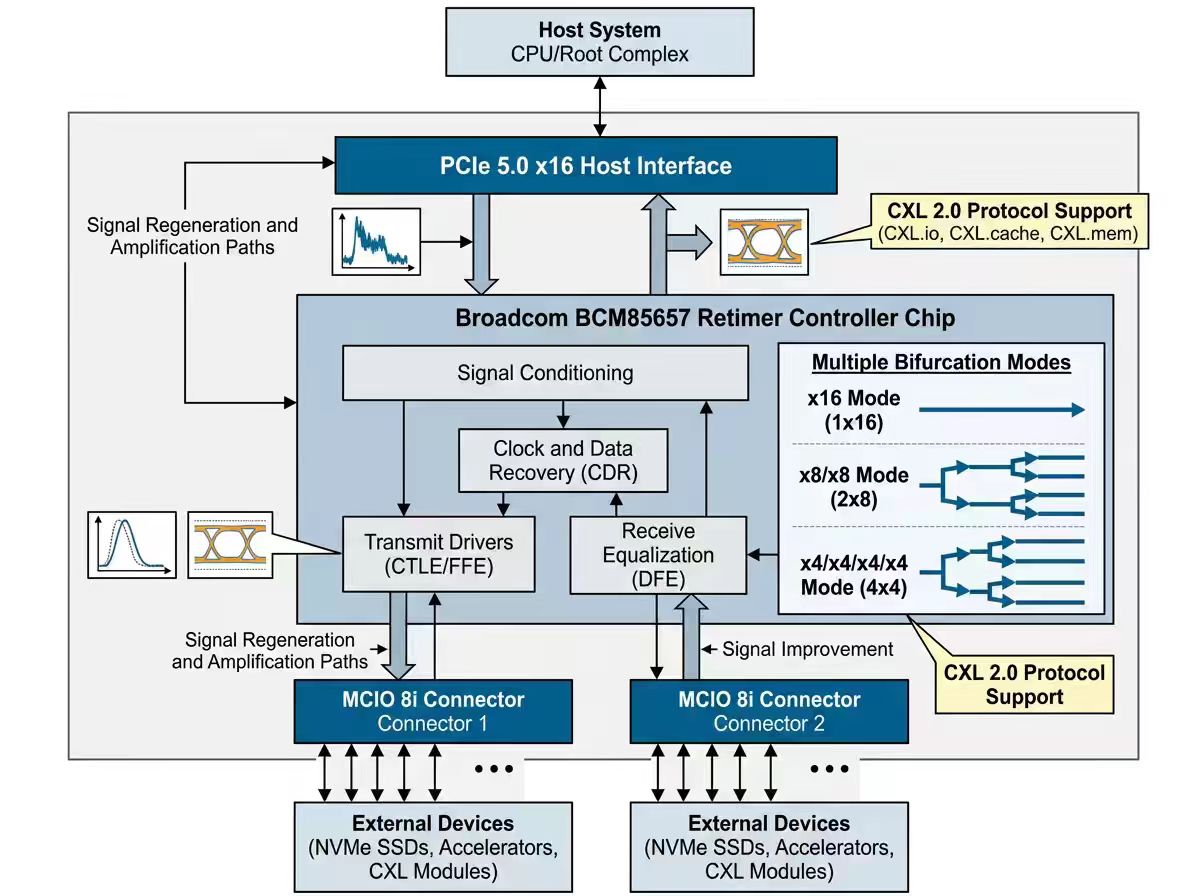

Overview of Broadcom BCM85657 Controller

The LRSV9501-2E uses the Broadcom BCM85657, a high-performance PCIe 5.0/CXL 2.0 Retimer chip. It is purpose-built to resolve signal integrity issues in high-speed transmission and is widely used in AI servers, high-end storage systems and data center interconnection.

Key Technical Features

· 16-Lane PCIe 5.0 Support: Full x16 PCIe 5.0 link at 32GT/s per lane

· CXL 2.0 Compatibility: Complete support for CXL.io, CXL.cache and CXL.memory

· Signal Regeneration: Restores amplitude and timing via CDR and retiming

· Protocol-Transparent Forwarding: Fully transparent to upper-layer protocols, no driver required

· Low-Latency Design: Optimized signal path to minimize transmission delay

PCIe Lane Bifurcation Modes

The LRSV9501-2E supports flexible PCIe lane bifurcation to match downstream device requirements:

1×16 Mode

All 16 lanes operate as a single link, ideal for high-end GPUs or high-performance network adapters. Delivers maximum bandwidth for bandwidth-critical applications.

2×8 Mode

16 lanes split into two x8 links, supporting two devices simultaneously. Suitable for dual-GPU setups or GPU+NIC combinations.

4×4 Mode

16 lanes split into four x4 links, supporting four devices at once. Optimized for high-density storage expansion such as multi-port NVMe SSDs.

MCIO Interface & Cable Connection

The LRSV9501-2E is equipped with two MCIO 8i external connectors for high-speed cable connections to external devices. MCIO (Mini Cool Edge IO) is a next-generation high-speed interconnect standard optimized for PCIe 5.0 and CXL.

Advantages of MCIO

· High Signal Integrity: Optimized pin layout and shielding for PCIe 5.0 signals

· Compact Size: Saves space vs. traditional connectors, ideal for high-density deployments

· Cable Extension: Enables external device connection beyond chassis limits

· Hot-Plug Support: Simplifies maintenance and online expansion

Via MCIO cables, the LRSV9501-2E can connect to: NVMe SSD expansion backplanes, GPU compute nodes, CXL memory expansion modules, high-speed network adapters and more.

CXL 2.0 Protocol Support

The LRSV9501-2E fully supports CXL 2.0, a key technology for next-generation data center interconnection. Built on the PCIe 5.0 physical layer, CXL adds memory-semantic access and cache coherence.

Key CXL 2.0 Features

· Memory Pooling: Shared memory resources across multiple devices to improve utilization

· Cache Coherence: Accelerators such as GPUs access CPU cache directly, reducing copy overhead

· Switch Support: Enables complex topologies via CXL 2.0 switching

For memory-intensive AI training and HPC workloads, CXL memory expansion paired with the LRSV9501-2E’s signal enhancement enables high-performance memory pooling.

Wide System Compatibility

The LRSV9501-2E supports mainstream server operating systems:

Global OS: Windows, Windows Server, RHEL, CentOS, Ubuntu, Debian, SUSE, Rocky Linux, FusionOS, VMware ESXi

As a protocol-transparent device, the LRSV9501-2E is plug-and-play with no dedicated driver required, simplifying deployment and maintenance.

Typical Application Scenarios

AI Server GPU Expansion

In AI training servers, the LRSV9501-2E expands external GPU chassis via MCIO cables, overcoming motherboard slot limits to build large-scale GPU clusters. Retimer ensures signal integrity over long distances.

High-Density NVMe Storage Expansion

In software-defined storage and all-flash arrays, the card connects external NVMe SSD backplanes. 4×4 bifurcation supports four x4 NVMe devices for high-density storage scaling.

CXL Memory Expansion

For memory-hungry applications, the card connects CXL memory modules to add terabytes of RAM. CXL 2.0 guarantees cache-coherent memory access.

High-Speed Network Interface Expansion

For 100G/200G/400G network adapters, the LRSV9501-2E provides full PCIe bandwidth and robust signal integrity.

Selection & Deployment Guidelines

· Motherboard Compatibility: Verify PCIe 5.0 and target bifurcation support

· Thermal Design: Ensure adequate chassis airflow for up to 12W power dissipation

· Cable Selection: Use standard-compliant MCIO high-speed cables

· Lane Planning: Preconfigure bifurcation based on downstream device needs

Conclusion

With the Broadcom BCM85657 controller, flexible lane bifurcation, CXL 2.0 support and MCIO high-speed interfaces, the LRSV9501-2E delivers powerful signal expansion for AI servers and high-performance storage. In the PCIe 5.0 era, Retimer technology is essential for reliable high-speed transmission.

For enterprises building AI infrastructure or upgrading storage systems, the LRSV9501-2E offers a high-performance, highly compatible signal expansion solution worthy of evaluation.
