LRUA9252H-232

One-Lane PCIe to 2-Port RS232 Serial Card

Support PCIe x1 and is compatble with all kinds of PCIe slots(x16 included)

Support PCI Express 2.0 Gen 1 and PCI Power Management1.2

Support Industrial Standard16C450/16C550 UART

Full-height bracket only

256Byte of TX and RX FIFO, On-board hardwares, sofwares flow control and burst datagram.

High communicaton rate of 921.6Kbps, communicaton distance of 15m

Support traditonal interrupt, MSI interrupt and ASPM power management

Support Windows(Vista, 2003, XP, 2000), Linux etc.

LRUA9252H-232

PDF 1.59MB

Download

More Support

Overview

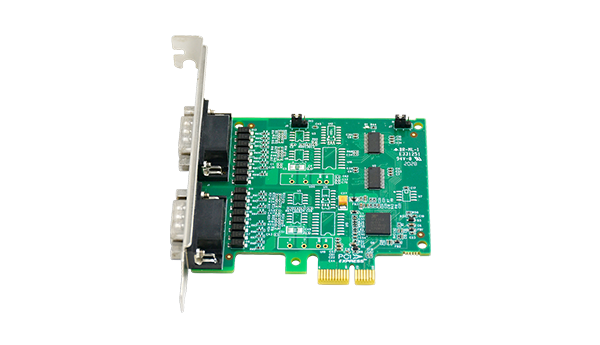

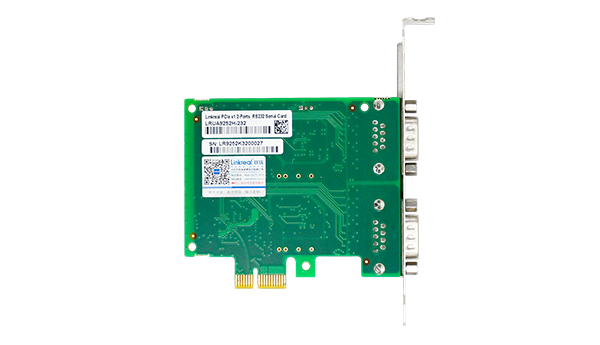

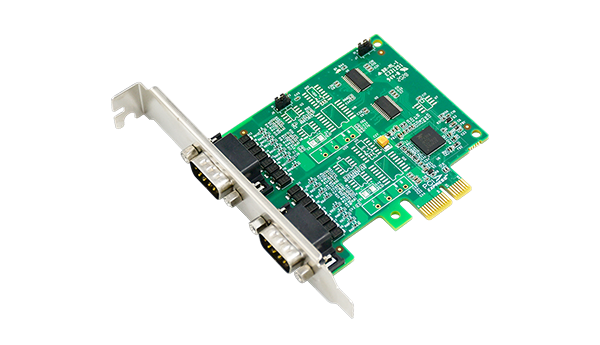

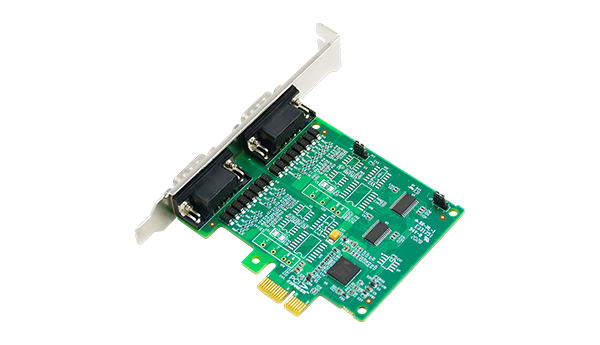

Product LRUA9252H-232 uses EXAR XR17V352 chipset soluton to expand two standard RS-232 Serial ports(DB9 Pin) through PCIe slot. It can connect multple serial devices at the same tme such as PC, printer scanner and so on to provide modulaton and control signals so to ensure the compatbility of peripheral equipment. Each port can reach to 921.6Kbps.

Driver

File name	For OS	Version	Upload time	Downlaod
LRUA9254-485,LRUA9254-232,LRUA9252-232linux_driver_v2.6	Linux	v2.6	2024-08-15
LRUA9254-485,LRUA9254-232,LRUA9252-232	Windows	5.1.0.0	2024-08-15

PCIe 2.0x1 | XR17V352 | RS232

One-Lane PCIe to 2-Port RS232 Serial Card
