PCIe1.1 X1 | CH382L | IEEE1284 | 1MB/s

LRUA9282-LPT

PCIe x1 Single-port Parallel Adapter (CH382L Based)

Comply with IEEE1284 parallel port protocol;

Supports domestically produced CPUs such as Feiteng and Kirin;

Miniature design, easy to install;

Supports two-way data transmission and supports a maximum transmission speed of 1MB/s.

LRUA9282-LPT

PDF 314.52KB

Download

More Support

Overview Specifications

Overview

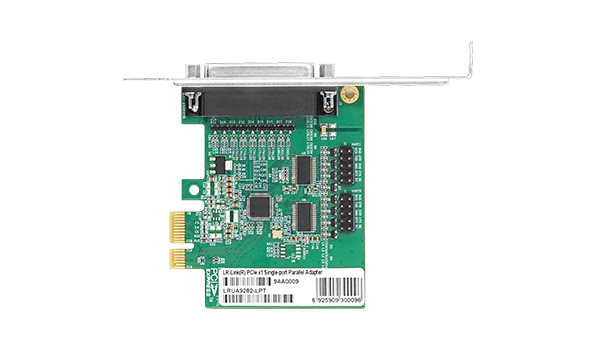

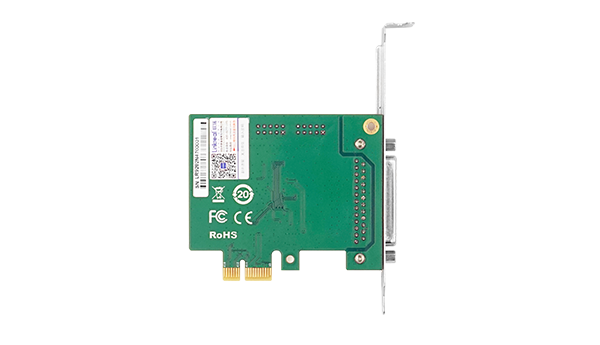

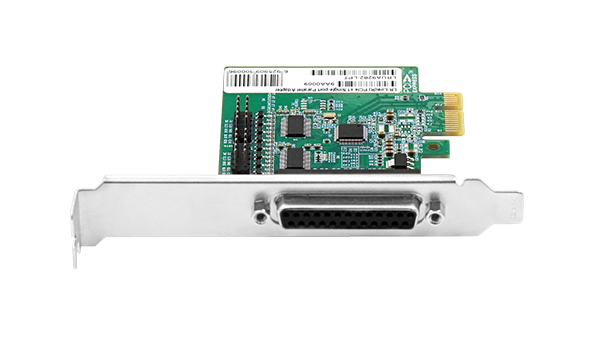

LRUA9282-LPT is a PCIe X1 single-port parallel adapter based on CH382L chip. The adapter adopts a single parallel port design and supports plug-and-play without any driver. It has the characteristics of strong compatibility, compact appearance, and low power consumption. It is suitable for various scenarios that require high-speed parallel port data transmission, such as printers, scanners, external storage devices, etc., providing users with a convenient and efficient data transmission experience.

Specifications

Model	LRUA9282-LPT
Controller	CH382L
Bracket Height	Low Profile & Full Height
Power (max)	500mW
Bus Interface	PCIe1.1 X1
Data rate per port (max)	1MB/s
Connector	IEEE1284 parallel port/printing port
Power Supply	PCIe
ESD	Contact discharge	±8KV
Operating System Support	* Windows 7/8/8.1/10/11 * Windows Server 2012/2016 * Windows Server 2019/2022 * Galaxy Unicorn KOS 2303（AMD）	* Tongxin UOS 20 1060（AMD） * Galaxy Unicorn KOS 2303（ARM） * Tongxin UOS 20 1060（ARM）
Power Indicator	Green Link

Operating Temperature	0℃ to 80℃ (32℉ to 176℉)
Storage Temperature	-20℃ to 85℃ (-4℉ to 185℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS

PCB size(unit:mm)	8068.91.6mm
Package size (unit: mm)	17915030mm

Baffle specifications	Full bracket(installed) and Low bracket
Parallel Adapter	*1
Product warranty card	*1
Packing	Carton and Blister box
