Home
Products
Storage Expansion Cards
Server Backplane
SAS+SATA
Key Features
1. Ideal for high capacity and other storage applications
2. SDK and tool suite support, easy integration
3. Scalability and fault-tolerant path redundancy
Key Features
1.Support 12*SATA/SAS Hard Disk(12G)
2.Support 2.5/3.5 Inch Hard Disk
3.Support Solid State Drive&Mechanical Hard Disk

SAS+SATA

A backplane in a server is a circuit board that serves as a central connection point for various components within the server. It provides a physical framework for connecting and interconnecting various modules, such as the CPU, memory, storage devices, and input/output.
Features

ODM Sever

Providing customized backplane services according to the customers’needs.

Increased Reliability

A backplane ensures your system can still work if a component is faulty.

High Efficiency

Backplanes make computer systems easier to build and maintain, and help improve efficiency and reliability.

Simple Connectivity

It provides a neat base during assembly and cuts down on the possibility of error that could come from complicated wiring.
Series Products

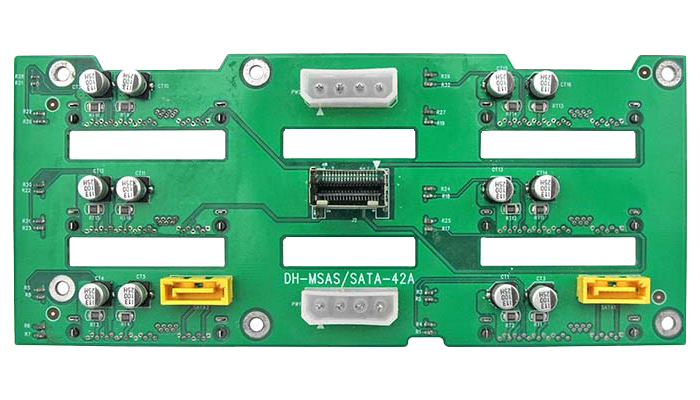

LR-MSAS-SATA-42A

6-Slot Backplane Board | Support Solid State Drive | Support Mechanical Hard Disk

Product
6G LR-MSAS-SATA-42A
View Products
LR-6GSAS05B-00-T1

5-Slot Backplane Board | Support 5*SATA/SAS Hard Disk | Support 2.5/3.5 Inch Hard Disk

Product
View Products
LR-H12G24A

24-Slot Backplane Board | Support 2.5/3.5 Inch Hard Disk

Product
View Products
LR-H12G16A

16-Slot Backplane Board | Support 2.5/3.5 Inch Hard Disk

Product
View Products
LR-H12G12A

12-Slot Backplane Board | Support 2.5/3.5 Inch Hard Disk

Product
View Products
24GU2-02A

PCIe 3.0 x8 | 2 Port NVMe Backplane Board

Product
Product Model： 24GU2-02A
Product Name： SFF-8654 8i to 2 Port SFF-8639(U.2) Backplane Board
Interface： SFF-8654 8i
Support： 2*U.2 devices
PCIe Bus Type： PCIe 3.0 x8
View Products
32GNVMe08E-00-G1

8-slot Backplane Board | Support Solid State Drive | Support Mechanical Hard Disk

Product
8-slot Backplane Board
View Products
Filter Criteria:
Resetting
Filtered out: 7 products
Power Supply
Interface Type
Support
Model Power Supply Interface Type Support Contrast
LR-MSAS-SATA-42A 4Pin Power Supply SATA SATA/SAS Hard Disk
LR-6GSAS05B-00-T1 4Pin Power Supply SATA SATA/SAS Hard Disk
LR-H12G24A 4Pin Power Supply 8087 SATA/SAS Hard Disk
LR-H12G16A 4Pin Power Supply 8087 SATA/SAS Hard Disk
LR-H12G12A 4Pin Power Supply 8643 SATA/SAS Hard Disk
24GU2-02A PCIe 3.0 x8 8654 U.2 devices
32GNVMe08E-00-G1 4Pin Power Supply 8643 SATA/SAS Hard Disk
