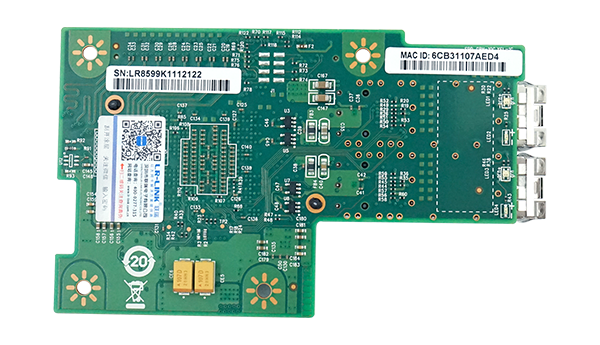

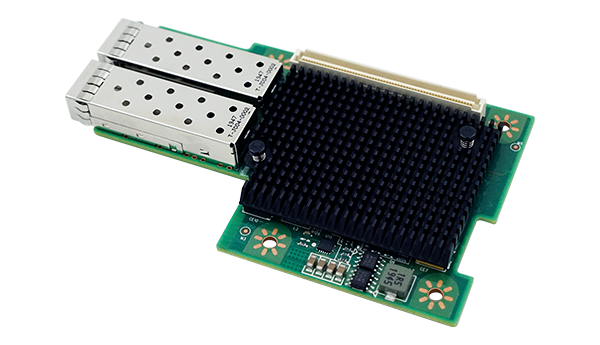

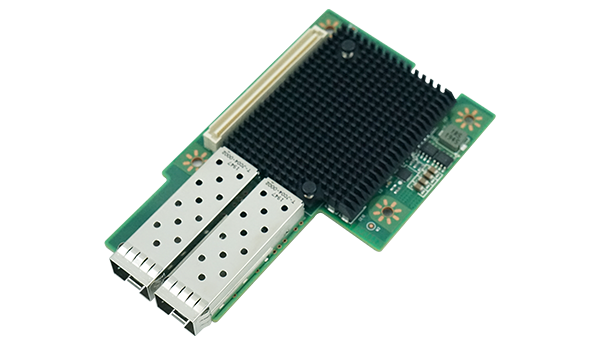

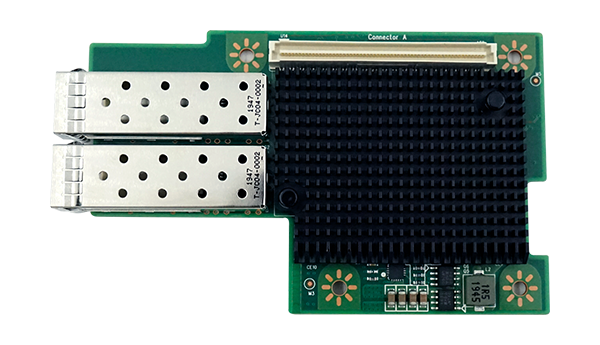

OCP Type-1 Dual-port 10G SFP+ Mezzanine Ethernet Network Adapter ( Intel 82599)

LRES3002PF-OCP is OCP Type-1 10 Gigabit dual port fiber optic Ethernet server adapter card developed by Shenzhen Lianrui Electronics Co., Ltd. based on Inetl 82599. The design of the server adapter card is based on server-oriented and High-end equipment. This server adapter makes it easy to share the more efficient servers and data centers in the general IT industry.

The server adapter comes with two fully integrated 10 Gigabit Ethernet Media Access Controller (MAC) and SFP+ ports. In addition to the functions of managing the Ethernet MAC and PHY layers, it also exchanges data and links. , physical layer, logical layer and packet traffic management. It can also share tasks for hosts through hardware acceleration, such as TCP/UDP/IP verification, computing tasks, and TCP segmentation.

LRES3002PF-OCP provides hardware-enhanced features such as intelligent queuing technology optimized for multi-core processors, with on-chip support for load balancing for higher levels of 10 Gigabit Ethernet scalability. Offering Intel Virtualization Technology (VTc), including network level, can significantly improve overall system performance in a virtual server environment. Intel VT-c technology includes several hardware optimization features that dramatically reduce I/O bottlenecks, increase throughput and reduce latency. Intel VT-c's Component Virtual Machine Device Queue (VMDq) significantly improves performance and reduces CPU utilization by offloading the data sorting load from the virtual machine monitor (VMM) to the network controller. The latest enhancements include off-machine virtual machine swapping, virtual machine direct attach (VMDc) to virtual machines, providing near-perfect performance.

LRES3002PF-OCP provides multiple hardware optimization features for I/O virtualization and supports a unified network to transform the data center with outstanding reliability, scalability and mobility. Allows local area network (LAN), storage area network (SAN), and IPC traffic to share the same Ethernet network, providing higher levels of performance support for high-bandwidth applications in evolving virtualized data centers. The adapter provides storage over Ethernet optimization.
