LRSU9A72-4A

PCIe 2.0 x4 | NEC uPD720202 | USB 3.0 | Type-A | 5Gbps | Quad-Port

LRSU9A72-4A

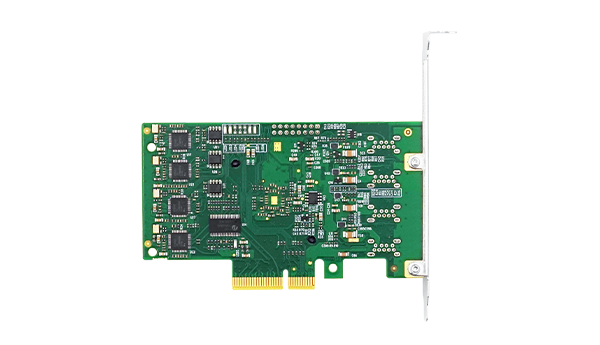

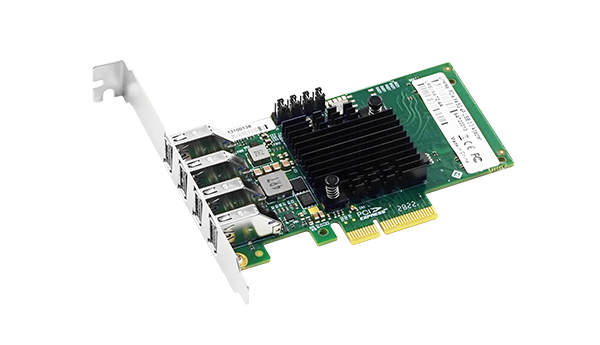

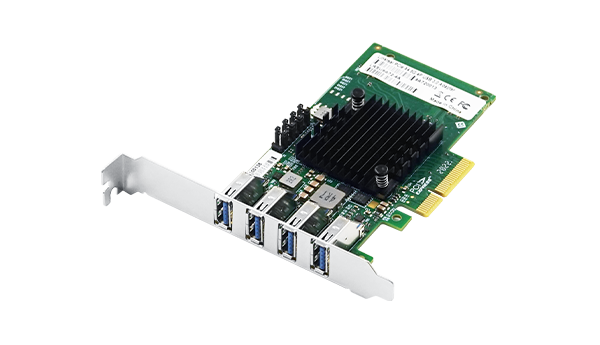

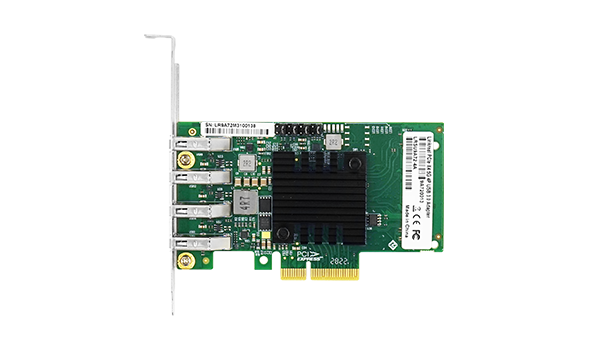

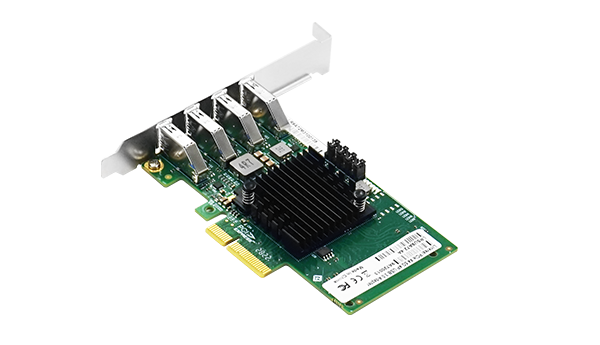

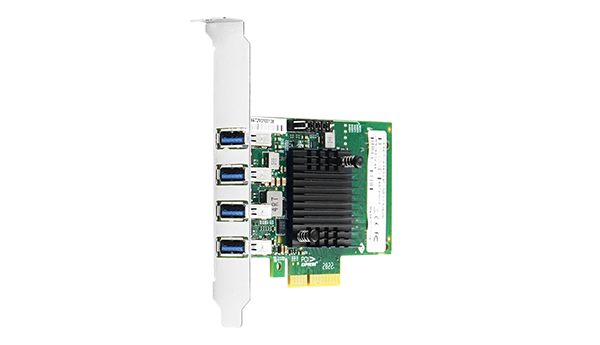

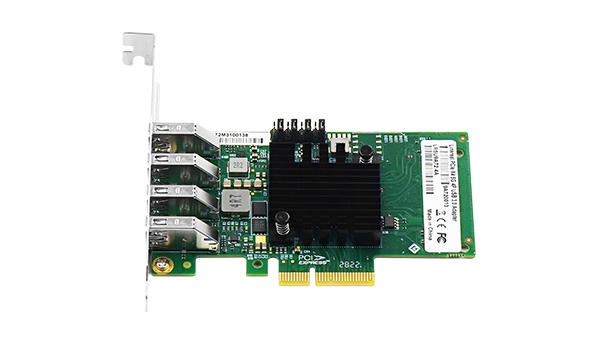

LRSU9A72-4A PCIe x4 4-Port USB3.0 Card

Product Model:LRSU9A72-4A

Product Name: 4 Port 5Gb/s PCIe x4 USB3.0 Adapter Card

Main Chipset: NEC uPD720202

Interface Type: 4 USB 3.0 Type-A Connectors

Host Bus Type: PCIe 2.0 x4

Transfer Speed: 5Gb/s

LRSU9A72-4A

PDF 1.66MB

Download

More Support

Overview Specifications Driver Related products

Overview

Product Descripton

LRSU9A72-4A is an 4-port USB3.0 host adapter specififically designed for industrial and vision applicatons. USB3.0 or SuperSpeed USB, delivers up to ten tmes the data rate over USB2.0 and is parrcularly useful for high-speed data storage and imaging devices.

Flagship Series: LR-LINK PCIe2.0 x4 4P Type A 5Gb USB 3.0 Adapter LRSU9A11-4A(3U)

Features

• x4 PCI Express® Gen2 interface (2GB/s total bandwidth)

• 4-port by 4x NEC upd720202 host controller

• On-board 5V DC regulated power supply, no external power needed

• User-configurable 900mA and 1500mA current limit

• Software-programmable per-port power on/ off control

• Supports Windows XP/ 7/ 8 and Linux

• Compliant with

- Universal Serial Bus 3.0 specification Rev. 1.0

- Intel® xHCI specification Rev. 1.0

Specifications

HARDWARE
Model	LRSU9A72-2A	LRSU9A72-4A	LRSU9A72-8A		LRSU9A72-16A
Ports	2	4	8		16
Controller chip	upd720202
Card Type	Standard Profile (LP bracket incl.)
Bus Type	PCI Express
Interface	USB 3.1 Gen 2
Port Style	PCI / PCIe (5 / 3.3V)
PERFORMANCE
Type and Rate	5Gbps (PCIe Bus)
UASP Support	USB 3.0 - 5 Gbit/s
CONNECTOR(S)
Connector Type(s)	PCI Express x4 Male
External Ports	2 - USB Type-A (9 pin) USB 3.0 Female
Internal Ports	SATA Power (15 pin) Plug
SOFTWARE
OS Compatibility	Windows® 7, 8, 8.1, 10Windows Server® 2008 R2, 2012, 2016, Linux® 3.5 to 4.11.x LTS version only
SPECIAL NOTES / REQUIREMENTS
System and Cable Requirements	PCI Express enabled computer or server with anoptional SATA power connector
ENVIRONMENTAL
Humidity	15% ~ 90%
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Cable Support	Full height, half length
Product Height	55mm	55mm	159mm	210mm
Product Length	105mm	105mm	69mm	108mm
Product Weight	50g	50g	180g	260g
Shipping Weight	70g	70g	200g	290g
WARRANTY INFORMATION
Warranty	2 Years
WHAT'S IN THE BOX
Included in Package	1 - PCI Express USB Card
	1 - low-profile bracket
	1 – full height bracket(installed)

Driver

File name	For OS	Version	Upload time	Downlaod
RENESAS-USB3-Host-Driver-30230-setup	Windows	3.0.23.0	2024-08-14
