LRFNA922A

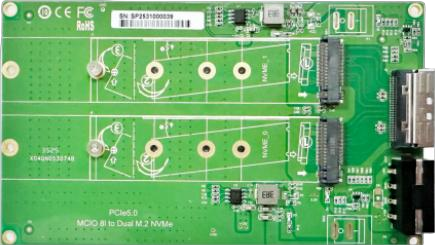

MCIO x8 to 2 M.2 Gen5 NVMe SSD Adapter

Supports 2 PCIe 5.0 M.2 NVMe SSDs.

Supports SSDs of various specifications such as 2260,2280,22110.

Equipped with a 4-pin power socket, requiring input of either 12V or 5V.

Computer or add in Card with MCIO (x8) Connector support PCIe Bifurcation mode.

LRFNA922A

PDF 522.33KB

Download

More Support

LRFNA922A is a solution designed to effectively support PCIe Gen5 SSDs by converting MCIO interfaces into M.2 connectors. It can expand the MCIO interface of the motherboard into an M.2 connector for installing M.2 SSDs. It uses Gen5 compliant connectors and Very Low Loss PCBs. Usually suitable for SSD expansion or for SSD testing scenarios.

Bus Type	MCIO(PCIe Gen5)
Compatible Device Types	M.2 PCIe5.0 NVMe SSD
Device Connector	2*M.2( 75 Pin,x4 PCIe )
Host Connector	MCIO 74pin
Humidity	15% ~ 90%
Operating Temperature	5°C to 50°C (41° F to 122° F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Product Dimension	145mm x 85mm
Product Weight	56g
