LRFN9A22

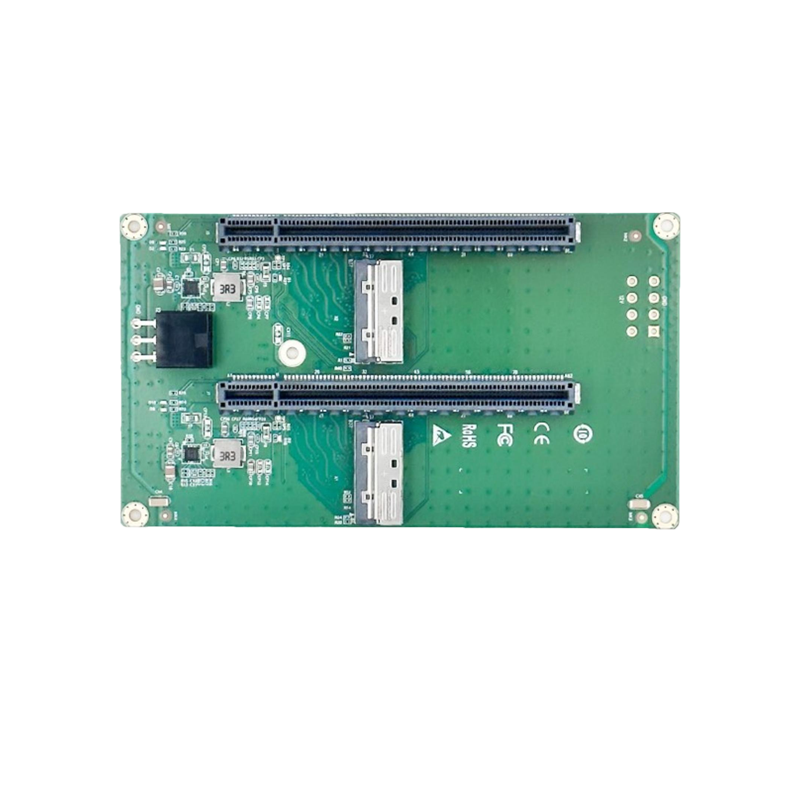

MCIO PCIe gen5 Device Adapter 28i to 2x16

two 56G PCIe5.0 MCIO 8i input

one PCIe x8 electrical, PCIe x16 mechanical output

PCIe gen5 - high quality Amphenol SMT slot,

85Ohm Ultra Low Loss PCB

can work in x8 mode with per cable

GPU Power connector to supply 12V.

6A 12V->3.3V buck voltage regulator

LRFN9A22

PDF 357.06KB

Download

More Support

LRFN9A22 is two Mini Cooledge IO (MCIO 8I) to two PCIex16 slot riser card, It can be extended to two PCIe x16 slot by plugging into a PCIe AIC card (e.g., Switch, Retimer, etc.) with 2 MCIO connectors, enabling the use of PCIe x8 devices to connect more PCIe devices.

Power Connector	ATX 2*3 GPU Mini fit 5569
Device Count	2 PCIe AIC
Host Connectors	2 MCIO 74Pin
Physical Dimensions	142mm*80mm
weight	250g
Operating Voltage	+12V +/-8%;
Environmental	Operating: 0°C to 70°C Storage: -40°C to 70°C 5 to 90% non-condensing
Option	MCIO 8i to MCIO 8i Cable L=800mm
Option	MCIO 8i to SFF-8654 8i Cable L= 1000mm
