SP226D

HUAWEI Dual-Port PCIe5.0x16 200G Ethernet Network Adapter

SP226D

HUAWEI Dual-Port PCIe5.0x16 200G Dual-Port QSFP56 Ethernet Network Adapter

PCI Express 5.0 x16
2 * QSFP56
200Gbps/100Gbps/40Gbps
Support MCTP
Support RDMA
Support GPU Direct

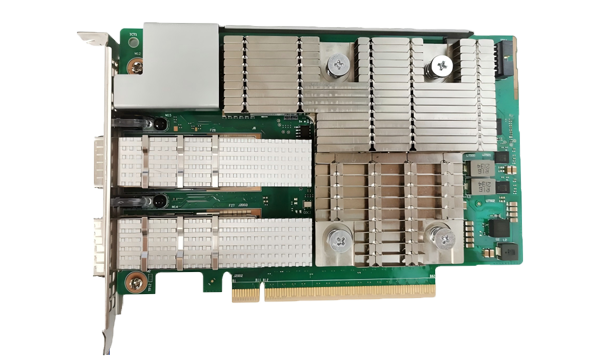

The SP226D is a PCIe 5.0 x16 Ethernet network adapter based on the Huawei HiSilicon Hi1822 chip. It features dual 200G QSFP56 ports, providing strong support for server network expansion. Its high bandwidth performance allows it to efficiently handle massive data transmission.

The SP226D supports MCTP out-of-band management, enabling more efficient remote management and control of servers. It also supports RDMA (RoCEv2), eliminating the need for kernel intervention in the operating system, reducing data copying and CPU load. It also supports DPDK, significantly improving data processing performance and throughput, and enhancing the efficiency of data plane applications.


SP226D is suitable for scenarios such as large-scale data exchange in data centers, data interaction in high-performance computing clusters, and resource scheduling on cloud computing platforms, helping to improve the overall network efficiency of the system.

Model

SP226D

Controller

Huawei HiSilicon Hi1822 Processor

PCIe Interface

PCIe Gen 5.0 ×16

Ports

Dual

Connector

QSFP56

Data Rate

200Gbps/100Gbps/40Gbps

Form Factor

Full-height, Half-length

Supported Protocols

IEEE 802.3ap based auto-negotiation and KR startup


IEEE 802.3ad (LACP)


IEEE 802.1Q/802.1P


IEEE 802.1Qaz (ETS)


IEEE 802.1Qbb (PFC)


IEEE 802.1Qbg


IEEE 802.1BR

Supported Functions

-

DPDK Support

Yes

Legacy UEFI Support

Yes

SR-IOV Support

Yes

RoCEv2 Support

Yes

DCQCN Support

Yes

GPU Direct Support

Yes

MCTP Support

Yes

NCSI Support

Yes

Jumbo Frame Support

Yes



Type

Value

Typical Power Consumption

31W

Maximum Power Consumption

37.5W





LED Type

Color/Status

Description

Active/Link

Off

No link established

Steady Green

Link established, no data transmission

Blinking Green

Link established, data transmission in progress

Speed

Off

No link established

Steady Yellow

Link established, data rate below 200Gbps

Steady Green

Link established, data rate at 200Gbps

Type

200Gbps

100Gbps

40Gbps

DACs

200GBASE-CR

100GBASE-CR

40GBASE-CR

Optics and AOCs

200GBASE-SR/LR

100GBASE-SR/LR

40GBASE-SR/LR



Operating Temperature

5~45 (41~113)

Storage Temperature

-40~+65 (-40~+149)

Storage Humidity

5% RH~95% RH (non-condensing)

Certifications

FCC, CE, RoHS

PCB Size

18.71mm × 111.15mm × 167.65mm

Weight

0.5kg (including packaging)
