PCIe 3.0 x4 | AQC111C | 5Gbps | RJ45 | Quad-port | Jumbo Frame

LRES1052PT

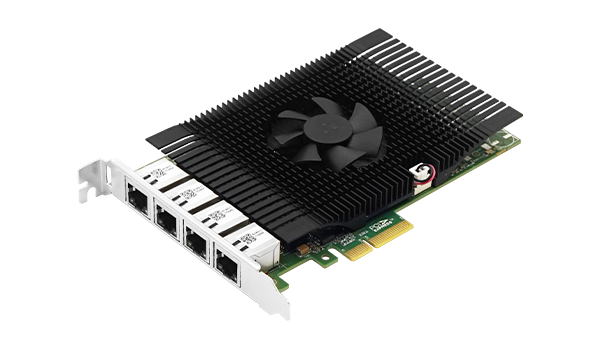

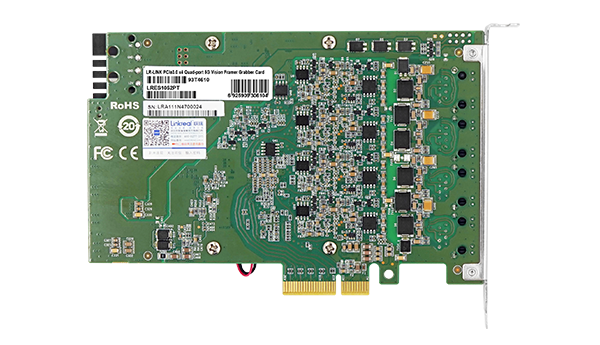

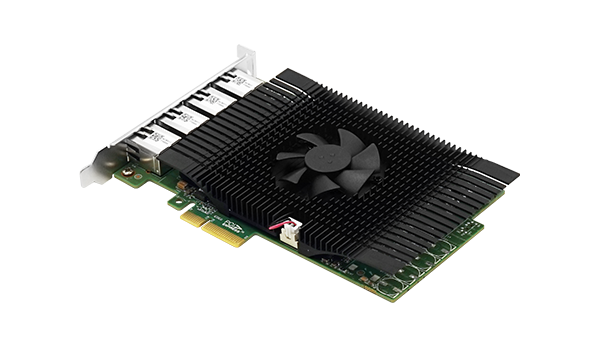

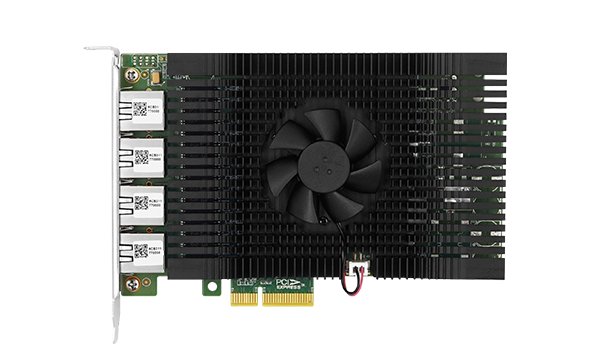

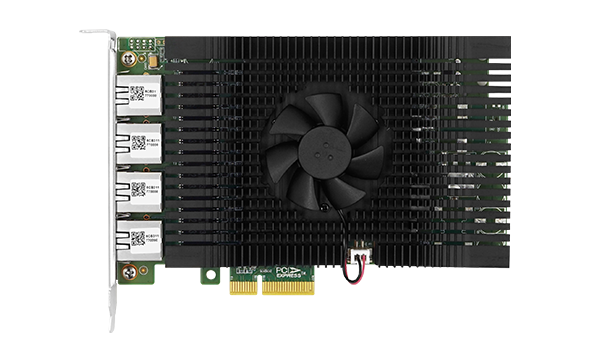

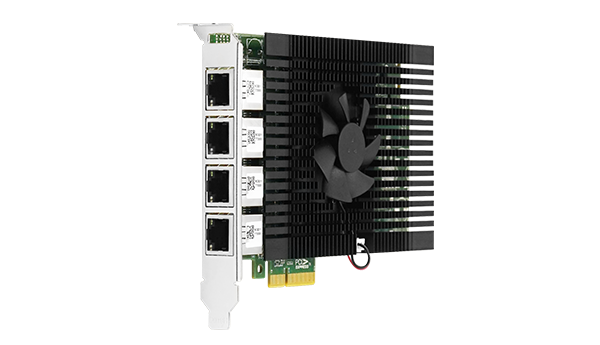

PCIe3.0 x4 Quad-port 5G Vision Framer Grabber Card (Aquantia AQtion AQC111C Based)

Supports network rate adaptation of 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps;

Support PCIe 3.0 (8GT/s);

Integrate PCIe, MAC and PHY to minimize power consumption;

Supports packets up to 16KB (jumbo frames);

Supports IPv4/v6, IPv6/TCP, IPv6/UDP checksum offloading

LRES1052PT

PDF 1.07MB

Download

More Support

Overview Specifications Driver

Overview

LRES1052PT is a PCIe3.0 x4 Quad-port 5G Vision Framer Grabber Card independently developed by Linkreal Co., Ltd. based on the Aquantia AQtion AQC111C main controller solution. It is also compatible with PCIe x8 and x16 slots. It is a high-performance 4 electrical port adapter. Mainly used in industrial field visual inspection equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc. This image capture card performs outstandingly in data transmission, network bandwidth, average transmission delay, actual small packet transmission rate and other indicators. It can be connected to four 5GigE industrial cameras at the same time to work stably and meet the installation and use of conventional industrial computers.

Specifications

Model	LRES1052PT
Controller	Aquantia AQtion AQC111C
Cable medium	Copper
Fiber Type	CAT-5		50M（5Gbps）；100M（5Gbps）
	CAT-6		50M（5Gbps）；100M（5Gbps）
	CAT-6e		50M（5Gbps）；100M（5Gbps）
	CAT-7		100M（5Gbps）
Bracket Height	Full Height
Power (min)	4.44W
Power (max)	20.76W
Bus Interface	PCIe v3.0 (8.0GT/s) x4; compatible x8 x16
Data rate per port	100Mbps;1Gbps;2.5Gbps;5Gbps
Connector	4* RJ45
ESD	Contact discharge	±6KV
	Air discharge	±8KV
Lightning surge test	±4kV common mode
Power Supply	PCIe
Operating System Support	* Windows 10 /11 * Windows Server 2016 /2022 * Deepin 15.11 /20 /20.6 /20.9 * VMware ESXi 6.7 /7.0 * Galaxy Unicorn V10 SP1 /V10 * NeoKylin 7.6 * RHEL/CentOS 7.6 /7.9 /8.3 * Ubuntu 16.04.3 /18.04.5 * Ubuntu 20.04.1 /22.04.2		* ZTE New Fulcrum 5.0.5 /3.2.2 * Tongxin UOS 20 * Asianux Server V7.0 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * iKuai router
PXE	Yes
MDI/MDI-X	Yes
WoL	No
Jumbo Frames	Yes
IEEE 1588	No
SR-IOV	No
Jumbo Frame(max)	16KB
Protocol Support	IEEE 802.3bz 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/ 100BASE-T/ 10BaseT Gigabit Ethernet

100Mbps/1Gbps/2.5Gbps	LINK	Red Link + Green Link
100Mbps/1Gbps/2.5Gbps	ACT	Red Link+ Green Blink
5Gbps	LINK	Green Link + Green Link
5Gbps	ACT	Green Link + Green Blink

Operating Temperature	0℃ to 70℃ (32 ℉ to 158 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS

PCB size(unit:mm)	156.7 x 104.37 x 1.6
Package size (unit: mm)	250 x 170 x 32

Baffle specifications	Full bracket(installed)
Network card	*1
Product warranty card	*1
Packing	Carton and Blister box

Driver

File name	For OS	Version	Upload time	Downlaod
(x64_21H2_22H2_or_newer) Marvell AQtion_Win10-11_3.1.8	Windows	3.1.8	2024-08-13
marvell_linux_2.5.6	Linux	2.5.6	2024-08-13
