PCIe 2.0 x4 | Intel I226 | 2.5G | Quad-port

LRES1056PT

PCIe x4 Quad-port 2.5G Vision Frame Grabber Card(Intel I226 Based)

Supports rate adaptation of 2.5Gbps, 1Gbps, 100Mbps and 10Mbps;

Supports PCIe 2.0 (5GT/s);

Transmission distance up to 100 meters;

Supports packets up to 9.2KB (jumbo frames)

LRES1056PT

PDF 295.55KB

Download

More Support

Overview Specifications Related products

Overview

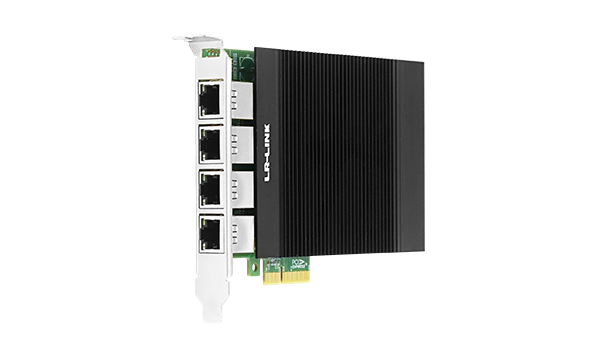

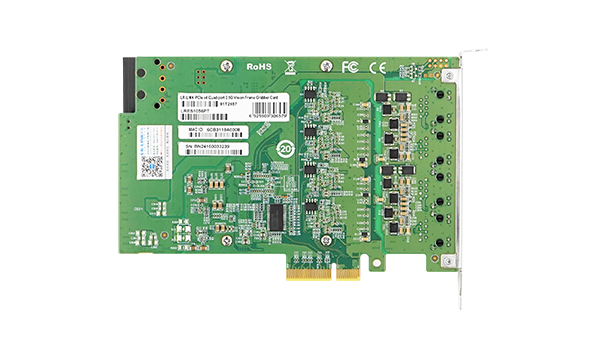

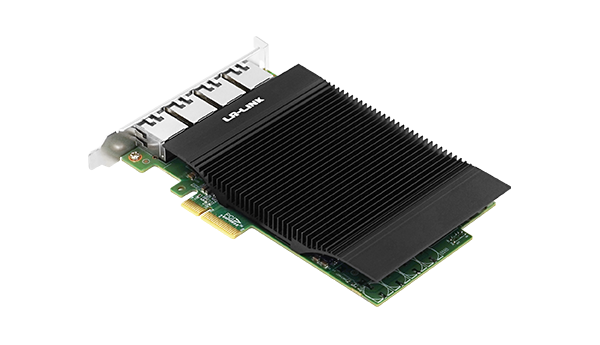

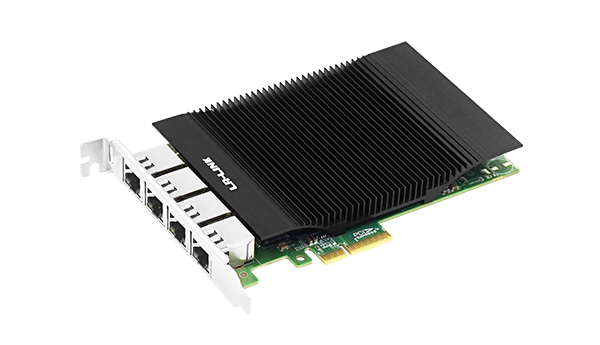

LRES1056PT is a PCIe x4 quad-port 2.5G vision frame grabber card independently developed by Linkreal Co., Ltd. based on the Intel I226 main controller solution. It is also compatible with PCIe x8 and x16 slots. It supports data transmission speeds up to 2.5Gbps and is equipped with four electrical ports, which can connect multiple devices at the same time to improve the efficiency of data collection.. In addition, LRES1056PT has outstanding performance in data transmission, network bandwidth, average transmission delay, actual small packet transmission rate and other indicators. It can be widely used in industrial visual inspection, intelligent monitoring systems, medical imaging diagnosis and other fields. Provide users with high-quality image data collection solutions.

Specifications

Model	LRES1056PT
Controller	Intel I226
Cable medium	Copper
Fiber Type	CAT-5	50M（100Mbps）；100M（100Mbps）；150M（100Mbps）
	CAT-6	50M（100Mbps）；100M（100Mbps）；150M（100Mbps）
	CAT-6e	50M（2.5Gbps）；100M（2.5Gbps）
	CAT-7	50M（2.5Gbps）；100M（2.5Gbps）
Bracket Height	Full Height
Power (min)	5.88W
Power (max)	9.36 W
Bus Interface	PCIe 2.0 (5.0GT/s) x1; structure x4, compatible with x8 x16
Data rate per port	10Mbps;100Mbps;1Gbps;2.5Gbps
Connector	4*2.5G RJ45
Power Supply	PCIe
ESD	Contact discharge			±8kV
Lightning surge test	±2kV common mode
Operating System Support	* Windows 11 * Deepin 20/20.6/20.9 * RHEL/CentOS 8.2 * Ubuntu 20.04.1/22.04.2		* SUSE 12.5/15.4 * FreeBSD 13.2 * Mikrotik * iKuai router
PXE	No
UEFI	Yes
MDI/MDI-X	Yes
WoL	Yes
Jumbo Frames	Yes
SR-IOV	No
1588 PTP	Yes
Jumbo Frame(max)	9.2KB
RSS	4
Protocol Support	IEEE 802.3x ; IEEE 802.3x

2.5Gbps	Connection Status	Green Link + Green Link
2.5Gbps	Transfer status	Green Blink + Green Link
1Gbps	Connection Status	Green Link + Orange Link
1Gbps	Transfer status	Green Blink + Orange Link
100Mbps/10Mbps	Connection Status	Green Link
100Mbps/10Mbps	Transfer status	Green Blink

Operating Temperature	0℃ to 55℃ (32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS

PCB size(unit:mm)	156.7104.371.6
Package size (unit: mm)	22214728
