LREC7020PF

PCI 2.2 | VT6105MT | Single Port | 100Mbps | SC Connector

LREC7020PF

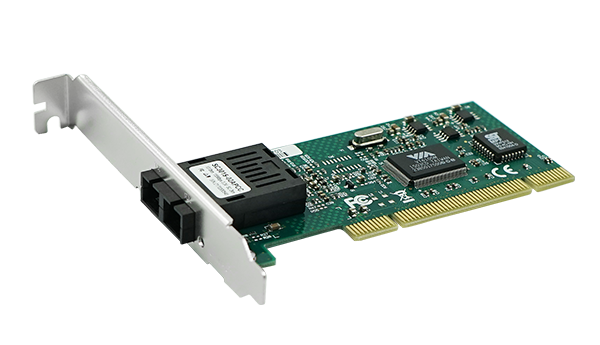

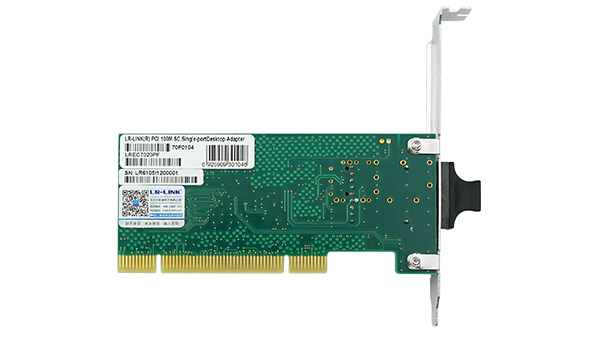

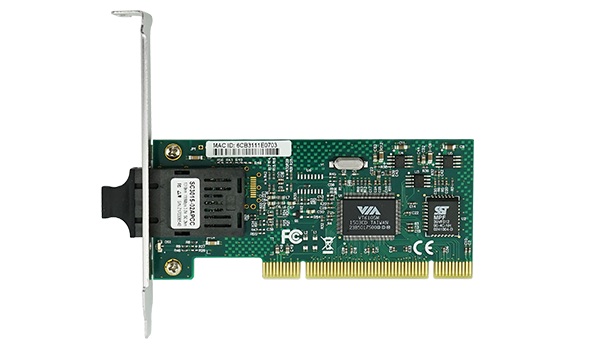

PCI 100Base-SX MM Fiber Optic NIC Card with SC Connector PXE (VT6105MT Based)

Single Port 100Mbps Adapters
PCI v2.2 32bit,33/66MHZ
Support PXE 2.1 Boot Rom
Single-port PCI-Express 100BASE-FX Ethernet adapter
Wake-on-LAN (WoL) supported
Full duplex or half-duplex, reach 200Mbps in full duplex
Support IEEE 802.1Q VLAN tagging
Low profile and full height bracket
Overview

LREC7020PF are a PCI 2.2 100Mbps Single Port Ethernet Fiber Desktop Adapter based on VT6105 Chipset. This optical fiber Ethernet adapter is widely applied on various occasions of Fiber To The Desktop(FTTP).n




The Adapter with high data security, high reliability, stability and compatibility, has been widely used in the secret industries, such as prosecution, courts, police and military industrial enterprises etc. It can completely replace the Ethernet card external photoelectric conversion of the network structure of the commonly used RJ-45, to provide users with reliable fiber-to-the-home and fiber-to-the-desktop solutions. Users can select the optical interface parameters (including connectors, single / multi-mode fiber, working distance) according to the distance.


Specifications
