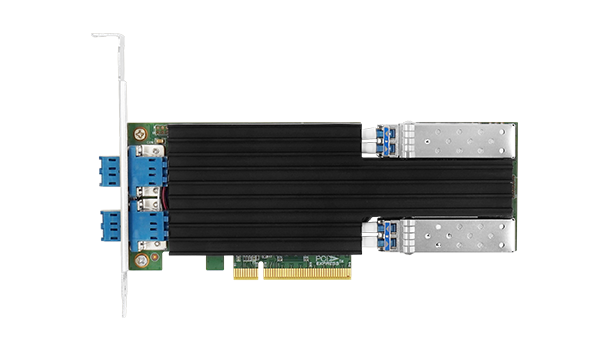

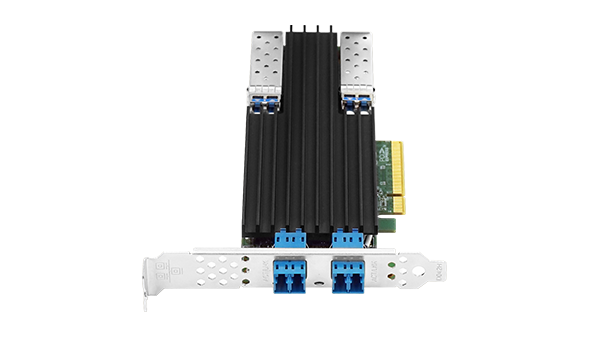

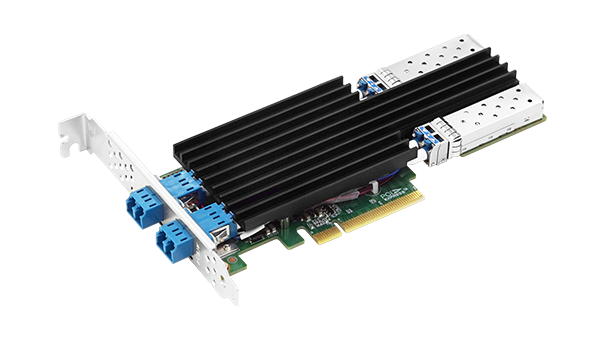

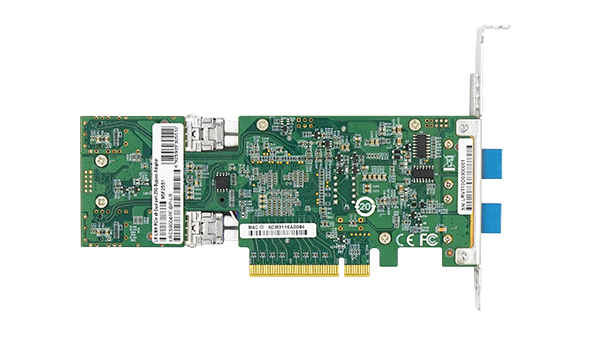

PCIe x8 25G Multimode Dual-port Bypass Adapter (Intel XXV710 Based)

LRES8004PF-BP-SR is a PCIe3.0 x8 25G Dual-port Bypass Adapter developed by Linkreal Co., Ltd. based on the Intel xxv710 main control solution. This network adapter has two Ethernet ports, each supporting data transfer rates up to 25Gbps, providing a fast and reliable network connection.

LRES8004PF-BP-SR supports single-channel Bypass function and has three working modes, namely normal mode, Bypass mode and watchdog mode. In normal mode, the network card works normally to ensure smooth network; when the device is powered off or is threatened by network security, the Bypass mode is triggered to ensure network connectivity of the back-end device. The watchdog mode can monitor the device status in real time. Once an abnormality is detected, such as system crash, program exception, etc., the Bypass function will be triggered within the set time to ensure the stability and availability of the network. The combination of these three modes provides users with powerful network fault response capabilities and ensures the continuous and stable operation of the network. In addition, it also supports network virtualization offloading, including Geneve, VXLAN and NVGRE, etc. LRES8004PF-BP-SR can be widely used in various scenarios such as firewalls, intrusion detection and prevention systems, etc., and can provide users with excellent network performance guarantee and reliable secure connections.
