Mini PCIe | Intel I350 | 1G | RJ45 | Dual-port

LRES2202PT

Mini PCIe Full Size Dual-port Copper Ethernet Lan Card (Intel I350)

The adapter card adopts a wider RJ45 pitch design;

The interface specially designed for industrial cable access, with LR-LINK customized industrial network cable, can lock the cable and network port more firmly, solve the problem of unstable connection between network port and cable in industrial places effectively. It is also compatible with common cable access.

The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and ensure the stable operation of the adapter card for long time effectively.

Carefully selected thickened gold RJ45 connector to ensure a more secure and reliable connectivity;

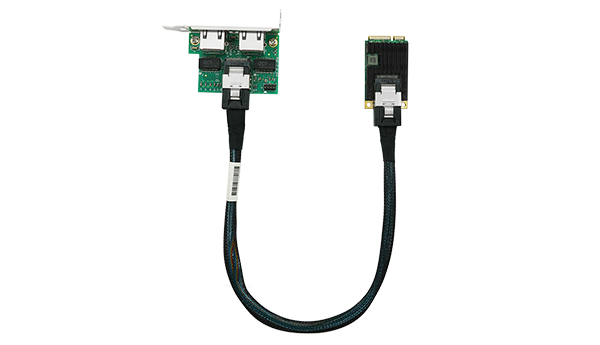

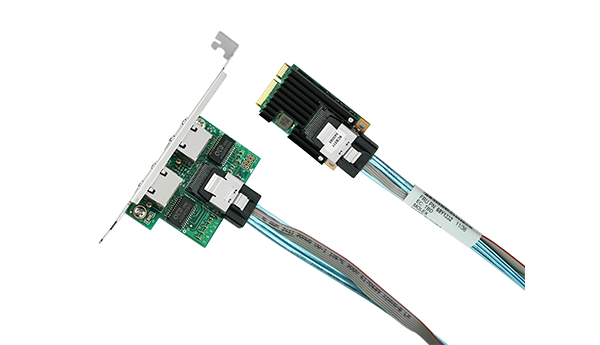

2*8-Pin RJ45 connectors are designed to better save the motherboard's valuable PCIe slot resources.

LRES2202PT

PDF 600.4KB

Download

More Support

Overview Specifications Driver Related products

Overview

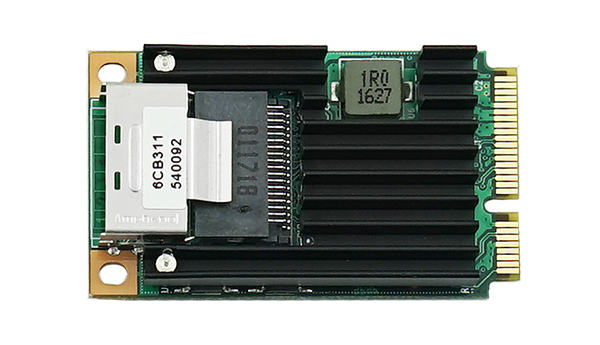

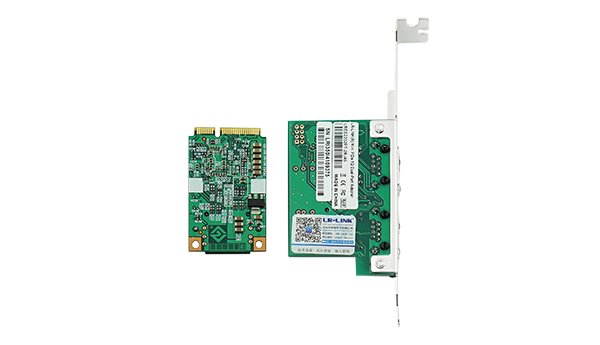

LRES2202PT is a Mini PCIe dual-port Gigabit Ethernet network adapter developed on the Intel I350 control.

This adapter card is designed with Mini PCI-e slot for use on industrial equipment including Mini PCIe interface slots such as industrial PCs and single board machines. It can solve the problem of compact space of equipment. The adapter supports 10/100/1000 Mbps link rate that automatically adapts to existing Ethernet networks.

This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can realize system support such as Windows and Linux.

LR-LINK Mini PCIe Dual-port SFP Gigabit Ethernet Network Adapter (Intel I350): LRES2203PF-2SFP

Specifications

Features
Controller	Intel(R) I350
Cable	Copper
Cable Type	Cat 5E/6 or higher: 1000Base-T up to 100m
	Cat5/5E/6 or higher: 100Base-Tx up to100m
	Category 3/4/5/5E/6 or higher: 10Base-T up to 100m

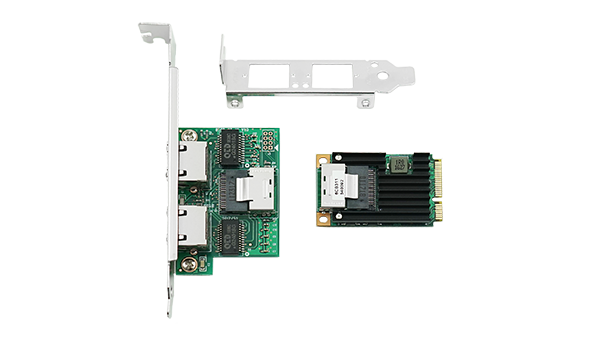

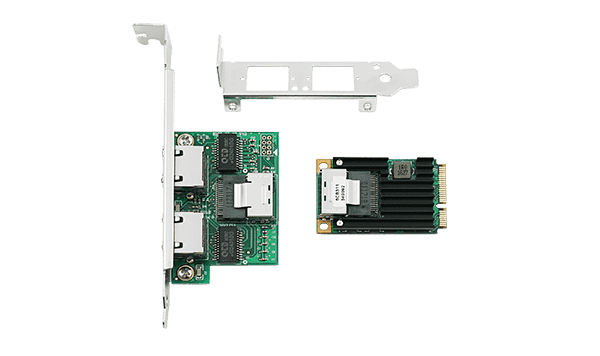

Bracket	Low Profile and Full-height Bracket
Power(max)	3W
Operating System Support	Windows XP
	Windows 7
	Windows Vista
	Windows 8/8.1
	Windows 10
	Windows Server 2003
	Windows Server 2008
	Windows Server 2008 R2
	Windows Server 2012
	Windows Server 2012 R2
	Windows Server 2016
	Windows Server 2016 R2 Core
	Linux Stable kernel version 2.4.x/2.6.x/3.x/4.x or later
	RHEL/CentOS 5.x/6.x/7.x or later
	Linux SLES 11 SP3 / SLES 12 or later
	FreeBSD 9 / 10 / 11 or later
	VMware ESX/ESXi 4.x/5.x/6.x or later
Connector	2*8-Pin RJ45
PCIe Bus	Mini PCI Express
Transmission Rate	10/100/1000Mbps
Technical Parameters
IEEE Standard	IEEE 802.3 IEEE802.3ad IEEE 802.1p IEEE 802.1Q VLANs IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100Base-TX Fast Ethernet
PXE	Yes
DPDK	Yes
Jumbo Frame	Yes
iSCSI	No
FCoE	No
WOL	No
Environment Features
Operating Temperature	0 ℃ to 55 ℃(32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity	90% non condensing under 35℃
Certification	FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
LED
LED	1000Mbps:Green + Green Blink
LED	10/100Mbps: Green Blink
Physical Features
PCB size(mm)	6341.51.6mm (M1) + 51301.0 mm (M)
Weight(g)	38

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
