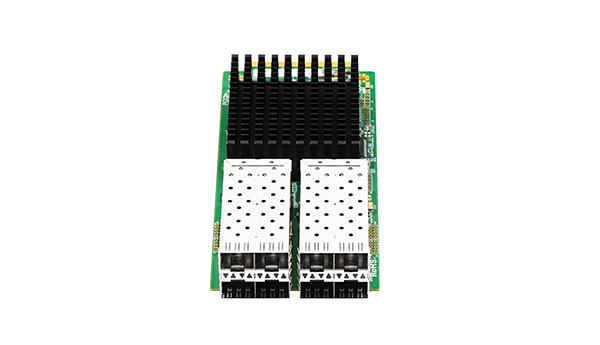

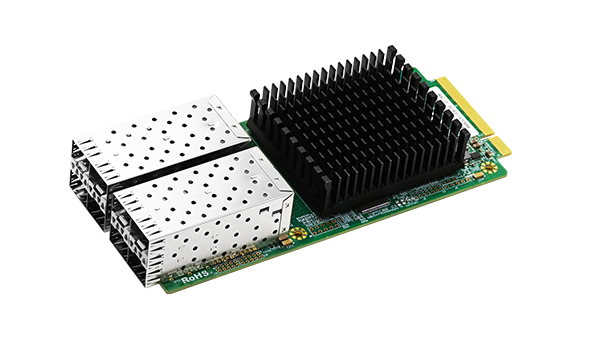

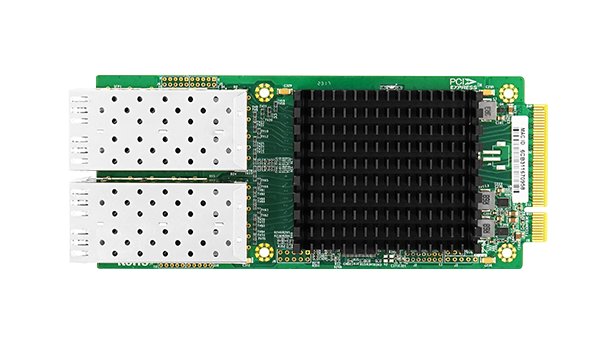

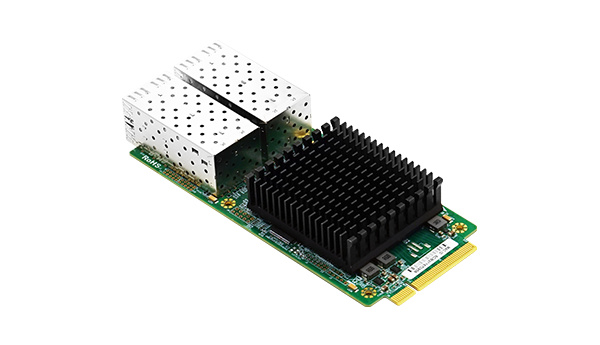

LREM1001PF-8SFP is a PCI Express x8 eight-port horizontal plug-in gigabit SFP ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of MUCSE RNP N10L-X8 master control solution. The adapter can be used in data transmission application scenarios such as firewalls, gatekeepers, and data monitoring, and is suitable for 24H non-stop oper ation.
LREM1001PF-8SFP supports 1Gbps speed transmission at the application site. In the gigabit ethernet connection, eight gigabit ethernet ports can be allowed to work in full-duplex mode at the same time, and multiple network ports can be aggregated to increase network traffic bandwidth or any network port can be aggregated. PCI Express channel resources can be saved in the space of the chassis.
The main controller used by LREM1001PF-8SFP has independent intellectual property rights and independent controllability, which is of great significance for breaking foreign monopoly and ensuring national information security. At the same time, the controller has made major innovations in the hierarchical DMA queue architecture, virtual machine hot migration network seamless switching and cross-slicing, and the overall technology has reached the international advanced level. Including the average transmission delay, the actual small packet transmission rate and other indicators have reached the highest level disclosed in the industry. It has passed authoritative tests and applications on X86, Shenwei, Phytium and other platforms, showing excellent performance overall.
Controller | Mucse RNP N10L-X8 |
Cable medium | Optical Fiber |
Fiber Type | 1000Base-SX、1000Base-LX、AOC |
Power(min) | 3.696W |
Power(max) | 7.848W |
System Support | Deepin 20 /20.6 /20.9 |
Galaxy Unicorn v10 SP1 | |
Galaxy Unicorn v10 | |
NeoKylin 7.6 | |
RHEL/CentOS 7.3 /7.6 /7.9 | |
RHEL/CentOS 8.2 /8.3 | |
Ubuntu 16.04.3 /18.04.5 /20.04.1 | |
ZTE New Fulcrum 5.0.5 /3.2.2 | |
Tongxin UOS 20 | |
Asianux Server v7.0 | |
Zhongke Fangde desktop operating system 4.0 | |
Zhongke Fangde server operating system | |
Emind OS | |
Bus Type | PCIe v3.0 (8.0GT/s) x8 |
Data rate per port | 1Gbps |
Connector | 8*1G SFP |
Power Supply | PCIe |
Protocol Support | IEEE 802.3z 1000BASE-X Gbit/s Ethernet IEEE 802.1Q VLANs IEEE 802.3x IEEE 802.3az - Energy Efficient Ethernet (EEE) |
PXE | No |
DPDK | Yes |
WoL | No |
iSCSI | No |
Jumbo Frames | Yes |
UEFI | No |
SCAN CHAIN | No |
SR-IOV | No |
1588 PTP | No |
Jumbo DataFrame Max | 9.5KB |
Operating Temperature | 0℃ to 70℃ (32℉ to 158℉) |
Storage Temperature | -40℃ to 85℃ (-40℉ to 185℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC, CE, RoHS |
File name | For OS | Version | Upload time | Downlaod |
---|---|---|---|---|
rnpm-0.3.1.tar.gz.zip | Linux | 0.3.1 | 2024-08-14 |
