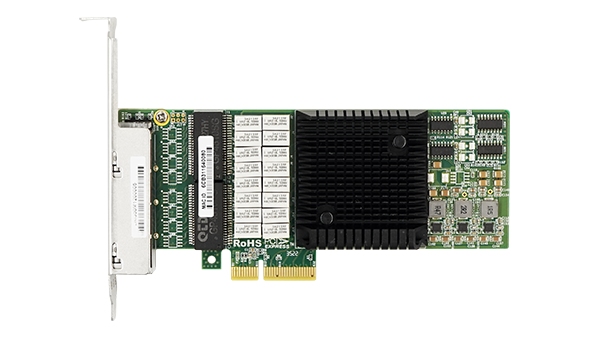

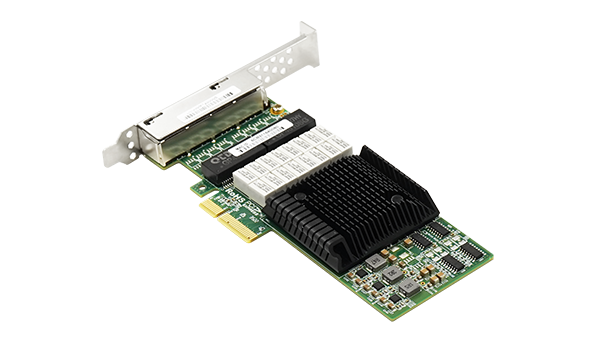

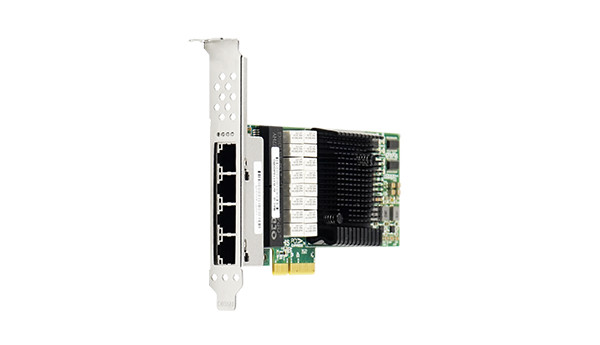

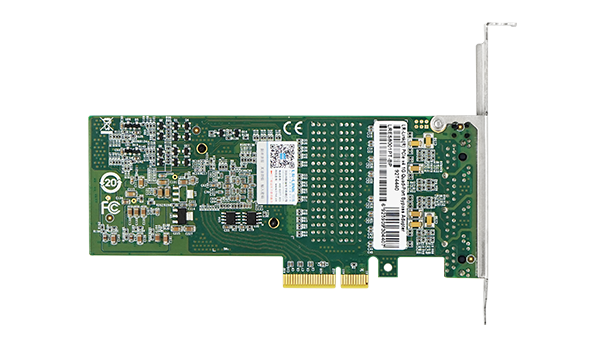

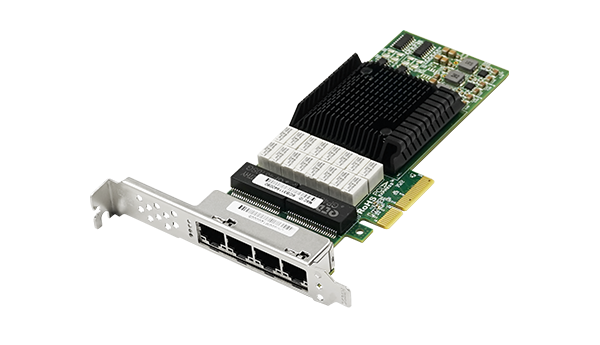

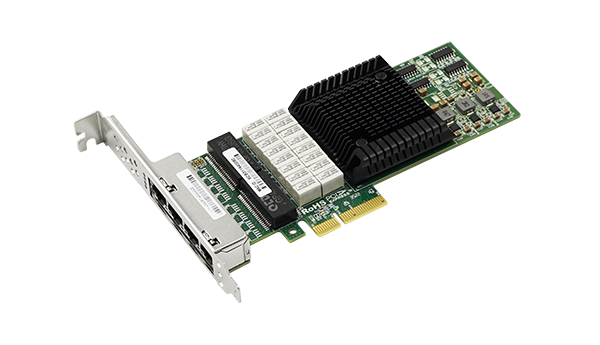

LRES8001PT-BP is a quad-port dual-way Bypass Gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. Based on the Intel I350 chip solution,The adapter has four fully integrated Gigabit Ethernet Media access controller (MAC) and PHY port, based on a single chip instead of adding a bridge controller.
LRES8001PT-BP supports three working modes: normal, disconnected and Bypass. In normal mode, each port is an independent Ethernet interface,which can exchange data with other devices such as switches.In Bypass mode, all received packets are transmitted from one port to the adjacent port for transmission. In disconnected mode, it appears as the switch is off or the line is not connected.
The adapter also supports the timing dog feeding function. Once the server is down or other conditions fail to send the dog feeding command, it will trigger the Bypass mode, so that other access devices will not be affected.
Controller | Intel I350 |
Cable medium | copper cable |
Fiber Type | Cat 5E and Cat6:1000Base-T up to 100 |
Cat 5E and Cat6:100Base-T up to 100 | |
Bracket Height | Low Bracket & full Bracket |
Power Consumption | 5.5W |
System Support | Windows 7, 8, 8.1, 10, 11 |
Windows Server 2008/R2, 2012/R2, 2016/R2, 2019/R2, 2022/R2 | |
Linux Stable Kernel version 2.6.x / 3.x / 4.x or later | |
CentOS/RHEL 6.x/7.x or newer | |
Ubuntu 14.x/16.x or newer | |
FreeBSD 9/10/11 or newer | |
Vmware ESX/ESXi 5.x / 6.x or later | |
Bus Type | PCI Express v2.1 (5.0GT/s) x4,x8,x16 |
Data rate per port | 10/100/1000Mbps |
Connector | 4*8-Pin RJ45 |
Protocol Support | IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet(EEE) |
PXE | No |
DPDK | Yes |
WoL | No |
iSCSI | No |
Jumbo Frames | Yes |
FCoE | No |
Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to131 ℉) |
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC, CE, RoHS |
