PCIe 2.1 x4 | Intel I350 | 1G | SFP | Quad-port

LREC9714HF-4SFP

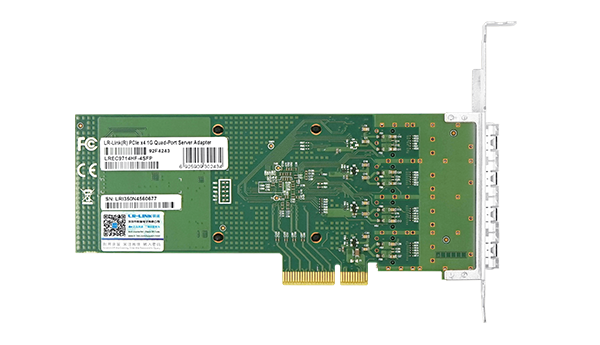

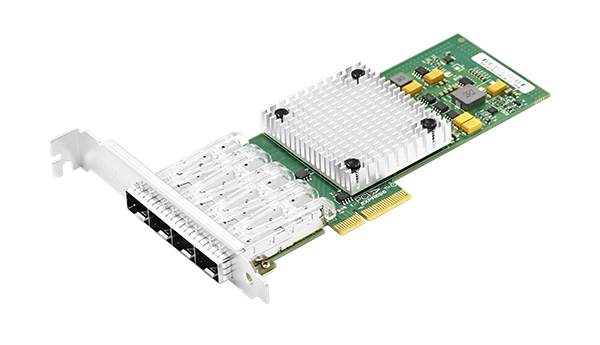

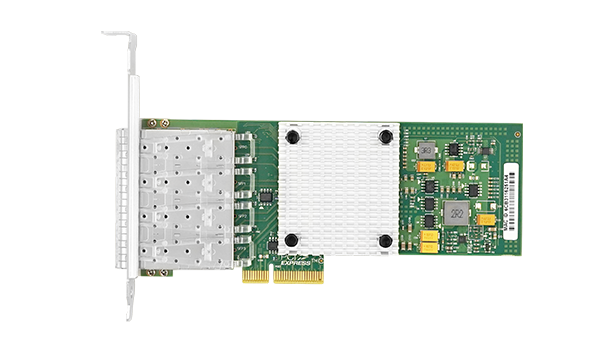

PCIe x4 Quad-port Gigabit SFP Ethernet Network Adapter(Intel I350)

Based on Intel I350 main control development

Equipped with four SFP optical ports, supporting 1G data transmission rate

PCIe2.1 (2.5GT/s) x4; x8, x16 compatible

IEEE1588 PTP support

Jumbo Frames support

LREC9714HF-4SFP

PDF 717.47KB

Download

More Support

Overview Specifications Driver Related products

Overview

LREC9714HF-4SFP is a PCIe2.1 x4 quad-optical port Gigabit SFP Ethernet network adapter developed by Linkreal CO.,LTD. on the basis of Intel I350 main control program. The adapter is compatible with both PCIe x8 and x16 slots. The adapter is designed for servers and high-end devices, and is optimized for performance so that system I/O is no longer a bottleneck in high-end network applications.The LREC9714HF-4SFP is capable of achieving fault tolerance by bundling and aggregating into a group, and automatically detecting and routing traffic from failed ports to the other members of the same group for uninterrupted communication.The LREC9714HF-4SFP has an integrated hardware accelerator. The 4SFP features integrated hardware acceleration to perform TCP/UDP/IP checksum offloading and TCP segmentation tasks. Host processing technology offloads the gas pedal, freeing up CPU resource utilization to free up more CPU resources for other applications.

LREC9714HF-4SFP is an ideal solution for deploying multiple networks and for deploying critical network applications and environments on high-performance servers.

Specifications

Controller	Intel I350
Cable medium	Fiber Optics
Fiber Type	1000Base-SX、1000Base-LX、AOC
Bracket Height	Low Profile & Full Height
Min Power(w)	2.928W
Max Power(w)	5.148W
Connector	4 * 1G SFP
Bus Type	PCIe2.1 (2.5GT/s) x4; compatible with x8, x16
Data rate per port	1 G
Power Supply	PCIe
Protocol Support	IEEE 802.3z 1000BASE-X Gbit/s Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.3ad Link aggregation for parallel links IEEE 802.1Q VLAN IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
PXE	No
UEFI	Yes
DPDK	Yes
WoL	No
iSCSI	No
Jumbo Frames	Yes
SCAN CHAIN	No
SR-IOV	Yes
1588 PTP	Yes
System Support	* Windows 7 /8 /8.1 /10 /11 * Windows Server 2008 /2012 /2016 /2019 /2022 * Deepin 15.11 /20 /20.6 /20.9 * VMware ESXi 6.5 /6.7 /7.0 * Galaxy Unicorn v10 * NeoKylin 7.6 * OpenKylin 0.7.5 * RHEL/CentOS 7.6 /7.9 /8.2 /8.3 * Ubuntu 16.04.3 /18.04.5 /20.04.3 /22.04.2 * SUSE 12.5 /15.4 * FreeBSD 12.2 /13.2 * ZTE New Fulcrum 3.2.2 /5.0.5 * Tongxin UOS 20 * Asianux Server v7.0 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * iKuai router
LED Indicators	1G	LINK	Orange Link + Orange Link
		ACT	Orange Link + Orange Blink

Operating Temperature	0℃ to 55℃ (32℉ to 131℉)
Storage Temperature	-40℃ to 70℃ (-40℉ to 158℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC，CE，RoHS

Bracket	Fitted with full height, equipped with low profile
Internet Network Adapter	*1
Product Warranty Card	*1
Packaging	Carton + Blister Pack

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
