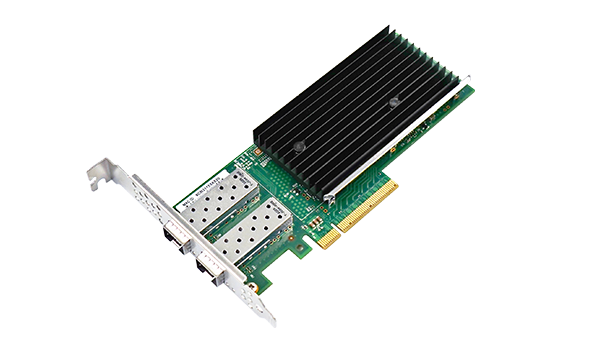

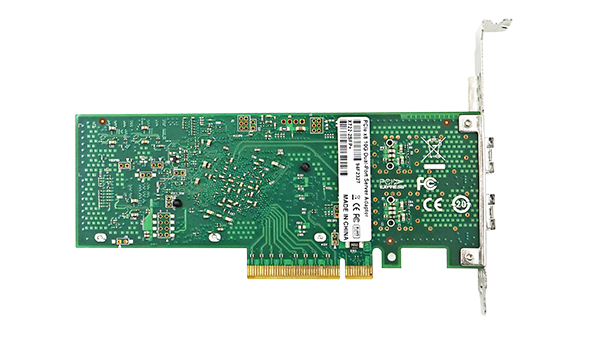

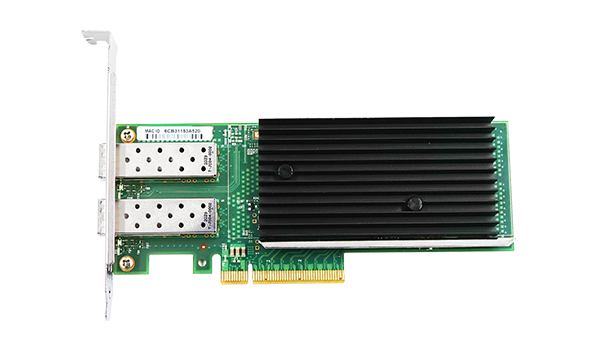

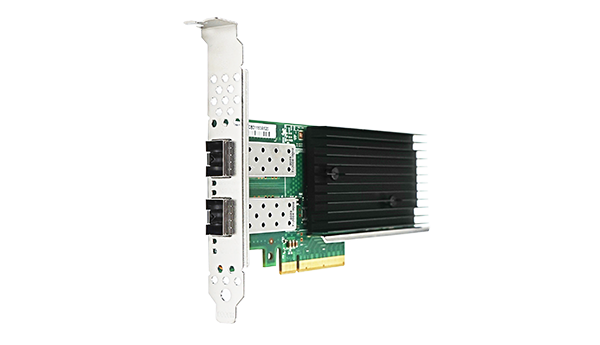

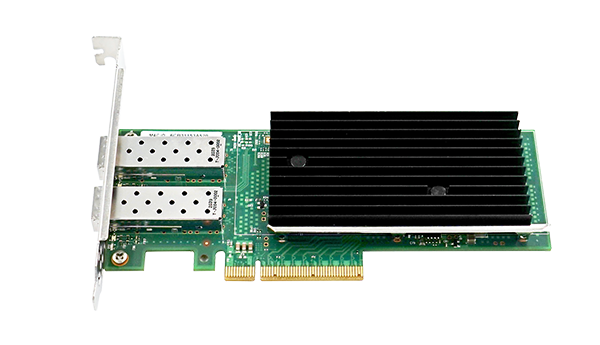

PCIe x8 Dual Port 10G SFP+ Ethernet Network Adapter (Intel Chip Based)

LRES1010PF-2SFP+ is PCI Express v3.0 x8 dual port 10G SFP+ Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of Intel master control scheme. The adapter can realize high throughput, low latency working network and low CPU utilization, which is suitable for big data transmission applications with large capacity fusion network. The adapter is compatible with PCIe v2.1/v2.0/v1.1 on a PCI Express v3.0 x8 slot, and can achieve the transmission rate of dual-port full-duplex throughput with efficient RDMA capabilities.

The Ethernet fiber-optic Network Card has iWARP's RDMA technology, host unloading, host bypass, and other technologies to support low-latency, high-throughput, direct-memory-tomemory data transfer communications between applications on the network.

This adapter can support different ports using different network protocols, such as iWARP or Ethernet, and can support high-quality data transmission at the same time, which has more resource saving advantages on big data traffic systems.

LRES1010PF-2SFP+ supports iWARP because iWARP is based on the TCP/IP protocol and is highly scalable, providing a wide range of interoperability, critical performance optimization, and flexibility for telecommunications, cloud, and enterprise IT. Therefore, it becomes the project proposal of the super fusion storage solution in data transmission. In the use of RDMA functions to speed up real-time migration performance and other applications, it can greatly reduce the time, CPU utilization and other adaptive load balancing, to reduce the risk of data loss, and reduce the cost of installation, operation and maintenance.
