PCIe 2.0 x8 | Intel 82599 | 10G | SFP+ | Dual-port

LREC9802BF-2SFP+

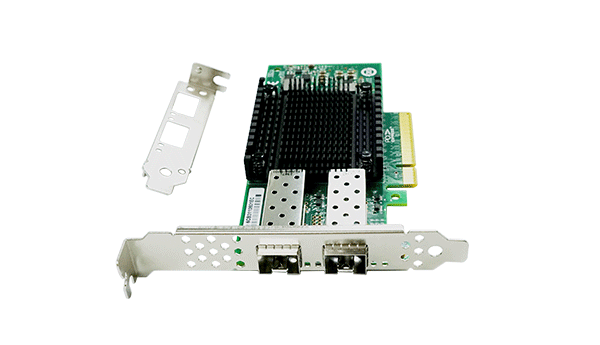

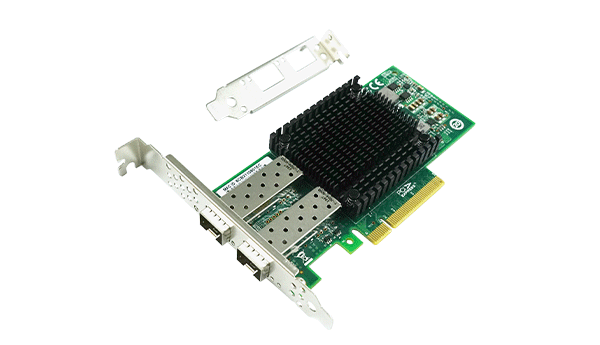

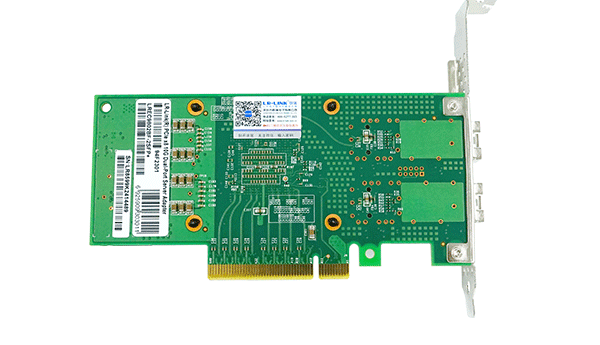

PCIe x8 Dual-port 10G SFP+ Fiber Server Adapter (Intel 82599)

Dual Port 10GbE Adapters

PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes

Industry standard SFP+ fiber port

PXE,iSCSI boot

Network Virtualization

Support IEEE 802.1Q VLAN

Low profile and full-height bracket

LREC9802BF-2SFP+

PDF 706.51KB

Download

More Support

Overview Specifications Driver Related products

Overview

LREC9801BF-SFP+/ LREC9802BF-2SFP+ is a PcIe x8 2.0 10Gbps Single/Dual Port Ethernet Fiber Server Adapter based on Intel 82599 Chipset. The design of this server adapter card is mainly for servers and high-end devices.

The Server Adapter LREC9801BF-SFP+/ LREC9802BF-2SFP+ Provides a number of hardware optimization features including I/O virtualization, and supports a unified network, transforming the data center with outstanding reliability, scalability, and mobility.

LR-LINK PCIe x8 Quad-port 10G SFP+ Ethernet Server Adapter: LREC9804BF-4SFP+

Specifications

Controller	Intel 82599EN/ES
Transmission rate per port	10GbE
Network Standard Physical Layer Interfaces	10GBASE-SR, 10GBASE-LR,10G SFP+ Coppe,
Network Standard Physical Layer Interfaces	10G SFP+ DAC, 10G SFP+ AOC
Operating Temperature	0°C to55 °C (32 °F to 131°F)
Network Virtualization	FCoe, DPDK
LED Indicators OPERATION	Link/Activity LED: off = No Link; on = Link;GreenBlinking = Activity
Power supply	PCI Express +12V±8%, +3.3V±9%
Operating System Support	Windows Server 2012 R2/2012 /2008 R2/2008/2003/10/8.1/8/7
	Linux kernel 2.6.30 or greater (x86_64) (w/ SR-IOV support) /FreeBSD 7.2 or laster
	Linux RHEL 5.6/6.x /SLES 11 SP1/SLES 10 SP4 /OS Independent
	DOS NDIS 2/ODI / EFI 1.1/UEFI 2.1/ VMware® Workstation/Vmware ESX 4.02

Driver

File name	For OS	Version	Upload time
ix-3.3.38.tar.gz	FreeBSD	3.3.38	2024-08-15
ixgbe-5.20.10.tar.gz	Linux	5.20.10	2024-08-15
Release_28.2.zip	OS Independent	v28.2	2024-07-19
