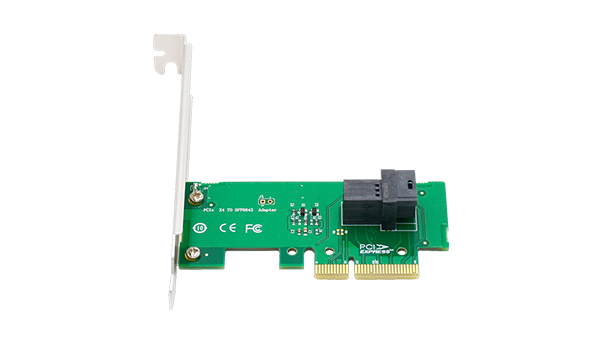

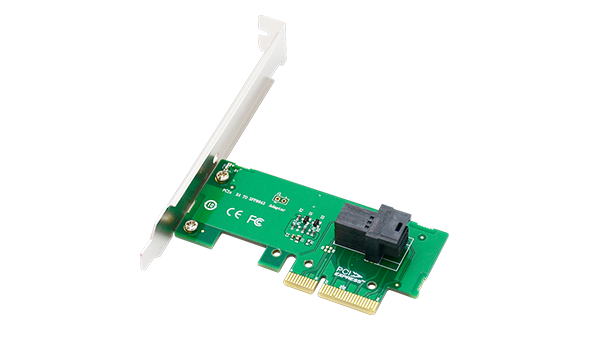

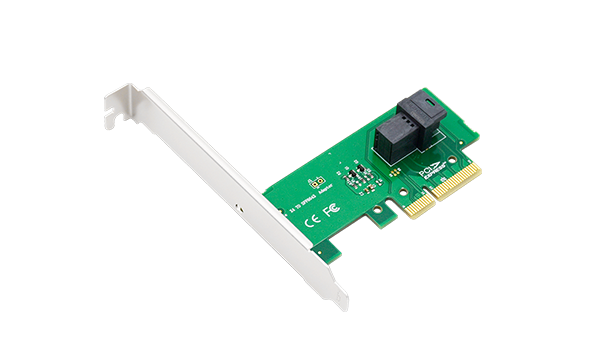

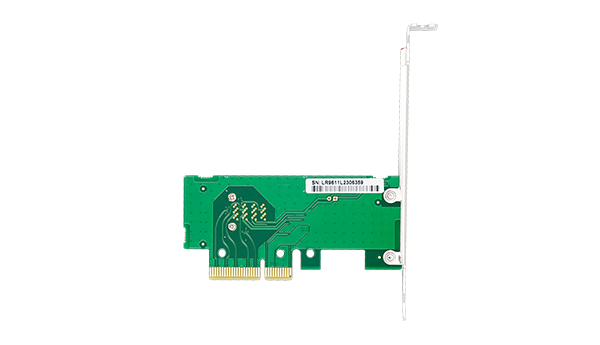

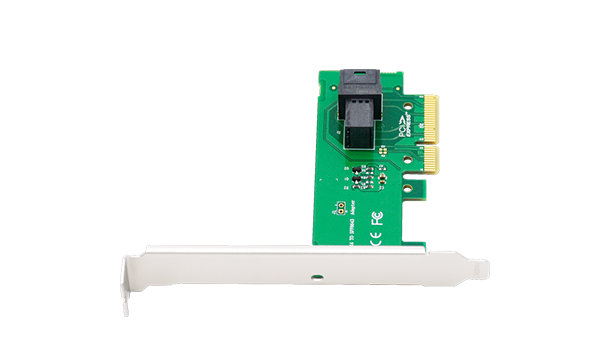

LRNV9611 PCI Express x4 to SFF-8643 Adapter for PCIe NVMe U.2 SSD

This SFF-8643 U.2 to PCIe 4x adapter converts the PCIe interface on the motherboard into a U.2 or connect 2.5" NVMe U. 2 (SFF-8639) SSD to the PCIe interface of the motherboard via the SFF-8643 to the SFF-8639 cable.The U.2 SSD could in loaded onto a backplane that has the SFF-8643 connector to interface with Adapter, allowing the U.2 SSD to be used like a drive cartridge.

LR-LINK Expansion Solution PCIe x16 4-port NVMe Switch Adapter: LRNV9F48

Features

PCI Express 3.0 x4 lane host adapter

Allow 2.5" NVMe U.2 (SFF-8639) SSD to connect to system via SFF-8643 cable

Add an enterprise-class PCIe NVMe 2.5 in. U.2 SSD capability to your PC or server

Compatible with PCIe 3.0 and PCIe 2.0 motherboards

Comes with full-profile bracket (installed) and low-profile bracket

No drivers required for this converter

Fully RoHS Compliant

Operating system support:   Windows 7/8/8. 1/10 of 64 - bit      UEFI version 2.3.1 or above
