PCIe 3.0 x 8 | M.2 | Dual-port | PLX 8747 | Switch Adapter

LRNV9547LP-2I

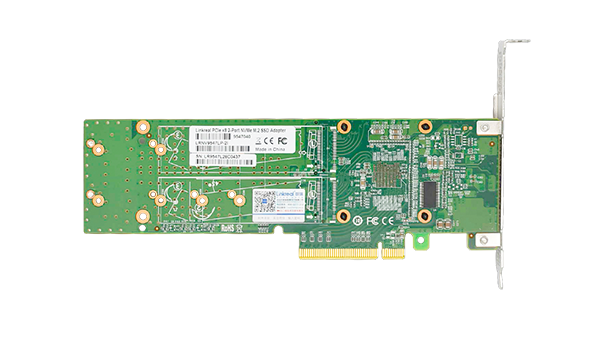

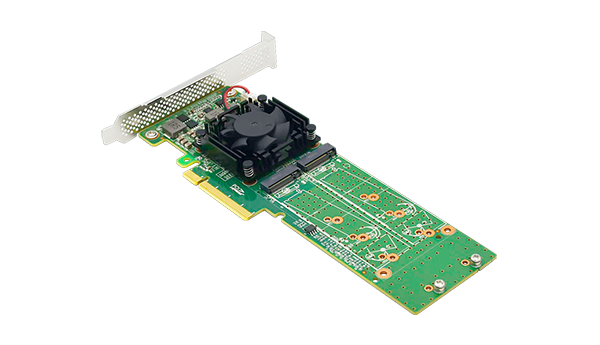

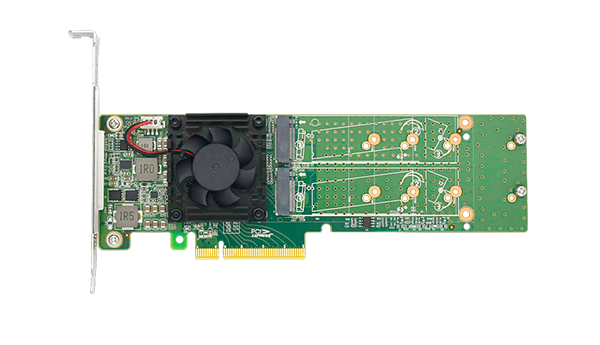

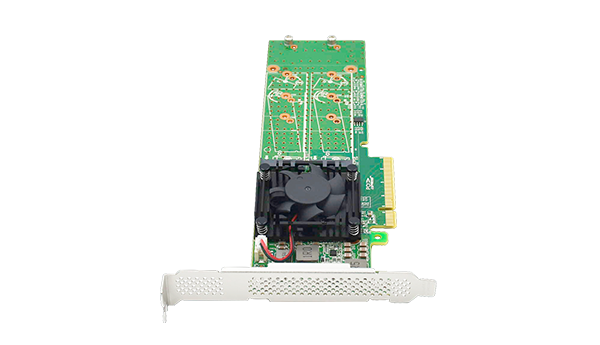

LRNV9547LP-2I PCI Express x 8 to Dual M.2 NVMe SSD Switch Adapter

Product Model:LRNV9547LP-2I

Product Name:PCIe 3.0 x8 to Dual M.2 NVMe SSD Adapter

Chipset: PLX 8747

Interface Type:2*M.2 Connectors

Support Equipment: 2*M.2 NVMe SSD for 2242,2260,2280 and 22110mm

Host Bus Type: PCIe 3.0 x 8

Download

Overview

Product Description

Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0).

Compliant with PCI Power Manament Spec, r1.2.

Microsoft Vista Compliant.

Supports Access Control Services.

High Performance. Non-blocking switch fabric, Full line rate on all ports.

This card does not rely on PCIe bifurcation supported by CPU or PCH

Independent, Stand Alone NVMe SSD Solution

Supports Windows 10 & Later, Windows 2016 Server, & Linux Kernel 3.3 & later

Supports Full-height Bracket and Low-Profile Bracket

LR-LINK PCI Express x16 to Quad M.2 NVMe SSD Switch Adapter: LRNV9547L-4I

Specifications

HARDWARE
Model	LRNV9547LP-2I
Number of Device	2 Internal
I/O Controller	PEX8747
Host Bus Type	PCI Express 3.0 x8
Compatible Device Type	2 NVMe M.2 SSD
Interface	2*M.2
CONNECTOR(S)
Device Connectors	2* M.2 Connectors
Host Connectors	PCIe x8
Operating System
OS supported list	Windows,Red Hat Linux,Cont0S,VMware ESXi;Ubuntu Linux,
ENVIRONMENTAL
Humidity	15% – 90%
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Dimension	67.9mm x200mm
Product Weight	178g
WARRANTY INFORMATION
Warranty	2 Years
WHAT'S IN THE BOX
Included in Package	1- PCI Express x8 to Dual NVMe M.2 SSD Switch Adapter
	1- Full-height Bracket (installed)
	1-Low Profile Bracket
	2- Screws and nuts for SSD
